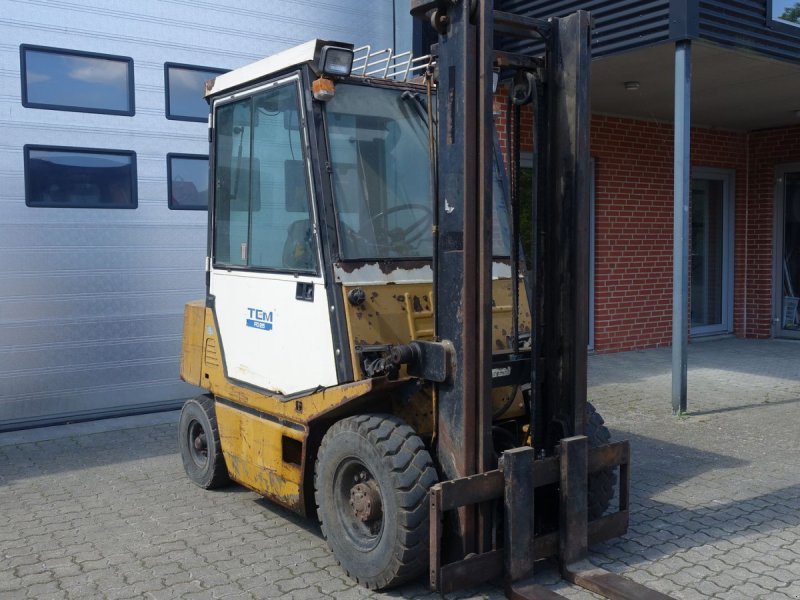

TCM FCB25A4
Series: TCM Forklift
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a forklift truck, the TCM FCB25A4 belongs to the TCM Forklift series. The engine produces 26.5 kW.
Top speed is 16 km/h. Operating weight is 3,164 kg. It carries 2,268 kg.
Within the range, rated power spans from 26.5 to 38.7 kW; with 26.5 kW, the FCB25A4 sits at the bottom end. The next one up is the HD-15-DF with 38.7 kW.
TCM Forklift – a modular code built from type, tyres, engine and gearbox
Japanese manufacturer TCM assembles its type code from several building blocks: an initial letter marks the power source — "D" for diesel, "G" for gasoline/LPG — followed by a letter for the tyres, such as "C" for solid tyres. The next number gives the capacity class, followed by a letter for the engine supplier (e.g. "N" for Nissan-built engines, "Z" for Isuzu) and sometimes a code for the transmission type.
Read on 3 more paragraphs
The database also lists the CG and HD sub-series, marking TCM's compact LPG line and its heavier diesel line respectively — visible in models such as CG15, CG18, HD15 and HD18, plus their long-fork variants CG15L and HG18L.
Models recorded here span capacities of 1,360.8 to 42,000 kg, lift heights of 3,000 to 9,560 mm, and displacement of 2,064 to 13,742 cm³ across 4 to 6 cylinders; lighter series sit around 26.5 to 38.7 kW of engine power. The bucket thus covers everything from compact warehouse trucks to heavy container/heavy-load forklifts.
For a used TCM, the drive axle and mast condition deserve close attention, as does checking the engine-supplier letter against the unit actually fitted — on older machines, engines were sometimes swapped for a different make during repairs, which complicates sourcing parts and servicing.
Sources: Kennwerte der Modelle TCM Forklift, - Intella Parts: TCM-Modellcode entschlüsselt
Technical data
Engine
| Fuel | Elektrisch (Batterie)correct |
|---|---|
| Power | 26.5 kWcorrect |
Dimensions and weights
| Width | 1,050 mmcorrect |
|---|---|
| Unladen weight | 3,163.8 kgcorrect |
Drivetrain and chassis
| Tyre type | cushion tyrescorrect |
|---|---|
| Top speed | 16.1 km/hcorrect |
| Turning radius | 2,050 mmcorrect |
Working data
| Lifting capacity | 2,268 kgcorrect |
|---|---|
| Lift height | 3,300 mmcorrect |
Other data
| Front wheels | 2correct |
|---|---|
| Lift speed | 28.3 m/mincorrect |
| Load centre | 609.6 mmcorrect |
| Rear wheels | 2correct |
Where this model stands
Power-to-weight ratio: 8.4 kW/t (26 kW / 3.2 t)
Stronger than 57% of the forklift trucks in the register — out of 316 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the TCM FCB25A4 have?
The TCM FCB25A4 delivers 26.5 kW.
How much does the TCM FCB25A4 weigh?
The unladen weight is 3,164 kg.
How fast does the TCM FCB25A4 go?
Top speed is 16.1 km/h.
What is the load capacity of the TCM FCB25A4?
Load capacity is 2,268 kg at a 610 mm load centre, lift height 3,300 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
