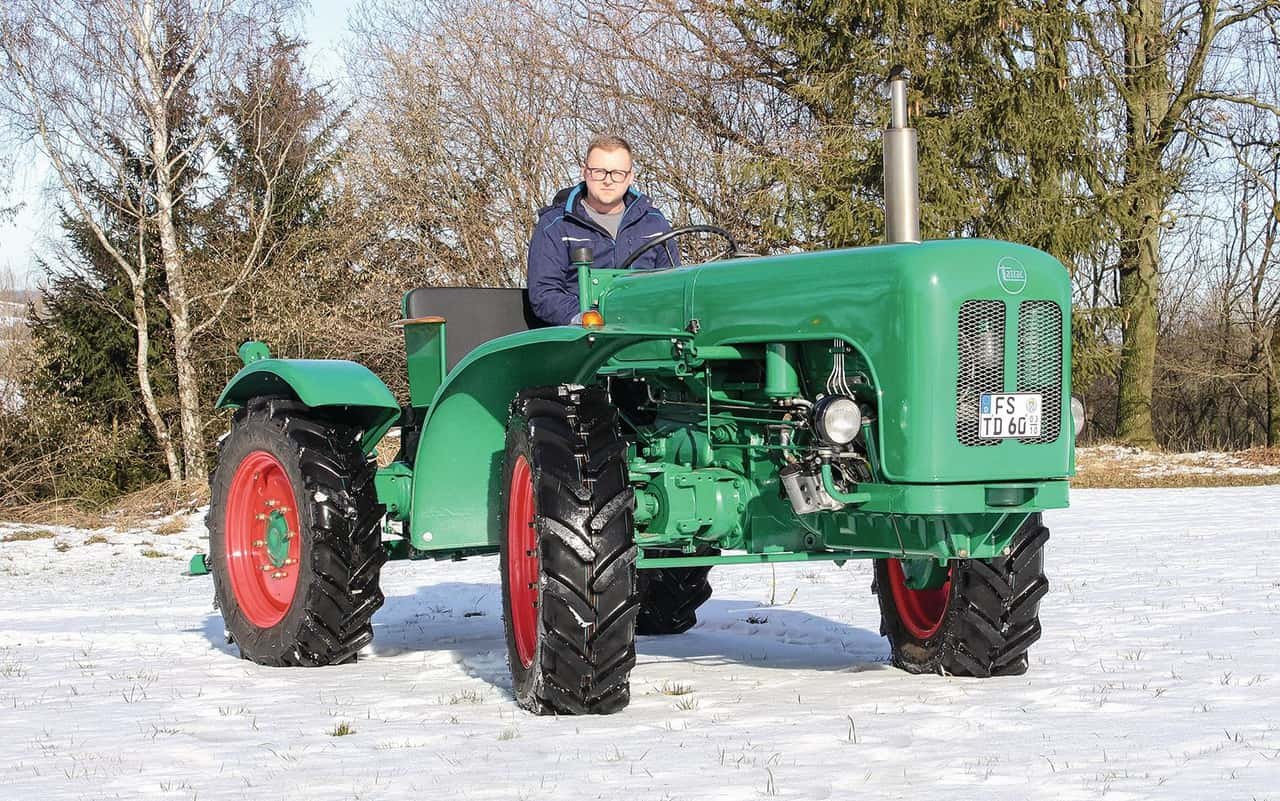

Tatrac TD 60

Built: 1963–1964 · Series: TD

More machines from model year 1963

Source: https://www.profi.de/panorama/youngtimer/chronik-der-systems

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TD 60 from Tatrac is part of the TD series. Production: 1963–1964. The engine delivers 52 hp (38 kW), has 4 cylinders, with a displacement of 3,400 cm³. Torque is 177 Nm. Rated speed is 2,300 rpm. The machine is 3,890 mm long, 1,800 mm wide and 1,550 mm high. The unladen weight is 2,300 kg. The wheelbase measures 2,000 mm. Ground clearance is 525 mm. Top speed is 20 km/h. Transmission: shuttle transmission 8/8. The engine is air-cooled. Tyres: front 11.2/10 - 24 AS, rear 11.2/10 - 24 AS. The fuel is diesel. The bore measures 95 mm. The stroke is 120 mm. The compression ratio is 20:1. Maximum torque is reached at 1,700 rpm. Construction: Block. The gearbox offers 8 forward gears. There are also 8 reverse gears. Around ca. 300 units were built. Rated output within this group ranges from 2 to 760 hp; the TD 60 sits at the bottom of that range with 52 hp. Its immediate neighbours are the M4800SU below it with 51.7 hp and the Power Major above it with 52.5 hp. Rated output within this group ranges from 5 to 585 hp; here the TD 60 sits at the bottom of that range with 52 hp.

TD 60 (TD series) by Tatrac: air-cooled four-cylinder diesel engine rated at 38 kW (52 hp) at 2,300 rpm, built in 1963 and 1964.

The TD 60 belongs to the class of standard tractors with an air-cooled diesel engine, a design offered by a number of smaller manufacturers in the 1960s alongside the more common water-cooled construction. Air cooling was seen at the time as a rugged, low-maintenance alternative that avoided the need for cooling-water plumbing.

Read on 3 more paragraphs

The TD 60 is powered by an air-cooled four-cylinder diesel engine of 3,400 cm³ displacement, delivering 38 kW (52 hp) and 177 Nm of torque at 2,300 rpm. At an unladen weight of 2,300 kg, a wheelbase of 2,000 mm and a top speed of 20 km/h, the machine was built for field work rather than road travel, at a ratio of roughly 60 kg of weight per kW.

Air-cooled four-cylinder engines of this kind, similar to those also common at Deutz and Hatz, tolerate dust and changing outside temperatures well, since there is no cooling water to freeze or leak. The 20 km/h top speed limit shows that the TD 60 was built mainly for field work on small to medium-sized plots, where low road speed was not a real drawback.

On a used TD 60, the condition of the cooling fins on the cylinder block matters most, since with air cooling they must be free of dirt and damage to carry heat away effectively. The clutch and brake system should also be thoroughly checked given the machine's age.

Sources: SpecCodex-Register: Kennwerte des Modells TD 60

Technical data

Engine

Fueldieselcorrect
Power52 hp (38 kW)correct
Rated speed2,300 rpmcorrect
Torque177 Nmcorrect
Speed at max. torque1,700 rpmcorrect
Cylinders4correct
Displacement3,400 cm³correct
Bore95 mmcorrect
Stroke120 mmcorrect
Compression ratio20correct
Coolingair-cooledcorrect

Dimensions and weights

Length3,890 mmcorrect
Width1,800 mmcorrect
Height1,550 mmcorrect
Wheelbase2,000 mmcorrect
Ground clearance525 mmcorrect
Unladen weight2,300 kgcorrect

Drivetrain and chassis

Drivefour-wheel drivecorrect
Gearboxshuttle transmission 8/8correct
Forward gears8correct
Reverse gears8correct
Front tyres11.2/10 - 24 AScorrect
Rear tyres11.2/10 - 24 AScorrect
Top speed20 km/hcorrect

Origin and approval

ConstructionBlockcorrect
Units builtca. 300correct

Where this model stands

Power-to-weight ratio: 16.5 kW/t (38 kW / 2.3 t)

Power class: Universal (40–100 hp)

Stronger than 36% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Tatrac TD 60 have?

The Tatrac TD 60 delivers 52 hp.

How much does the Tatrac TD 60 weigh?

The unladen weight is 2,300 kg.

What engine does the Tatrac TD 60 have?

4 cylinders, 3,400 cm³ displacement, Diesel.

How fast does the Tatrac TD 60 go?

Top speed is 20 km/h.

What are the dimensions of the Tatrac TD 60?

3,890 mm × 1,800 mm × 1,550 mm.

When was the Tatrac TD 60 built?

Production years: 1963–1964.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
