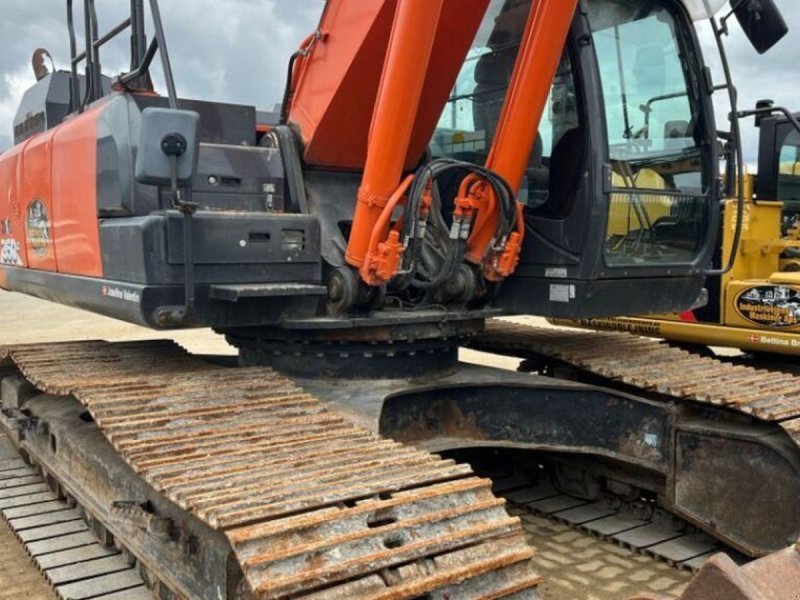

Tata Hitachi ZAXIS450LCH – specifications
Series: Tata Hitachi Hydraulic Excavator
The ZAXIS450LCH from Tata Hitachi is part of the Tata Hitachi Hydraulic Excavator series. The engine delivers 235 kW, has 6 cylinders, with a displacement of 15,682.4 cm³. Torque is 1,275 Nm. Rated speed is 1,800 rpm. The unladen weight is 47,100 kg. Ground clearance is 740.7 mm. The tank holds 650.3 litres. Maximum torque is reached at 1,500 rpm. The pump delivers 720.4 l/min. The hydraulic tank holds 80.3 litres. Working pressure is 343 bar. The cooling system holds 61.3 litres. The oil fill is 55.3 litres. The electrical system runs on 24 V. The engine fitted is the AA-6WG 1TQA. The Tata Hitachi Hydraulic Excavator series covers 27 models. Rated output within it ranges from 59.7 to 397 kW; the ZAXIS450LCH sits in the middle of that range with 235 kW. Its immediate neighbours are the ZAXIS370MTH below it with 184 kW and the ZAXIS470LCH above it with 260 kW. Unladen weight within it ranges from 10,700 to 84,000 kg; here the ZAXIS450LCH sits in the middle of that range with 47,100 kg. 41 Tata Hitachi models across 8 series are on record.
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Tata Hitachi excavators EX and Zaxis – the Indian joint venture since 1984: ZAXIS 110 to ZAXIS 870, Isuzu engines, H and K as market variants, 60 to 397 kW
Tata Hitachi is the joint venture of India's Tata group with Hitachi Construction Machinery, founded in 1984 as Telcon in Jamshedpur and today, with plants in Kharagpur and Dharwad, India's largest excavator maker. The machines are Hitachi designs built for the Indian market and export to South Asia and Africa: the older EX110, EX200 and EX350 correspond to the Hitachi EX generation of the 1990s, the ZAXIS models from 110 to 870 to the Zaxis range from 2001. The number gives the weight class in hundreds of kilograms – ZAXIS 210 about 21 t, ZAXIS 470 about 47 t, ZAXIS 870 about 87 t – LC the long undercarriage with larger footprint, H and K version variants for quarry and earthmoving duty on the Indian market, MTH the mining version.
Read on 3 more paragraphs
The register lists 27 versions with 59.7 to 397 kW from Isuzu engines of 4,330 to 15,682 cm³ – 4BG1 and 6BG1 in the small and medium, 6HK1 and 6WG1 in the big models, a Tata 697 engine in the EX110 – torque from 289 to 2,250 Nm at 1,800 to 2,300 rpm and operating weights from 10,700 to 84,000 kg.
The Isuzu engines and Hitachi hydraulics are identical to the Japanese Zaxis; the difference lies in the equipment, laid out for heat, dust and simpler maintenance, and in the price. The ZAXIS 870 at 84 t is the mining machine of the Jharkhand coalfields.
Used Tata Hitachi excavators are rare outside South Asia; when buying, operating hours, play in slew ring and boom pins, undercarriage condition, leak-free hydraulics and parts supply, which runs through both networks for Isuzu engines and Hitachi hydraulics, are what count.
Sources: SpecCodex register, model data: Tata Hitachi Hydraulikbagger, Tata Hitachi Construction Machinery (manufacturer)
Technical data
Engine
| Engine model | AA-6WG 1TQAcorrect |
|---|---|
| Power | 235 kWcorrect |
| Rated speed | 1,800 rpmcorrect |
| Torque | 1,275 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 15,682.4 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 61.3 lcorrect |
| Engine oil capacity | 55.3 lcorrect |
Dimensions and weights
| Ground clearance | 740.7 mmcorrect |
|---|---|
| Unladen weight | 47,100 kgcorrect |
Working data
| Pump flow | 720.4 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 80.3 lcorrect |
| Hydraulic pressure | 343 barcorrect |
| Fuel tank capacity | 650.3 lcorrect |
Other data
| Cab height | 3,371.1 mmcorrect |
|---|---|
| System voltage | 24 Vcorrect |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 5 kW/t (235 kW / 47.1 t)
Stronger than 87% of the excavators & compaction in the register — out of 1,650 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
