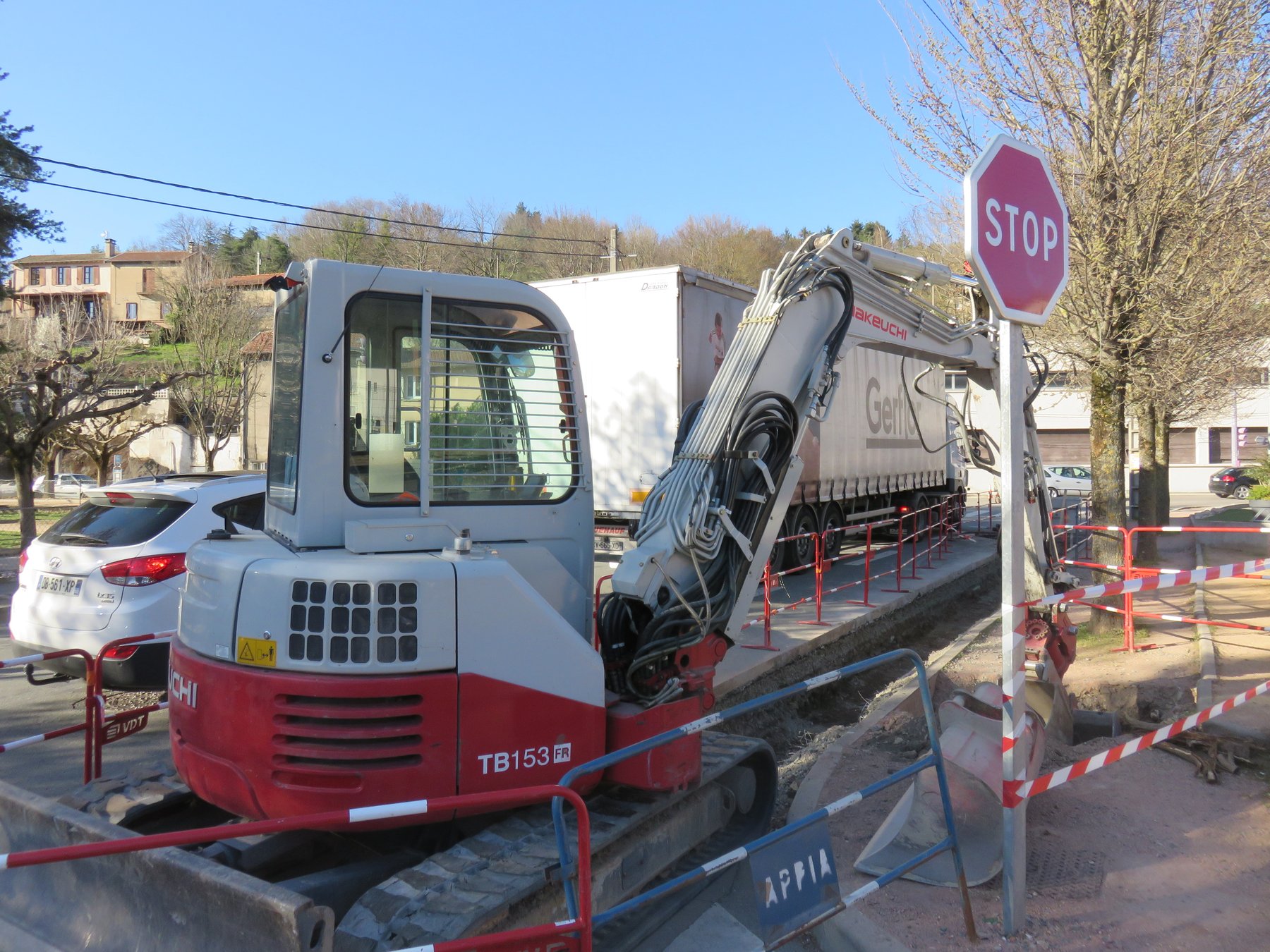

Takeuchi TB153FR

Series: Takeuchi Midi Excavator

Source: https://commons.wikimedia.org/w/index.php?curid=77915728 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Takeuchi TB153FR belongs to the Takeuchi Midi Excavator series. The engine delivers 38.7 hp (28.5 kW), has 4 cylinders, with a displacement of 2,195.9 cm³. Torque is 145.1 Nm. Rated speed is 2,300 rpm. The unladen weight is 5,647.2 kg. Ground clearance is 298.7 mm. The tank holds 60.2 litres. Maximum torque is reached at 1,400 rpm. The pump delivers 112 l/min. The hydraulic tank holds 110.2 litres. Working pressure is 206.8 bar. The cooling system holds 8.3 litres. The oil fill is 7.6 litres. The electrical system runs on 12 V. The engine fitted is the 4TNV88-PTBZ1. The Takeuchi Midi Excavator series covers 8 models. Rated output within it ranges from 37.9 to 61.3 hp; the TB153FR sits at the bottom of that range with 38.7 hp. Its immediate neighbours are the TB250 below it with 38.6 hp and the TB045 above it with 44 hp. 48 Takeuchi models across 8 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model4TNV88-PTBZ1correct
Power38.7 hp (28.5 kW)correct
Rated speed2,300 rpmcorrect
Torque145.1correct
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement2,195.9 cm³correct
Coolant capacity8.3 lcorrect
Engine oil capacity7.6 lcorrect

Dimensions and weights

Ground clearance298.7correct
Unladen weight5,647.2 kgcorrect

Drivetrain and chassis

System voltage12 Vcorrect

Working data

Pump flow112 l/mincorrect
Hydraulic oil capacity110.2 lcorrect
Hydraulic pressure206.8 barcorrect
Fuel tank capacity60.2 lcorrect

Other data

Height2,566.4correct

Where this model stands

Power-to-weight ratio: 5 kW/t (28 kW / 5.6 t)

Stronger than 3% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Takeuchi TB153FR have?

The Takeuchi TB153FR delivers 38.7 hp.

How much does the Takeuchi TB153FR weigh?

The unladen weight is 5,647 kg.

What engine does the Takeuchi TB153FR have?

4 cylinders, 2,196 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
