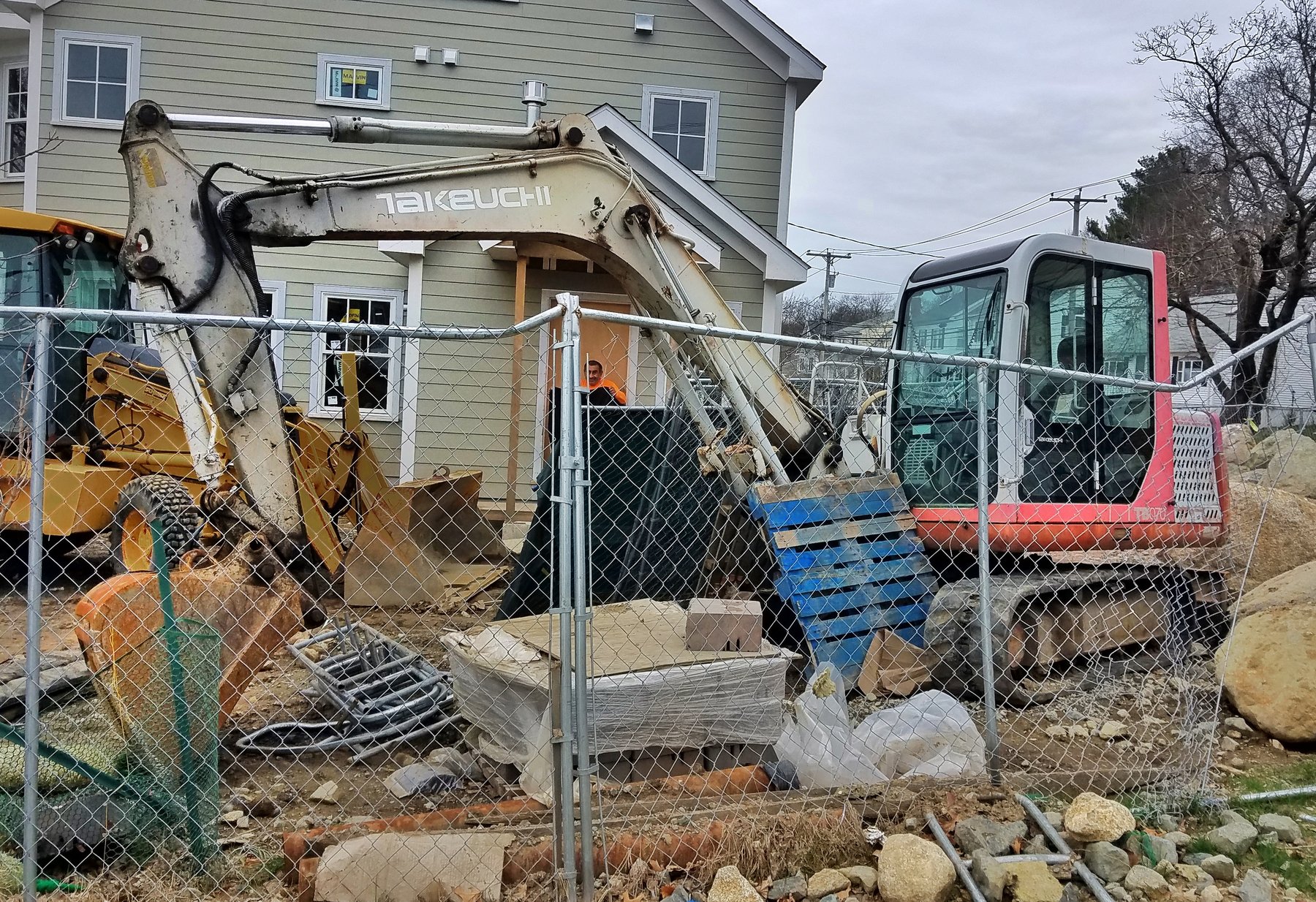

Takeuchi TB070

Series: Takeuchi Midi Excavator

Source: https://commons.wikimedia.org/w/index.php?curid=116885941 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TB070 from Takeuchi is part of the Takeuchi Midi Excavator series. The engine delivers 56.8 hp (41.8 kW), has 4 cylinders, with a displacement of 2,949.7 cm³. Torque is 187.1 Nm. Rated speed is 2,300 rpm. The unladen weight is 7,280.2 kg. Ground clearance is 356.6 mm. The tank holds 115.8 litres. Maximum torque is reached at 1,600 rpm. The pump delivers 136.3 l/min. The hydraulic tank holds 132.1 litres. Working pressure is 274.5 bar. The cooling system holds 48.1 litres. The oil fill is 43.9 litres. The engine fitted is the BD3004. The Takeuchi Midi Excavator series covers 8 models. Rated output within it ranges from 37.9 to 61.3 hp; the TB070 sits in the upper part of that range with 56.8 hp. Its immediate neighbours are the TB045 below it with 44 hp and the TB175 above it with 59.1 hp. 48 Takeuchi models across 8 series are on record. The model is listed under Excavators & compaction. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine modelBD3004correct
Power56.8 hp (41.8 kW)correct
Rated speed2,300 rpmcorrect
Torque187.1correct
Speed at max. torque1,600 rpmcorrect
Cylinders4correct
Displacement2,949.7 cm³correct
Coolant capacity48.1 lcorrect
Engine oil capacity43.9 lcorrect

Dimensions and weights

Ground clearance356.6correct
Unladen weight7,280.2 kgcorrect

Working data

Pump flow136.3 l/mincorrect
Hydraulic oil capacity132.1 lcorrect
Hydraulic pressure274.5 barcorrect
Fuel tank capacity115.8 lcorrect

Other data

Height2,566.4correct

Where this model stands

Power-to-weight ratio: 5.7 kW/t (42 kW / 7.3 t)

Stronger than 12% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Takeuchi TB070 have?

The Takeuchi TB070 delivers 56.8 hp.

How much does the Takeuchi TB070 weigh?

The unladen weight is 7,280 kg.

What engine does the Takeuchi TB070 have?

4 cylinders, 2,950 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
