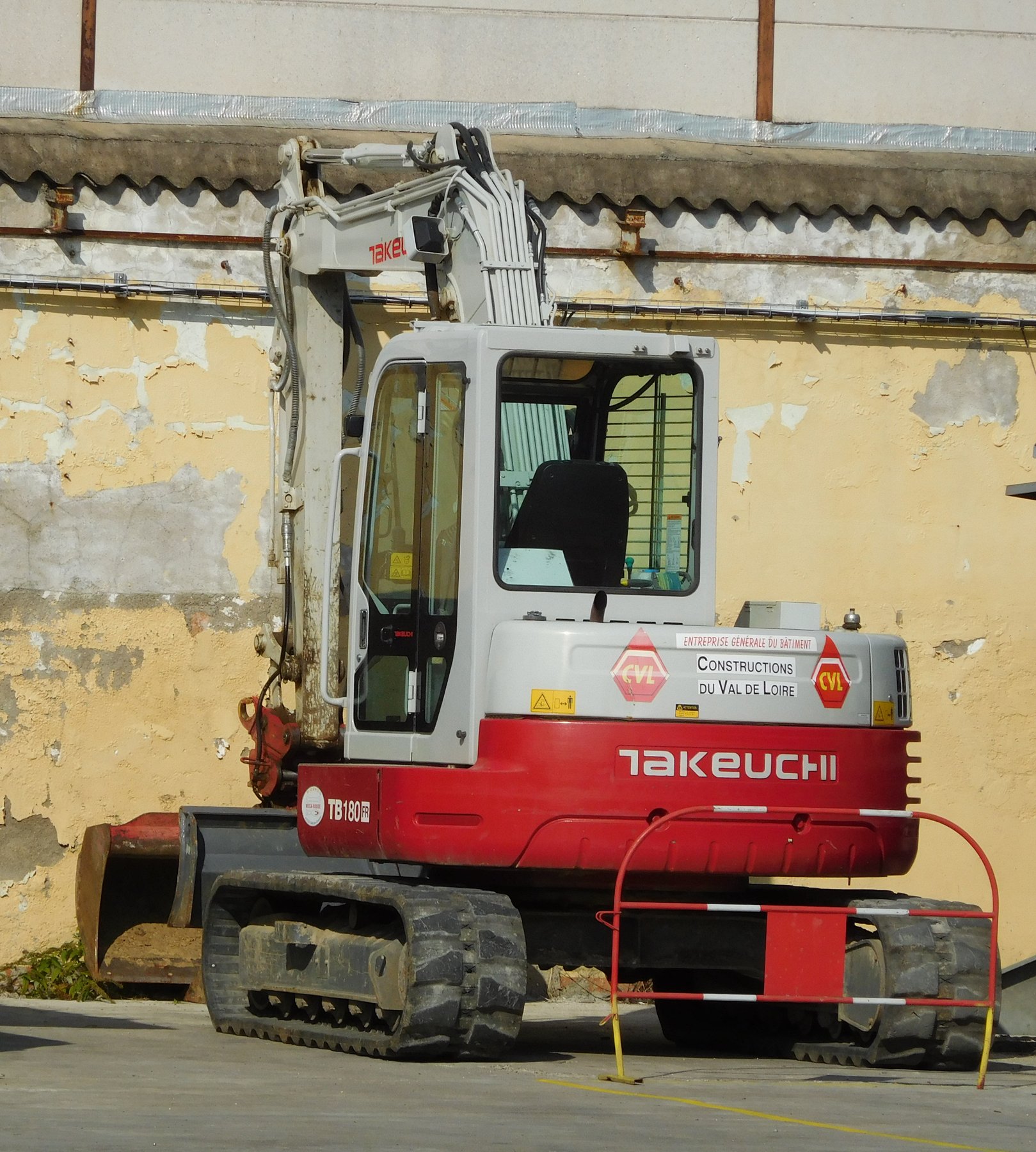

Takeuchi TB180FR

Series: Takeuchi Midi Excavator

Source: https://commons.wikimedia.org/w/index.php?curid=43919743 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TB180FR from Takeuchi is part of the Takeuchi Midi Excavator series. The engine delivers 61.3 hp (45.1 kW), has 4 cylinders, with a displacement of 3,310.2 cm³. Torque is 249.7 Nm. Rated speed is 2,200 rpm. The unladen weight is 8,332.5 kg. Ground clearance is 356.6 mm. The tank holds 92 litres. Maximum torque is reached at 1,320 rpm. The pump delivers 131.7 l/min. The hydraulic tank holds 70.8 litres. Working pressure is 275 bar. The cooling system holds 2.6 litres. The oil fill is 2.6 litres. The electrical system runs on 12 V. The engine fitted is the 4TNV98. The Takeuchi Midi Excavator series covers 8 models. Rated output within it ranges from 37.9 to 61.3 hp; the TB180FR sits at the top of that range with 61.3 hp. Its immediate neighbours are the TB175 below it with 59.1 hp. 48 Takeuchi models across 8 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model4TNV98correct
Power61.3 hp (45.1 kW)correct
Rated speed2,200 rpmcorrect
Torque249.7correct
Speed at max. torque1,320 rpmcorrect
Cylinders4correct
Displacement3,310.2 cm³correct
Coolant capacity2.6 lcorrect
Engine oil capacity2.6 lcorrect

Dimensions and weights

Ground clearance356.6correct
Unladen weight8,332.5 kgcorrect

Drivetrain and chassis

System voltage12 Vcorrect

Working data

Pump flow131.7 l/mincorrect
Hydraulic oil capacity70.8 lcorrect
Hydraulic pressure275 barcorrect
Fuel tank capacity92 lcorrect

Other data

Height2,767.6correct

Where this model stands

Power-to-weight ratio: 5.4 kW/t (45 kW / 8.3 t)

Stronger than 15% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Takeuchi TB180FR have?

The Takeuchi TB180FR delivers 61.3 hp.

How much does the Takeuchi TB180FR weigh?

The unladen weight is 8,332 kg.

What engine does the Takeuchi TB180FR have?

4 cylinders, 3,310 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
