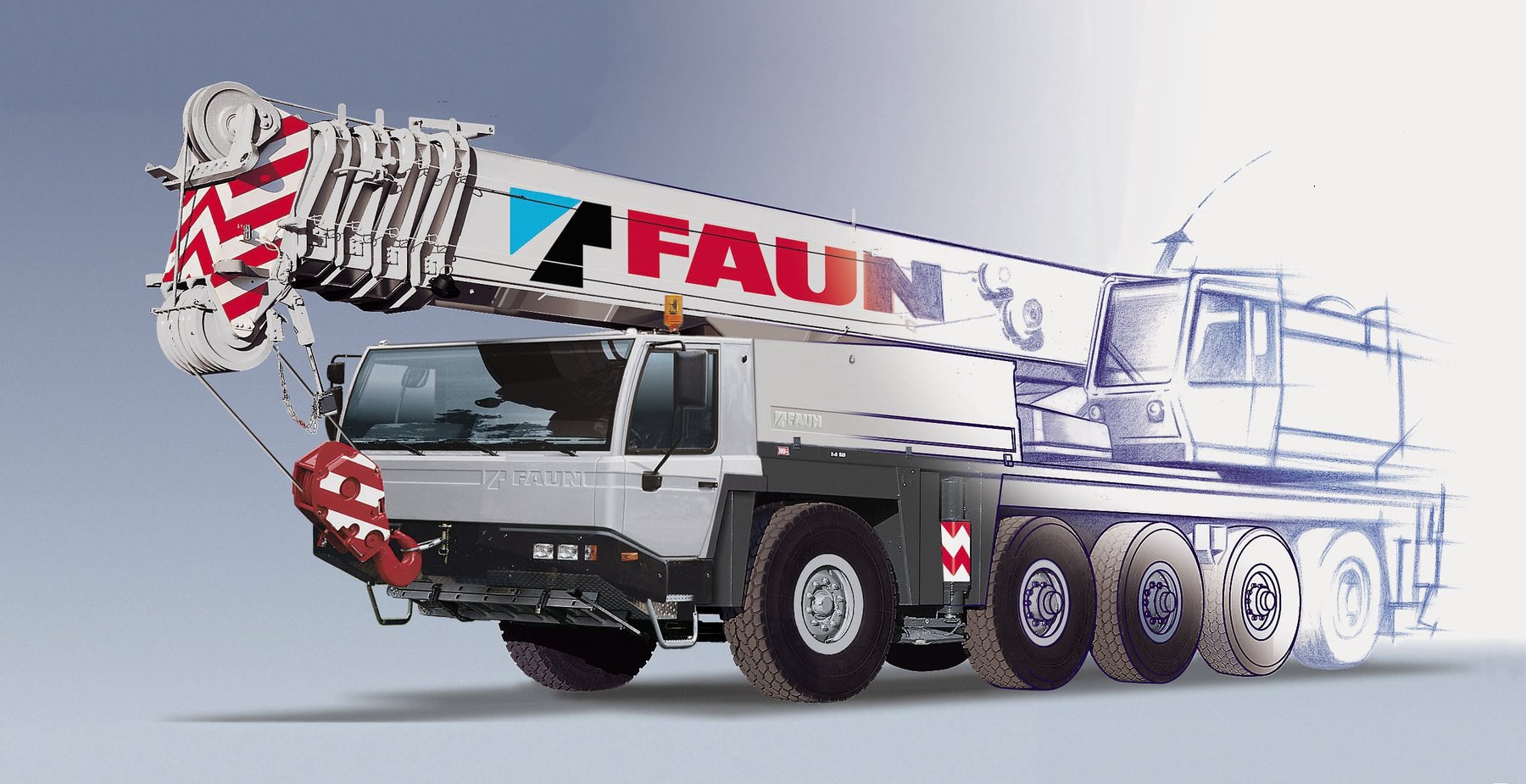

Tadano Faun ATF
Built: 2017-2018 · Series: ATF
More machines from model year 2017
Tadano Faun ATF – all-terrain cranes built in Germany: six- and eight-cylinder engines from 260 to 480 kW, lifting chassis at gross weights from 36 to 86.4 tonnes
ATF stands for All Terrain Faun and denotes Tadano Faun's mobile-crane range, tracing back to the crane maker Faun, founded in 1863 in Lauf an der Pegnitz; after its takeover by the Japanese Tadano group in 2007, the plant has traded as Tadano Faun. Model designations such as ATF 220G-5 state lifting capacity in tonnes (220 t) and generation (G-5), while EM4 marks a version with a four-axle carrier for road transport without a special permit.
Read on 3 more paragraphs
The register lists 13 versions with six- and eight-cylinder engines from 260 to 480 kW and 7,201 to 15,928 cm³, kerb weights from 35,750 to 71,910 kg, gross vehicle weights from 36,000 to 86,400 kg, lengths from 11,510 to 17,900 mm and widths from 2,550 to 3,000 mm.
All-terrain cranes such as the ATF range combine road registration with full off-road capability and are used on construction sites, in plant engineering and for wind-turbine erection; Tadano Faun's main rival there is Liebherr, whose plant in Ehingen lies only a few hundred kilometres away, alongside Grove.
When buying used, check operating hours and service records for the hoist and telescopic boom, the condition of the outrigger cylinders, hydraulic system tightness, and on multi-axle carriers tyre condition and axle steering; the electronic load-moment limiter is worth checking for stored fault codes. Parts and service run through the Tadano service network.
Sources: SpecCodex register, model data: Tadano Faun ATF, Tadano (manufacturer)
Technical data
Engine
| Power | 390 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 12,809 cm³correct |
Dimensions and weights
| Length | 14,900 mmcorrect |
|---|---|
| Width | 2,750 mmcorrect |
| Wheelbase | 7,910 mmcorrect |
| Unladen weight | 59,750 kgcorrect |
| Gross vehicle weight | 60,000 kgcorrect |
Drivetrain and chassis
| Wheels | 10correct |
|---|---|
| Top speed | 85 km/hcorrect |
Where this model stands
Power-to-weight ratio: 6.5 kW/t (390 kW / 59.8 t)
Stronger than 83% of the mobile & rough terrain cranes in the register — out of 723 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Tadano Faun ATF have?
The Tadano Faun ATF delivers 390 kW.
How much does the Tadano Faun ATF weigh?
The unladen weight is 59,750 kg.
What is the gross vehicle weight of the Tadano Faun ATF?
60,000 kg.
What engine does the Tadano Faun ATF have?
6 cylinders, 12,809 cm³ displacement.
How fast does the Tadano Faun ATF go?
Top speed is 85 km/h.
What are the dimensions of the Tadano Faun ATF?
14,900 mm × 2,750 mm.
When was the Tadano Faun ATF built?
Production years: 2017-2018.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
