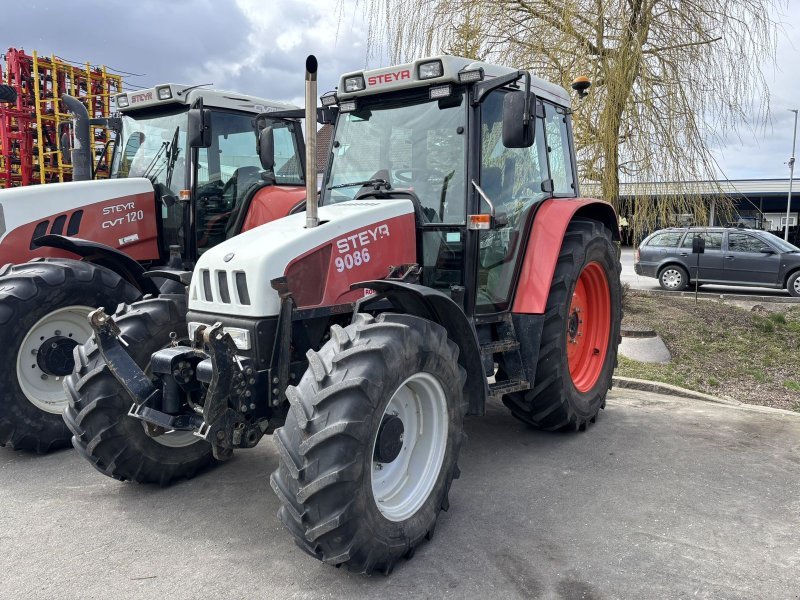

Steyr (SLT) 9086 (a)
Built: 1993–1995 · Series: 9000er-Baureihe
More machines from model year 1993
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Steyr 9000 range: collective page of tractors 9078, 9086 and 9094 from the 1990s, four-cylinder 4,156 cm³ diesels, 57 to 69 kW, RME-approved
The 9000 range from Steyr, dating from the 1990s, comprises three versions in the register – the 9078, 9086 and 9094 – whose model numbers denote rising power class. Like the rest of the Steyr line-up, these tractors were built at the Austrian plant in St. Valentin. At the time, the range belonged to the mid power segment of the Steyr model line-up, positioned between the smaller and larger series on offer.
Read on 3 more paragraphs
The register lists 3 versions with 57.4 to 69.2 kW from four-cylinder diesel engines of 4,156 cm³, unladen weights of 3,370 to 3,920 kg, lengths of 4,025 to 4,195 mm, widths of 1,873 to 2,063 mm and heights of 2,660 to 2,730 mm, at rated speeds of 2,250 to 2,300 rpm; the engines are approved for both diesel and RME (rapeseed methyl ester).
Tractors in this power class covered classic field work on medium-sized farms in the 1990s and competed with comparable ranges from Fiat, Deutz-Fahr and Massey Ferguson; RME approval already allowed running on the rapeseed-based biodiesel that Austria promoted early on. That early flexibility over fuel made the range attractive to farms already experimenting with home-grown biodiesel.
When buying used, condition of the four-cylinder diesel including injection and cooling — with earlier RME use, particularly the fuel-system seals — plus the gearbox, hydraulics and lift for wear all matter; spare parts run through the Steyr dealer network.
Sources: SpecCodex register, model data: Steyr 9000er, Steyr
Technical data
Engine
| Fuel | Diesel/RMEcorrect |
|---|---|
| Power | 86 hp (63.3 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,156 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,025 mmcorrect |
|---|---|
| Width | 2,063 mmcorrect |
| Height | 2,660 mmcorrect |
| Wheelbase | 2,420 mmcorrect |
| Ground clearance | (A: 440) mmcorrect |
| Unladen weight | 3,530 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/8R, 16V/16R and 32V/16Rcorrect |
| Front tyres | 11.00-16 ASF (A: 14.9 R 24 AS)correct |
| Rear tyres | 18.4.34 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 17.9 kW/t (63 kW / 3.5 t)
Power class: Universal (40–100 hp)
Stronger than 59% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Steyr (SLT) 9086 (a) have?
The Steyr (SLT) 9086 (a) delivers 86 hp.
How much does the Steyr (SLT) 9086 (a) weigh?
The unladen weight is 3,530 kg.
What engine does the Steyr (SLT) 9086 (a) have?
4 cylinders, 4,156 cm³ displacement, Diesel/RME.
How fast does the Steyr (SLT) 9086 (a) go?
Top speed is 30 km/h.
What are the dimensions of the Steyr (SLT) 9086 (a)?
4,025 mm × 2,063 mm × 2,660 mm.
When was the Steyr (SLT) 9086 (a) built?
Production years: 1993–1995.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
