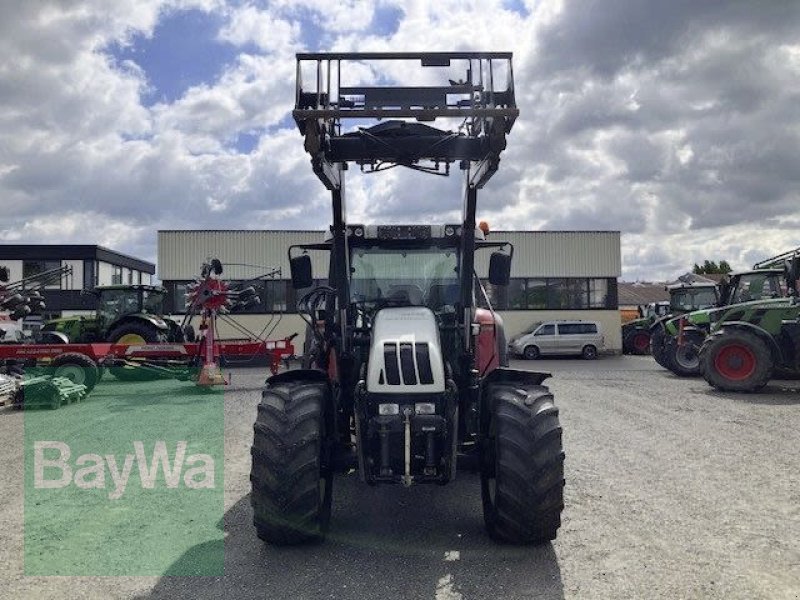

Steyr Case 9200 a
Built: 1997–1999 · Series: 9200er-Baureihe
More machines from model year 1997
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Steyr Case 9200 series – large tractors 9200a, 9220a, 9250a and 9270a, six-cylinder diesels from 140 to 192 kW with over 8.2 litres displacement, consistently supplied with four-wheel drive
The 9200 series sits above the 9100s at the top of the Case-Steyr large tractors from St. Valentin. The 9200a, 9220a, 9250a and 9270a types carry, like the smaller 9100s, the a for four-wheel drive, with the number behind it rising markedly with power; all four models use the same large-displacement six-cylinder engine of around 8.27 litres, its power stages reached through injection and turbocharging. Case and Steyr worked closely together in the 1990s before both brands later merged into the CNH group.
Read on 3 more paragraphs
The register lists four versions here with 139.8 to 192.1 kW from six-cylinder diesel engines with 8,268 to 8,269 cm³ displacement. Rated speed is 2,200 rpm, unladen weight ranges from 7,901 to 8,318 kg with lengths from 5,049 to 5,090 mm, widths from 2,845 to 3,048 mm and heights from 3,017 to 3,077 mm; torque lies between 790 and 1,145 Nm. The engines are approved for diesel or rapeseed oil methyl ester.
With over 190 kW at the top, the 9200 series targeted large arable farms and contractors with heavy tillage equipment and large trailers, a segment in which it competed with the top models from Case IH, Fendt and New Holland.
When buying used, check the condition of the turbocharger and charge-air cooler, tightness of the hydraulic system given the high lift capacities of this class, wear on the clutch and powershift transmission, and on RME operation the condition of the injection system and fuel filters. Parts run through the CNH network for Steyr and Case IH.
Sources: SpecCodex register, model data: Steyr Case 9200er-Baureihe, Steyr (CNH Industrial, Hersteller)
Technical data
Engine
| Fuel | Diesel/RMEcorrect |
|---|---|
| Power | 190 hp (139.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 790 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,268 cm³correct |
| Bore | 114 mmcorrect |
| Stroke | 135 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,049 mmcorrect |
|---|---|
| Width | 2,845 mmcorrect |
| Height | 3,017 mmcorrect |
| Wheelbase | 3,006 mmcorrect |
| Ground clearance | 439 mmcorrect |
| Unladen weight | 7,901 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24V/6Rcorrect |
| Front tyres | 14.9 R 30 AScorrect |
| Rear tyres | 20.8 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 17.7 kW/t (140 kW / 7.9 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Steyr Case 9200 a have?
The Steyr Case 9200 a delivers 190 hp.
How much does the Steyr Case 9200 a weigh?
The unladen weight is 7,901 kg.
What engine does the Steyr Case 9200 a have?
6 cylinders, 8,268 cm³ displacement, Diesel/RME.
How fast does the Steyr Case 9200 a go?
Top speed is 30 km/h.
What are the dimensions of the Steyr Case 9200 a?
5,049 mm × 2,845 mm × 3,017 mm.
When was the Steyr Case 9200 a built?
Production years: 1997–1999.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
