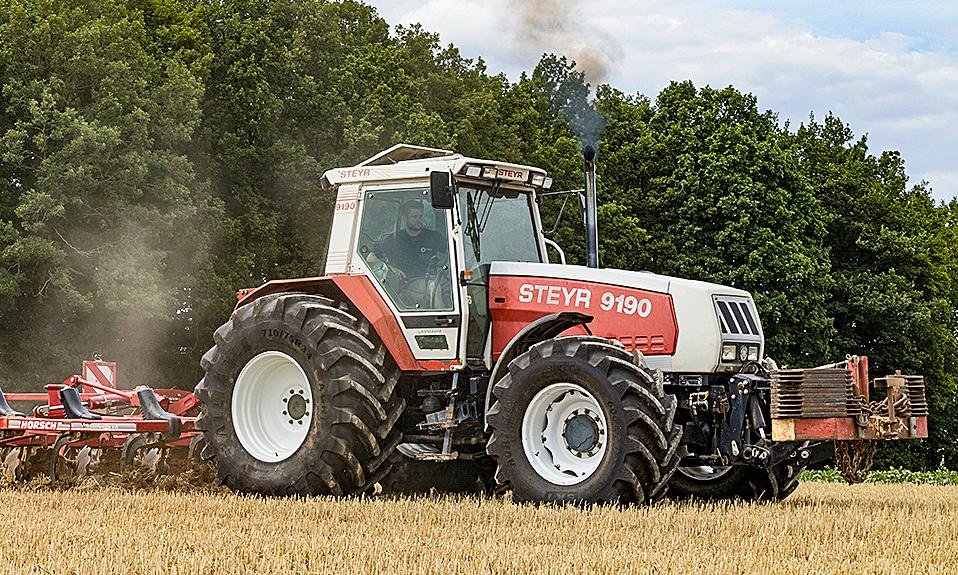

Steyr 9190 a
Built: 1993–1995 · Series: 9100er-Baureihe
More machines from model year 1993
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
9190 a (9100er-Baureihe series) by Steyr: six-cylinder diesel engine rated at 139.8 kW (190 hp) and 790 Nm of torque, built between 1993 and 1995.
The 9100er-Baureihe formed the upper mid-range of Steyr's line-up in the 1990s, at a time when the Austrian maker was already part of the Case IH group and its models were increasingly approved for running on rapeseed methyl ester.
Read on 3 more paragraphs
The 9190 a is powered by a six-cylinder diesel engine of 7,365 cm³ displacement, delivering 139.8 kW (190 hp) and 790 Nm of torque at 2,200 rpm. At an unladen weight of 6,300 kg, a wheelbase of 2,925 mm and a top speed of 40 km/h, the tractor combines strong pulling power with brisk road transport, at a ratio of roughly 45 kg of weight per kW.
Approval for diesel or rapeseed methyl ester reflects the shift toward alternative fuels in 1990s farm machinery, giving farmers more independence from outside fuel supply. High torque at a moderate rated speed, as seen here, is typical of tractors pulling heavy cultivation equipment on the three-point linkage to ISO 730 without needing to run constantly at high revs, and it keeps fuel consumption reasonable during long hours of drawbar work in the field.
On a used 9190 a, it is worth checking the injection system, especially if the machine ran on rapeseed methyl ester for extended periods, since that fuel places different demands on seals and filters than plain diesel. The gearbox and four-wheel-drive hubs should also be checked for play and noise.
Sources: SpecCodex-Register: Kennwerte des Modells 9190 a
Technical data
Engine
| Fuel | Diesel/RMEcorrect |
|---|---|
| Power | 190 hp (139.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 790 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,365 cm³correct |
| Bore | 108 mmcorrect |
| Stroke | 120 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,165 mmcorrect |
|---|---|
| Width | 2,450 mmcorrect |
| Height | 2,905 mmcorrect |
| Wheelbase | 2,925 mmcorrect |
| Ground clearance | 500 mmcorrect |
| Unladen weight | 6,300 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 32V/32Rcorrect |
| Forward gears | 32correct |
| Front tyres | 480/70 R 30 AScorrect |
| Rear tyres | 20.8 R 42 AScorrect |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 315 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 22.2 kW/t (140 kW / 6.3 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Steyr 9190 a have?
The Steyr 9190 a delivers 190 hp.
How much does the Steyr 9190 a weigh?
The unladen weight is 6,300 kg.
What engine does the Steyr 9190 a have?
6 cylinders, 7,365 cm³ displacement, Diesel/RME.
How fast does the Steyr 9190 a go?
Top speed is 40 km/h.
What are the dimensions of the Steyr 9190 a?
5,165 mm × 2,450 mm × 2,905 mm.
When was the Steyr 9190 a built?
Production years: 1993–1995.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
