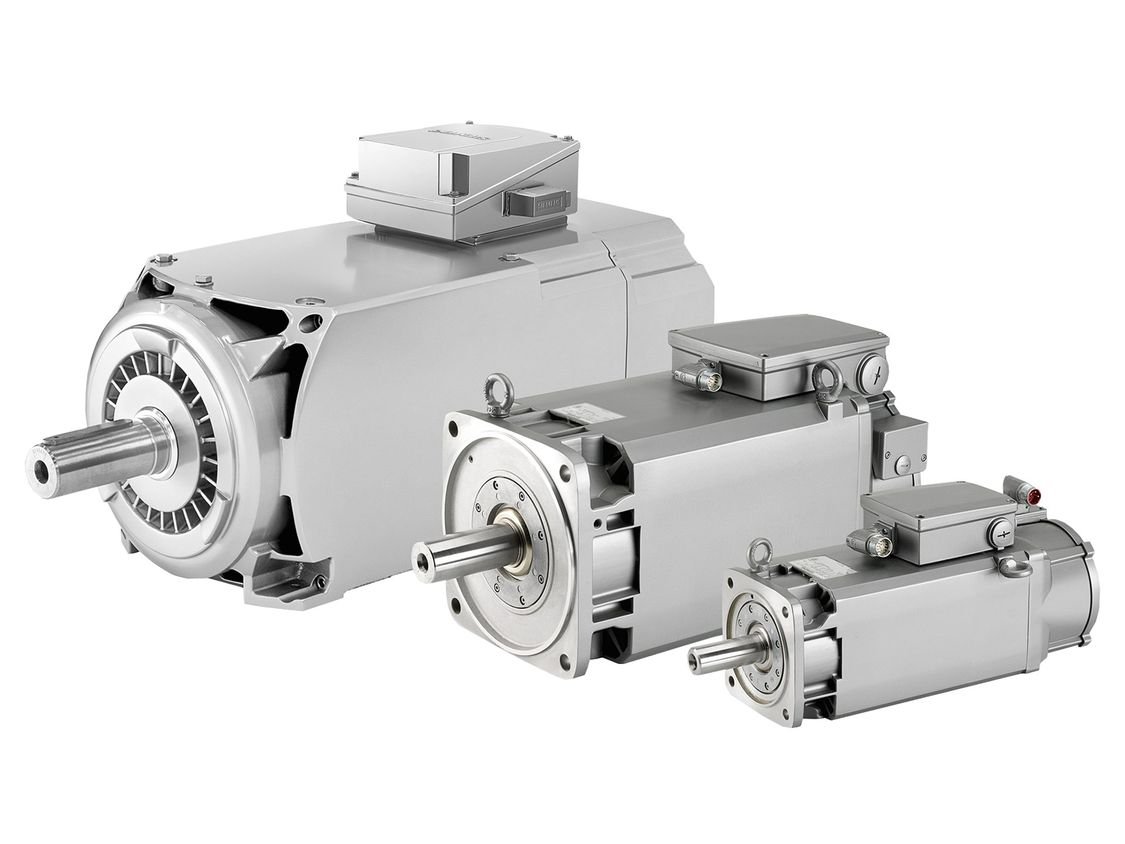

Siemens 1PP71692AA91Z
Series: 1PP
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Siemens – 1PP series at a glance
The 1PP series from Siemens comprises 11 models in the register, in the Electric motors group. Rated power ranges from 6 to 22 kW. Listed in the register: 1 PP9 169-2, 1PP71692AA91Z, 1PP718-2AA90-Z, 1PP9119-2XA92.
Sources: SpecCodex-Register (eigene Daten)
Technical data
Engine
| Rated output | 22 kWcorrect |
|---|
Dimensions and weights
| Weight | 113 kgcorrect |
|---|
Electrical data
| Number of poles | 2correct |
|---|---|
| Protection class | IP55correct |
| Frame size | 160 L (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B6, B7, B8, B9, B10, B14, B15, B20, B25, B34, B34, B35, V1, V2, V3, V4, V5, V6, V8, V9, V10, V14, V15, V16, V18, V19, V30, V31, V36correct |
| Efficiency at full load | 91.85 %correct |
| Efficiency at 75 % load | 90.59 %correct |
| Efficiency at half load | 88.55 %correct |
Origin and approval
| Country of manufacture | Czechiacorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the Siemens 1PP71692AA91Z have?
The Siemens 1PP71692AA91Z delivers 22 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
