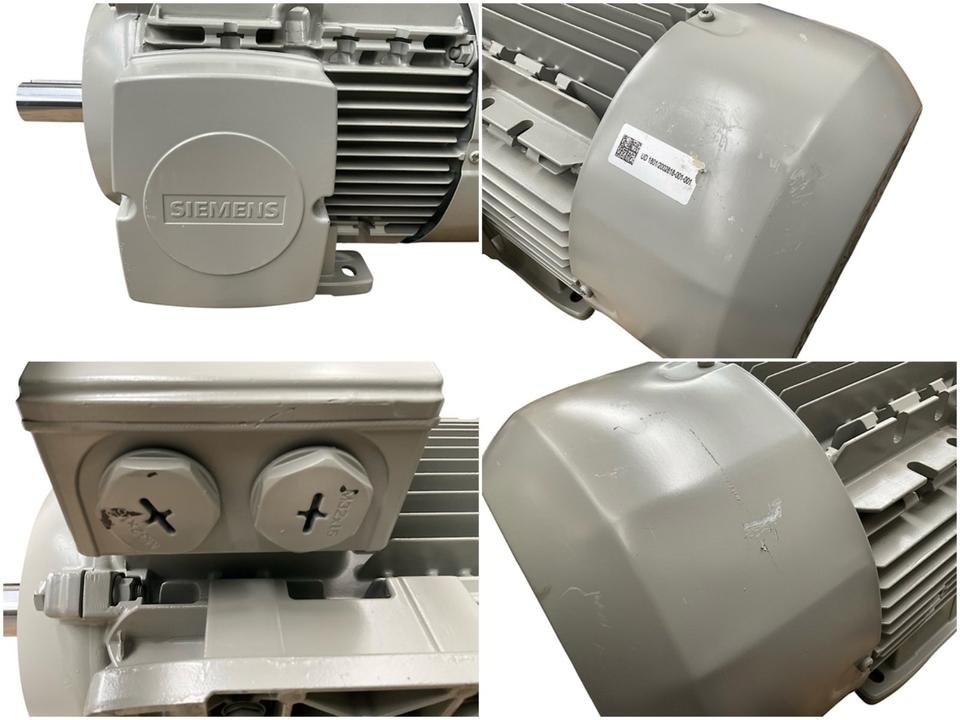

Siemens 1LE10031BA

Series: 1LE1

Source: kleinanzeigen.de

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Siemens lists the 1LE10031BA as a three-phase induction motor. The rated output is 4 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 400 V. The housing is frame size 112 M in foot-mounted form. The protection class is IP55. The efficiency is 88.1 per cent at full load, 88.7 per cent at 75 per cent load and 88 per cent at half load. The motor weighs 34 kg. At full load it delivers 12.9 Nm. The mounting arrangement to IEC 60034-7 is B3. The motor is built in Germany. The values are recorded in the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Siemens range ranges from 0.75 to 200 kW; the 1LE10031BA sits at the bottom of that range with 4 kW. Its immediate neighbours are the 7.0015.0 below it with 3 kW and the 1 LA5 207-2 above it with 5.5 kW. 569 Siemens models across 4 series are on record.

Siemens – 1LE1 series at a glance

The 1LE1 series from Siemens comprises 28 models in the register, in the Electric motors group. Rated power ranges from 2 to 55 kW. Listed in the register: 1LE1, 1LE1001-1BA2, 1LE1001-1BC2, 1LE1001-1DB2.

Sources: SpecCodex-Register (eigene Daten)

Technical data

Engine

Engine family1LE10031BAcorrect
Engine families1LE10031BAcorrect
Rated output4 kWcorrect

Dimensions and weights

Weight34 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles2correct
Protection classIP55correct
Frame size112 M (foot)correct
Mounting (IEC 60034-7)B3correct
Efficiency at full load88.1 %correct
Efficiency at 75 % load88.7 %correct
Efficiency at half load88 %correct

Origin and approval

Country of manufactureGermanycorrect

Other data

Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Siemens 1LE10031BA have?

The Siemens 1LE10031BA delivers 4 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
