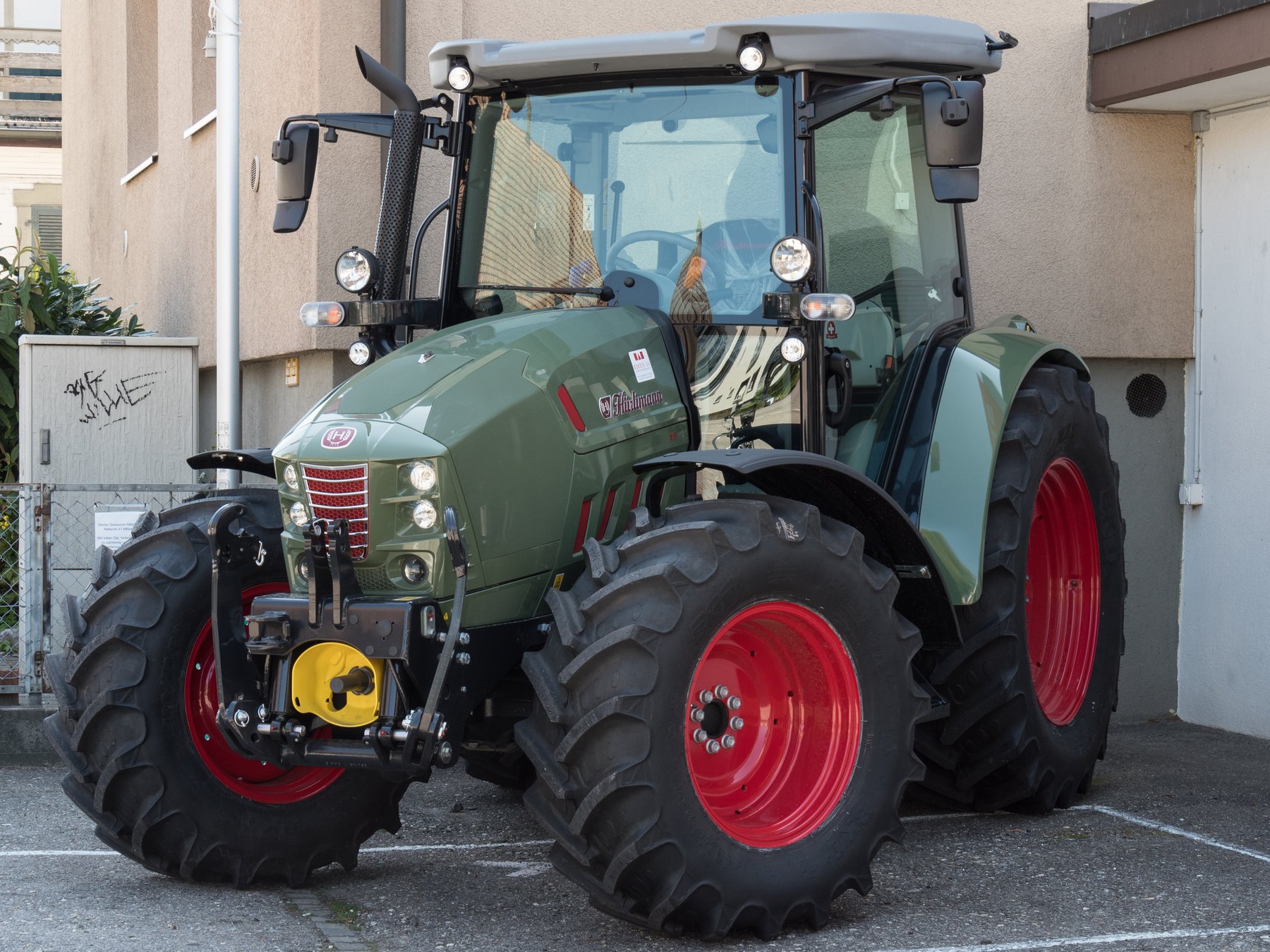

Sdf Hürlimann XB 110 MAX
Built: 2012–2015 · Series: XB MAX
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SDF Hürlimann XB Max: mid-size four-cylinder tractors from Wil, XB 110 MAX and XB MAX 85, 61 to 80 kW, under the SAME Deutz-Fahr group
The XB Max series belongs to Hürlimann's range under the umbrella of the SAME Deutz-Fahr group (SDF), which has run the Swiss tractor maker founded in 1929 in Wil, canton St. Gallen, since 1979. The XB 110 MAX and XB MAX 85 are mid-power four-cylinder tractors whose type number names the approximate output in hp. The Max suffix marks the more powerful versions within the XB series compared with simpler base versions.
Read on 3 more paragraphs
The register lists 2 versions here with 60.5 to 80.2 kW from four-cylinder engines of 4,038 cm³, torque of 303 to 400 Nm at a rated speed of 2,100 to 2,300 rpm, and unladen weights of 2,990 to 4,100 kg, with lengths of 3,890 to 3,990 mm, a width of 2,050 mm and heights of 2,530 to 2,580 mm.
As versatile four-cylinder tractors, the XB Max series targeted mid-size mixed farming operations and competed there with comparable models from group siblings Same and Deutz-Fahr as well as Fendt's 300 series. With comparatively compact dimensions, the models also suited work in tighter farmyard passages and livestock buildings.
When buying one of these four-cylinder tractors, attention should go to the condition of the engine and injection system, the tightness of the hydraulics, rust on the fenders and cab floor, and the condition of the clutch and transmission, as well as the tightness of the cab mounts and the function of the four-wheel drive and differential lock, where fitted; spare parts are available through the SDF dealer network.
Sources: SpecCodex register, model data: SDF Hürlimann XB Max, Hürlimann (SDF-Marke, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 109 hp (80.2 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 400 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,038 cm³correct |
| Bore | 101 mmcorrect |
| Stroke | 126 mmcorrect |
| Compression ratio | 18correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,990 mmcorrect |
|---|---|
| Width | 2,050 mmcorrect |
| Height | 2,580 mmcorrect |
| Wheelbase | 2,340 mmcorrect |
| Ground clearance | 500 mmcorrect |
| Unladen weight | 4,100 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 20V/20R or 40V/40Rcorrect |
| Front tyres | 480/65 R 24 AScorrect |
| Rear tyres | 540/65 R 34 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 19.6 kW/t (80 kW / 4.1 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Sdf Hürlimann XB 110 MAX have?
The Sdf Hürlimann XB 110 MAX delivers 109 hp.
How much does the Sdf Hürlimann XB 110 MAX weigh?
The unladen weight is 4,100 kg.
What engine does the Sdf Hürlimann XB 110 MAX have?
4 cylinders, 4,038 cm³ displacement, Diesel.
How fast does the Sdf Hürlimann XB 110 MAX go?
Top speed is 40 km/h.
What are the dimensions of the Sdf Hürlimann XB 110 MAX?
3,990 mm × 2,050 mm × 2,580 mm.
When was the Sdf Hürlimann XB 110 MAX built?
Production years: 2012–2015.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
