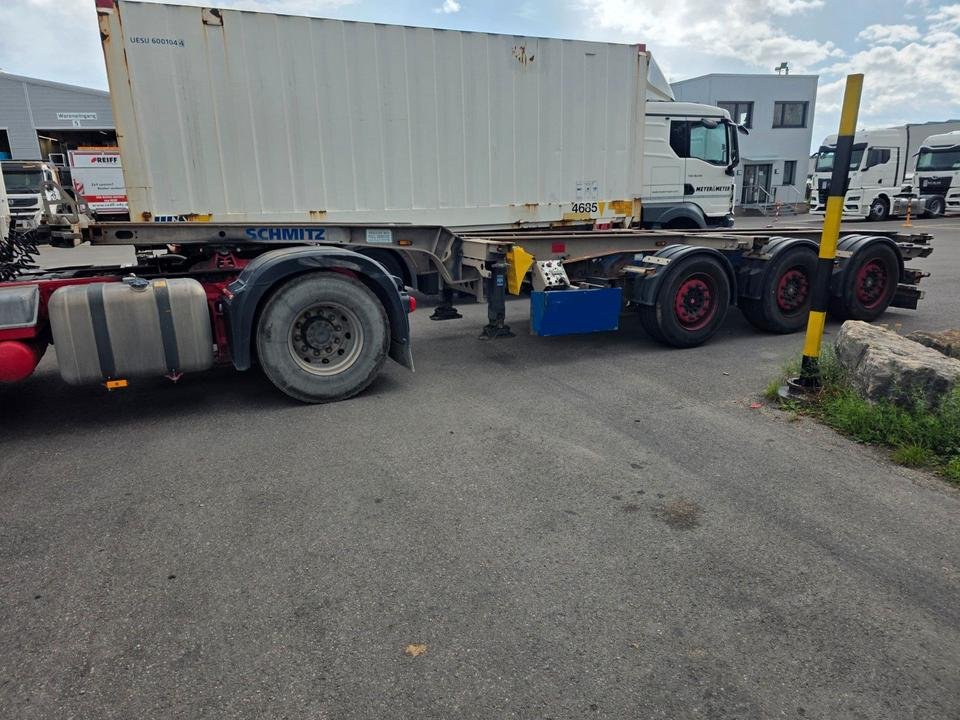

Schmitz SCF 24 Slider
Built: 2006-2011 · Series: SCF
More machines from model year 2006
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schmitz SCF – container chassis from Horstmar/Altenberge: 18 versions, unladen weight 3,300 to 5,860 kg, gross weight 24,300 to 39,000 kg, length up to 13,150 mm
Schmitz Cargobull builds container chassis among other trailers at Horstmar/Altenberge, listed in the register under the designation SCF. These semi-trailers carry swap bodies and ISO containers instead of a load bed of their own; type suffixes such as SCF 24 G-45'EURO or SCF 24/L-40 GOOSENECK use 40' and 45' to mark the container length in feet and GOOSENECK to mark a lowered frame for raised containers.
Read on 3 more paragraphs
The register lists here 18 versions with unladen weights from 3,300 to 5,860 kg, gross weights from 24,300 to 39,000 kg, lengths from 9,400 to 13,150 mm and widths from 2,420 to 2,550 mm.
Container chassis of this kind are essential in intermodal transport between port, terminal and consignee, because they let the same semi-trailer be used for different container sizes and weights. The large number of versions reflects the different container lengths, axle counts and locking systems used in European combined transport, where the same tractor unit may work with several such semi-trailers in the course of a single day.
When buying used, check the condition of the twist locks and container locks, the chassis and side rails for distortion from overloading, the axles, brakes and air suspension, and the function of the landing legs. On gooseneck versions, also check the lowered section of the chassis for cracking, since that is where the highest loads occur.
Sources: Kennwerte der Modelle Schmitz SCF, Schmitz Cargobull (Hersteller)
Technical data
Dimensions and weights
| Length | 13,140 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Unladen weight | 4,650 kgcorrect |
| Gross vehicle weight | 27,000 kgcorrect |
Frequently asked questions
How much does the Schmitz SCF 24 Slider weigh?
The unladen weight is 4,650 kg.
What is the gross vehicle weight of the Schmitz SCF 24 Slider?
27,000 kg.
What are the dimensions of the Schmitz SCF 24 Slider?
13,140 mm × 2,550 mm.
When was the Schmitz SCF 24 Slider built?
Production years: 2006-2011.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 5 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
