Schmiedag AG Hagen Hansa 50
Built: 1952 to approx. 1969 · Series: Hansa
More machines from model year 1952
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

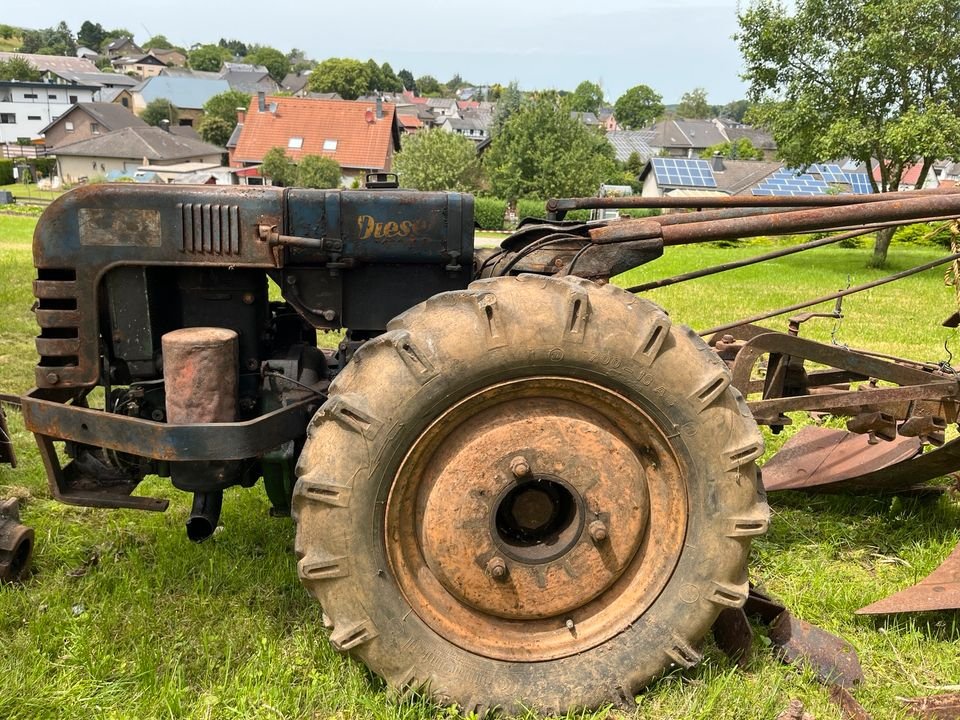

Schmiedag Hansa 50: single-cylinder small tractor with 350 cc displacement, 6.6 kW output and 450 kg weight, built since 1952
The Hansa 50 belongs to the class of simple small tractors built during the 1950s for smaller farms, market gardens and orchards, at a time when many such holdings were only gradually switching to motorised pulling power.
Read on 3 more paragraphs
The Hansa 50 is powered by a single-cylinder engine of 350 cc with either air or water cooling, producing 6.6 kW (9 hp) at 2,000 to 3,000 rpm. The engine runs on a petrol mix or on diesel. At a weight of 450 kg, a height of 850 mm, a length of 2,300 mm and a width of 550 mm, the tractor reaches a design top speed of 11 km/h.
A weight of just 450 kg and a width of 550 mm mark a very small, narrow tractor, the kind used between tight tree rows in orchards or in market gardens with limited space, rather than for field work on open arable land. The 11 km/h top speed falls within today's L driving licence category, and neither four-wheel drive nor a three-point hitch featured on machines this small.
Buying a used single-cylinder this small and this old, the condition of the cooling and a careful check of the fuel variant against the paperwork deserve particular attention, since the petrol-mix and diesel versions call for different maintenance. Also worth checking are rust damage, the completeness of original parts and the condition of the simple mechanical brakes.
Sources: SpecCodex-Register: Kennwerte des Modells Hansa 50
Technical data
Engine
| Fuel | Benzingemisch/Dieselcorrect |
|---|---|
| Power | 9 hp (6.6 kW)correct |
| Rated speed | 2.000 - 3.000 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 350 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,300 mmcorrect |
|---|---|
| Width | 550 mmcorrect |
| Height | 850 mmcorrect |
| Unladen weight | 450 kgcorrect |
Drivetrain and chassis
| Drive | single-axle drivecorrect |
|---|---|
| Gearbox | (2V+R)*2correct |
| Front tyres | 7.00 x 18 AScorrect |
| Top speed | 11 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 14.7 kW/t (7 kW / 0.5 t)
Power class: Compact (< 40 hp)
Stronger than 1% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Schmiedag AG Hagen Hansa 50 have?
The Schmiedag AG Hagen Hansa 50 delivers 9 hp.
How much does the Schmiedag AG Hagen Hansa 50 weigh?
The unladen weight is 450 kg.
What engine does the Schmiedag AG Hagen Hansa 50 have?
1 cylinders, 350 cm³ displacement, Benzingemisch/Diesel.
How fast does the Schmiedag AG Hagen Hansa 50 go?
Top speed is 11 km/h.
What are the dimensions of the Schmiedag AG Hagen Hansa 50?
2,300 mm × 550 mm × 850 mm.
When was the Schmiedag AG Hagen Hansa 50 built?
Production years: 1952–196?.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: Wikibooks Traktorenlexikon (CC BY-SA 4.0) (retrieved August 2026) · Values adopted and presented in our own form; changes from the source are possible. · How we check the data
