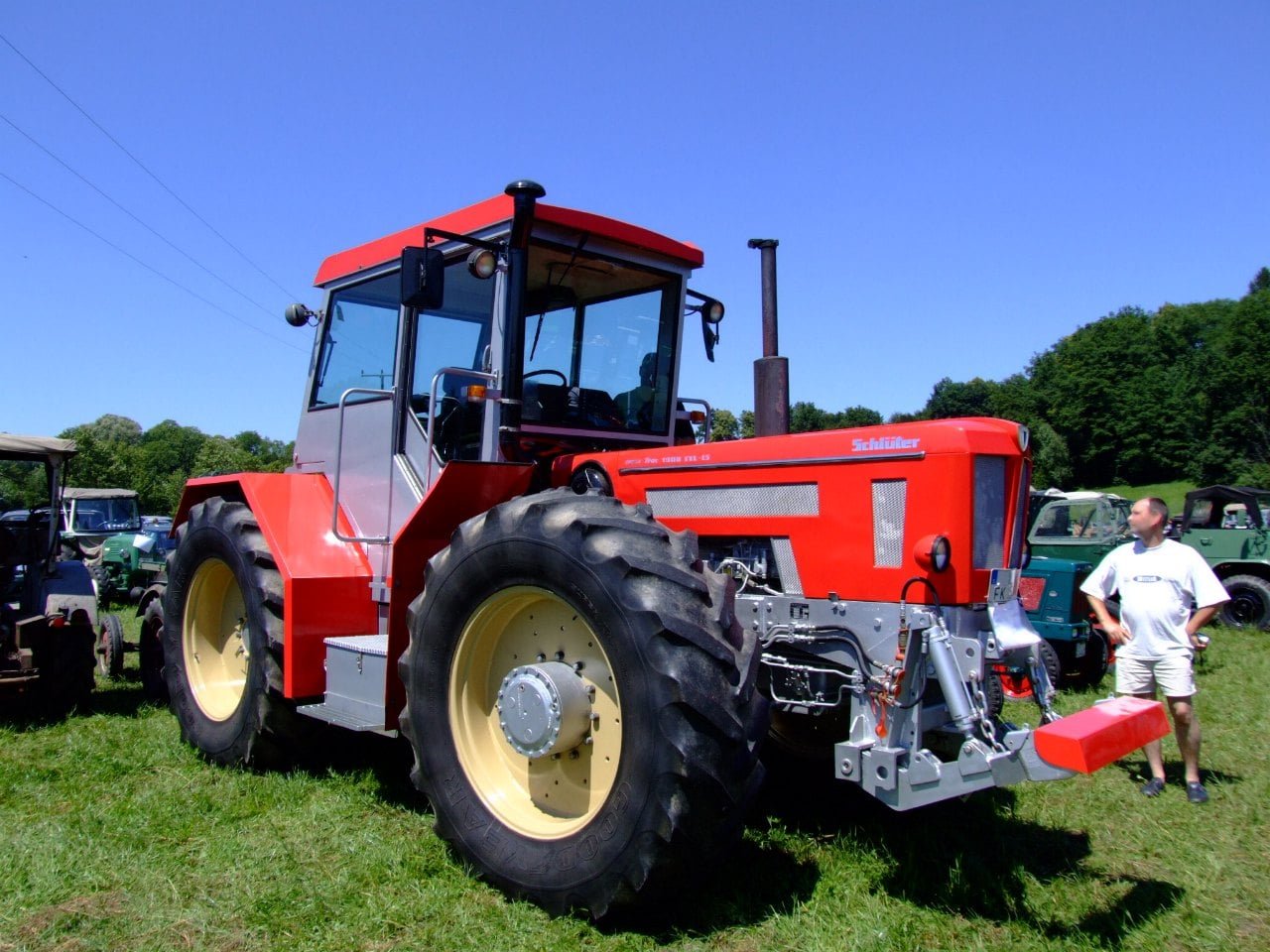

Schlüter 1900 TV-LS ( TVL-LS )

Built: 8/1987–5/1988 · Series: Super Tronic

More machines from model year 1987

Source: https://www.lectura-specs.com/en/model/agricultural-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 1900 TV-LS ( TVL-LS ) from Schlüter is part of the Super Tronic series. Production: 8/1987–5/1988. The engine delivers 185 hp (138 kW), has 6 cylinders, with a displacement of 7,389 cm³. Torque is 795 Nm. Rated speed is 2,100 rpm. The machine is 5,020 mm long, 2,500 mm wide and 3,090 mm high. The unladen weight is 7,900 kg. The wheelbase measures 2,900 mm. Top speed is 32.5 km/h. Transmission: 16V / 14R. The engine is water-cooled. Tyres: rear 20.4 R42. The fuel is diesel. The bore measures 112 mm. The stroke is 125 mm. Maximum torque is reached at 1,300 rpm. Construction: semi-frame construction. Injection pressure is 240 bar. Around 6 units were built. Rated output across the Schlüter range ranges from 13 to 500 hp; the 1900 TV-LS ( TVL-LS ) sits in the lower part of that range with 185 hp. Its immediate neighbours are the 1800 TVL below it with 170 hp and the Euro Trac 1900/2000 LS above it with 190 hp. Rated output across the Schlüter range ranges from 9.5 to 368 kW; here the 1900 TV-LS ( TVL-LS ) sits in the lower part of that range with 138 kW. 91 Schlüter models across 19 series are on record.

Schlüter 1900 TV-LS: six-cylinder large tractor rated at 138 kW, 7.4-litre displacement and 7,900 kg weight from the Super Tronic range

Schlüter was a German tractor manufacturer based in Freising in Bavaria, building tractors from the 1930s until it ceased production in 1993, known chiefly for its high-output large tractors. The Super Tronic range, with the 1900 TV-LS model, counted among the company's most powerful lines.

Read on 3 more paragraphs

The 1900 TV-LS (TVL-LS) is powered by a water-cooled six-cylinder engine of 7,389 cc, producing 138 kW (185 hp) at 2,100 rpm with 795 Nm of torque. At a weight of 7,900 kg, a wheelbase of 2,900 mm and a width of 2,500 mm, the tractor reaches a design top speed of 32.5 km/h. Height stands at 3,090 mm and length at 5,020 mm. The engine runs on diesel.

A six-cylinder at nearly 8 tonnes and more than seven litres of displacement marks one of the heaviest field tractors of its time, the kind used for tillage with wide implements and drawbar work demanding very high pulling force on large farms. The 32.5 km/h top speed falls within the L driving licence category, the power take-off runs at the standard 540 or 1,000 rpm, and the three-point hitch follows ISO 730.

Buying a used six-cylinder this heavy and this powerful, the injection system, the cooling system and hydraulic tightness deserve particular attention. Also worth checking at inspection are the sheet metal for rust damage, the condition of the PTO bearings and tyre condition given the high kerb weight.

Sources: SpecCodex-Register: Kennwerte des Modells 1900 TV-LS (TVL-LS)

Technical data

Engine

Fuel	dieselcorrect
Power	185 hp (138 kW)correct
Rated speed	2,100 rpmcorrect
Torque	795 Nmcorrect
Speed at max. torque	1,300 rpmcorrect
Cylinders	6correct
Displacement	7,389 cm³correct
Bore	112 mmcorrect
Stroke	125 mmcorrect
Injection pressure	240 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	5,020 mmcorrect
Width	2,500 mmcorrect
Height	3,090 mmcorrect
Wheelbase	2,900 mmcorrect
Unladen weight	7,900 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	16V / 14Rcorrect
Rear tyres	20.4 R42correct
Top speed	32.5 km/hcorrect

Origin and approval

Construction	semi-frame constructioncorrect
Units built	6correct

Where this model stands

Power-to-weight ratio: 17.5 kW/t (138 kW / 7.9 t)

Power class: Heavy (> 180 hp)

Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Schlüter 1900 TV-LS ( TVL-LS ) have?

The Schlüter 1900 TV-LS ( TVL-LS ) delivers 185 hp.

How much does the Schlüter 1900 TV-LS ( TVL-LS ) weigh?

The unladen weight is 7,900 kg.

What engine does the Schlüter 1900 TV-LS ( TVL-LS ) have?

6 cylinders, 7,389 cm³ displacement, Diesel.

How fast does the Schlüter 1900 TV-LS ( TVL-LS ) go?

Top speed is 32.5 km/h.

What are the dimensions of the Schlüter 1900 TV-LS ( TVL-LS )?

5,020 mm × 2,500 mm × 3,090 mm.

When was the Schlüter 1900 TV-LS ( TVL-LS ) built?

Production years: 8/1987–5/1988.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
