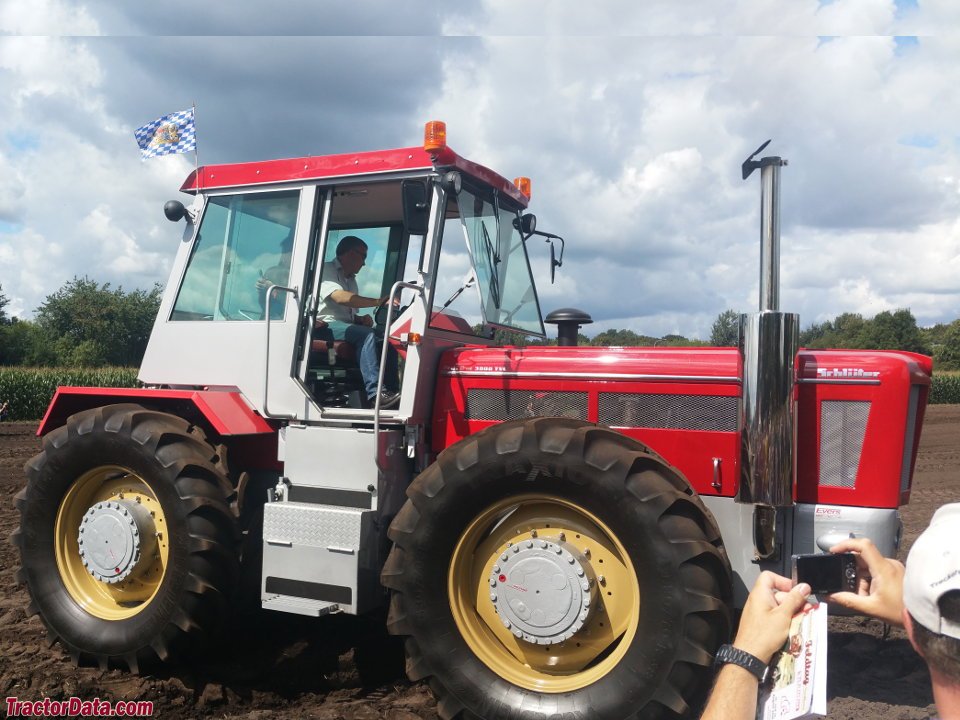

Schlüter Profi Trac 3000 TVL
Built: 9/1975–8/1988 · Series: Profi Trac-Baureihe
More machines from model year 1975
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schlüter Profi Trac (1978–1993) – the systems tractor from Freising: 1600 TVL to 5000 TVL, the number as power class, V for four-wheel drive, T for turbocharger, Schlüter and MAN engines of 7.1 to 20.9 litres
The Profi Trac was Schlüter's answer to the question of what a tractor beyond 150 hp should look like: not an enlarged standard tractor but a systems vehicle with four equal wheels, all-wheel steering, centrally mounted cab and mounting spaces front and rear – the Freising maker presented it in 1978 and built it until the end of tractor production in 1993. The type logic: the number gives the power class in tenths of hp – Profi Trac 1600 about 160 hp, 2500 250 hp, 5000 500 hp – V stands for four-wheel drive, T for the turbocharger (the VL versions are the naturally aspirated variants). The engines are Schlüter's own five- and six-cylinders in the smaller models, MAN engines in the big ones up to the V12 of 20.9 litres in the 5000 TVL, the most powerful tractor ever series-built in Germany; the register span of 5 to 12 cylinders and 7,127 to 20,911 cm³ shows that breadth.
Read on 3 more paragraphs
The register lists 9 versions with 117.1 to 368 kW, unladen weights from 9,000 to 18,000 kg, lengths from 5,670 to 6,450 mm, widths from 2,450 to 2,720 mm and heights from 3,160 to 3,460 mm.
The Profi Trac remained a niche product for contractors, large farms and municipal use, but its concept lived on: Fendt Xylon, JCB Fastrac and Claas Xerion followed the idea of the systems tractor.
Used Profi Tracs are collectors' items with prices depending on condition; engine (MAN parts are better available than Schlüter parts), transmission and all-wheel steering, hydraulics, cab and sheet metal count.
Sources: SpecCodex register, model data: Schlüter Profi Trac, Schlüter (Traktorenhersteller) (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 280 hp (208.6 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 1,020 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 11,045 cm³correct |
| Bore | 125 mmcorrect |
| Stroke | 150 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 6,177 mmcorrect |
|---|---|
| Width | 2,498 mmcorrect |
| Height | 3,460 mmcorrect |
| Wheelbase | 2,890 mmcorrect |
| Unladen weight | 11,500 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18V / 4Rcorrect |
| Forward gears | 18correct |
| Reverse gears | 4correct |
| Front tyres | 20.8 R 38correct |
| Rear tyres | 20.8 R 38correct |
| Top speed | 33.4 km/hcorrect |
Working data
| Fuel tank capacity | 445 lcorrect |
|---|
Origin and approval
| Units built | 14correct |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 18.1 kW/t (209 kW / 11.5 t)
Power class: Heavy (> 180 hp)
Stronger than 96% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Schlüter Profi Trac 3000 TVL have?
The Schlüter Profi Trac 3000 TVL delivers 280 hp.
How much does the Schlüter Profi Trac 3000 TVL weigh?
The unladen weight is 11,500 kg.
What engine does the Schlüter Profi Trac 3000 TVL have?
6 cylinders, 11,045 cm³ displacement, Diesel.
How fast does the Schlüter Profi Trac 3000 TVL go?
Top speed is 33.4 km/h.
What are the dimensions of the Schlüter Profi Trac 3000 TVL?
6,177 mm × 2,498 mm × 3,460 mm.
When was the Schlüter Profi Trac 3000 TVL built?
Production years: 9/1975–8/1988.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
