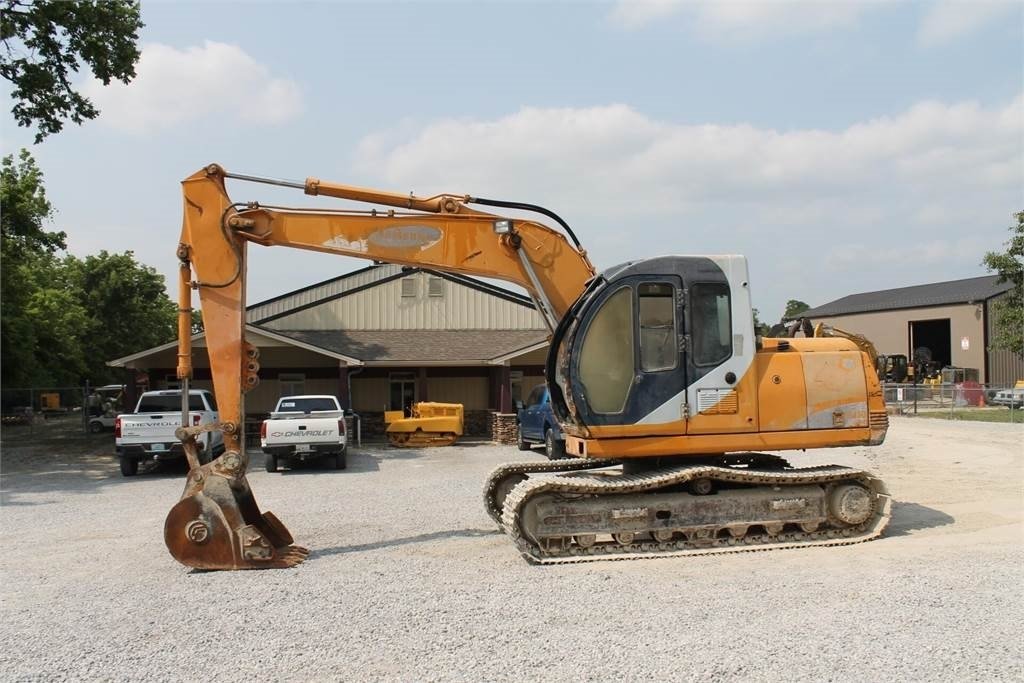

Samsung SE130LC-2
Series: Samsung Hydraulic Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Samsung excavators SE50 to SE450 – the construction machines of the electronics group (1980s–1998), to Volvo in 1998: the number as weight class, LC and NLC, Cummins engines, 38 to 221 kW
Samsung built excavators: from the 1980s until 1998 Samsung Heavy Industries manufactured hydraulic excavators at its Changwon plant, first under licence from Japanese designs, then as its own SE range, and was, with Daewoo and Hyundai, the third Korean supplier. In 1998 Volvo Construction Equipment took over the division in the Asian crisis; Changwon became Volvo's Korean excavator plant, and the SE models became the Volvo EC excavators of the same class – the SE210LC-3 the EC210, the SE280LC-3 the EC290. The type logic: SE stands for Samsung Excavator, the number gives the weight class in hundreds of kilograms (SE130 about 13 t, SE280 28 t, SE450 45 t), LC the long undercarriage, NLC the narrow long undercarriage for transport, -2 and -3 the generations, Long Reach the extended boom.
Read on 3 more paragraphs
The register lists 13 versions with 38 to 220.7 kW from four- and six-cylinders of 2,778 to 8,271 cm³ – Cummins 4BTA3.9, B5.9, C8.3 and LTA10 in almost all, Yanmar 4TNE94 in the smallest model – torque from 181 to 1,323 Nm at 1,700 to 2,200 rpm and operating weights from 11,130 to 43,740 kg.
The Samsung excavators with Cummins engines were common in Europe and Asia in the 1990s as a lower-priced alternative; their design lived on in the first Volvo EC generations from Korea, which is why parts partly remained available through Volvo.
Used Samsung excavators are now 25 to 35 years old; when buying, play in slew ring and boom pins, undercarriage condition, leak-free pumps and cylinders and parts supply, secured for Cummins engines and possible for the hydraulics through Volvo dealers and remanufacturers, are what count.
Sources: SpecCodex register, model data: Samsung Hydraulikbagger, Volvo CE Geschichte (Rechtsnachfolger Samsung Heavy Industries Baumaschinen)
Technical data
Engine
| Engine model | 4BTA3.9-Ccorrect |
|---|---|
| Power | 100.4 hp (73.8 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 351.2 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 4correct |
Dimensions and weights
| Ground clearance | 451.1 mmcorrect |
|---|---|
| Unladen weight | 13,000 kgcorrect |
Working data
| Pump flow | 260.1 l/mincorrect |
|---|---|
| Hydraulic pressure | 313.8 barcorrect |
| Fuel tank capacity | 260.1 lcorrect |
Other data
| Cab height | 2,807.2 mmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 5.7 kW/t (74 kW / 13 t)
Stronger than 27% of the excavators & compaction in the register — out of 1,650 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Samsung SE130LC-2 have?
The Samsung SE130LC-2 delivers 100 hp.
How much does the Samsung SE130LC-2 weigh?
The unladen weight is 13,000 kg.
What engine does the Samsung SE130LC-2 have?
4 cylinders.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
