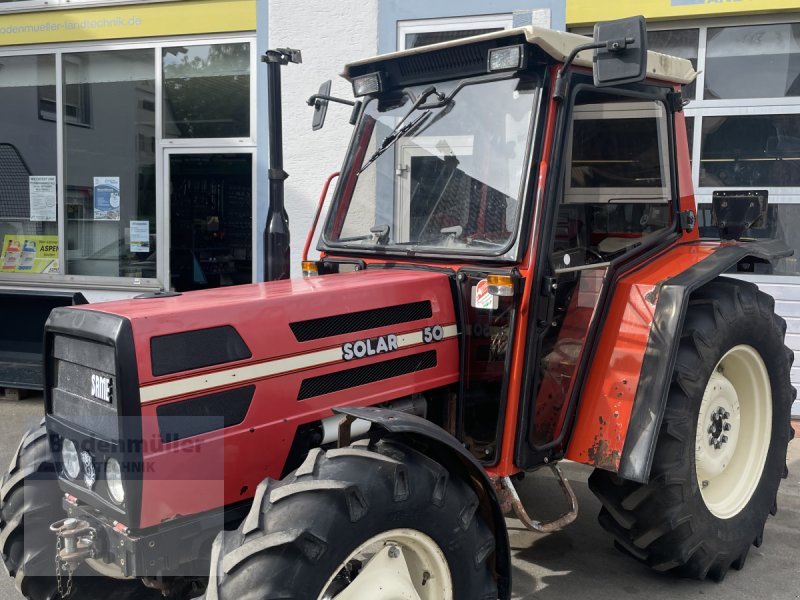

SAME Solar 50

Built: 1986–1997 · Series: Solar

More machines from model year 1986

Source: https://www.technikboerse.com/gebraucht/traktor-357/same-101

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the Solar 50, SAME offers a model from the Solar series. Production: 1986–1997. The engine delivers 50 hp (37 kW), has 3 cylinders, with a displacement of 2,715 cm³. Torque is 175 Nm. Rated speed is 2,200 rpm. The machine is 3,380 mm long and 2,280 mm high. The wheelbase measures 2,080 mm. Top speed is 30 km/h. Lifting capacity is 2,370 kg. The tank holds 55 litres. The engine is air-cooled. Tyres: front Solar 50: 6.50-16, Solar 50 DT: 11.2-20, rear 14.9-28. The fuel is diesel. Construction: unit construction (no separate frame). Rated output across the SAME range ranges from 12.5 to 269 hp; the Solar 50 sits at the bottom of that range with 50 hp. Its immediate neighbours are the MINITAURO 50 below it with 48 hp and the CONDOR (DT) above it with 52 hp. Rated output across the SAME range ranges from 12.5 to 269 hp; here the Solar 50 sits at the bottom of that range with 50 hp. 265 SAME models across 29 series are on record.

SAME Solar – compact range from Treviglio: Solar 50, Solar 50 DT, Solar 60 and Solar 60 DT, three-cylinder diesels of 2,715 to 3,116 cm³, 37 to 44 kW, unladen weights from 2,080 to 2,625 kg

The Solar range in the register comprises the Solar 50, Solar 50 DT, Solar 60 and Solar 60 DT; the DT suffix stands for Doppia Trazione, four-wheel drive, which SAME offers in this compact class as an option alongside the base rear-wheel-drive version. The range was built at the parent plant in Treviglio near Bergamo, home of the brand founded in 1942 by Francesco Cassani and today part of the SAME Deutz-Fahr group.

Read on 3 more paragraphs

The register lists here 2 versions with 37 to 44 kW, or 50 to 60 hp, from a three-cylinder of 2,715 to 3,116 cm³ at 2,200 revolutions per minute and a torque of 175 to 217 Nm. Unladen weights run, depending on version, from 2,080 to 2,625 kg, lift capacities from 2,370 to 2,970 kg, lengths from 3,380 to 3,400 mm and heights from 2,280 to 2,330 mm.

At 50 to 60 hp with optional four-wheel drive, the Solar covers the compact class for smaller farms, fruit growing, viticulture and municipal tasks, a segment where SAME traditionally holds a strong position.

On a used Solar, operating hours and the condition of the three-cylinder diesel, the function of clutch and shuttle, on the DT versions the state of the front-axle drive, tightness of the hydraulics, and corrosion on mudguards and steps matter; parts run through the SAME Deutz-Fahr group network.

Sources: SpecCodex register, model data: SAME Solar, SAME (SAME Deutz-Fahr Group, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	50 hp (37 kW)correct
Rated speed	2,200 rpmcorrect
Torque	175 Nmcorrect
Cylinders	3correct
Displacement	2,715 cm³correct
Cooling	air-cooledcorrect

Dimensions and weights

Length	3,380 mmcorrect
Height	2,280 mmcorrect
Wheelbase	2,080 mmcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	12/3 Synchronganggetriebecorrect
Front tyres	Solar 50: 6.50-16, Solar 50 DT: 11.2-20correct
Rear tyres	14.9-28correct
Top speed	30 km/hcorrect

Working data

Lifting capacity	2,370 kgcorrect
Fuel tank capacity	55 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Frequently asked questions

How much power does the SAME Solar 50 have?

The SAME Solar 50 delivers 50 hp.

What engine does the SAME Solar 50 have?

3 cylinders, 2,715 cm³ displacement, Diesel.

How fast does the SAME Solar 50 go?

Top speed is 30 km/h.

How much does the rear linkage of the SAME Solar 50 lift?

The rear linkage lifts 2,370 kg.

What are the dimensions of the SAME Solar 50?

3,380 mm × 2,280 mm.

When was the SAME Solar 50 built?

Production years: 1986–1997.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
