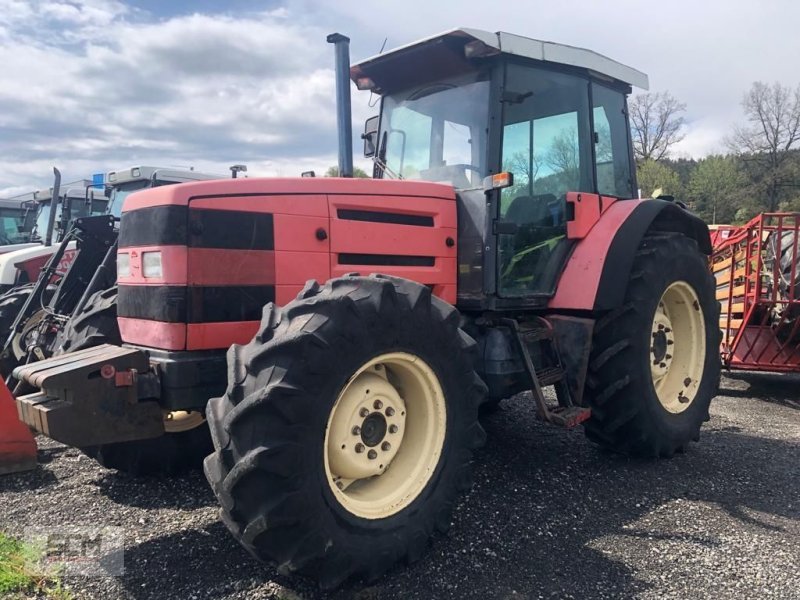

SAME (SLH) ANTARES II 110
Built: 1996–2000 · Series: ANTARES II-Baureihe
More machines from model year 1996
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SAME (SLH) Antares II 110 (1996-2000): water-and-oil-cooled six-cylinder standard tractor with 80.9 kW output and 377 Nm of torque from the ANTARES II series
The Antares II 110 was built between 1996 and 2000 as part of the ANTARES II series under the SAME (SLH) designation and belonged to the more powerful six-cylinder standard tractors of this period.
Read on 3 more paragraphs
The six-cylinder engine runs on a combination of water and oil cooling, displaces 6,000 cm³ and delivers 80.9 kW at 2,500 rpm, equivalent to 110 horsepower, with 377 Nm of torque. With a weight of 4,650 kg, a wheelbase of 2,750 mm and a top speed of 40 km/h, the Antares II 110 was built for both heavy drawbar work and brisk road travel.
The combination of water and oil cooling differs from the pure air-and-oil cooling of older SAME models: a classic water radiator handles the main cooling here, while an additional oil cooler stabilises lubricant temperature under full load. This design was common on more powerful six-cylinder engines of the 1990s, since water cooling alone reaches its limits at high continuous output.
When buying a used Antares II 110, both the water radiator and the oil cooler should be checked for leaks, since a failure of either system in this combined cooling concept can quickly lead to overheating. The braking system also deserves particularly thorough inspection given the 40 km/h top speed, which is high for a standard tractor. Given the tractor's age, the wiring harness around the engine bay also deserves a visual check, since heat from the combined cooling system can make insulation brittle over time.
Sources: SpecCodex-Register: Kennwerte des Modells ANTARES II 110
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 110 hp (80.9 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 377 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Injection pressure | 181 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,590 mmcorrect |
|---|---|
| Width | 2,220 mmcorrect |
| Height | 2,805 mmcorrect |
| Wheelbase | 2,750 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 4,650 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24 V/24 R, 54 V/54 R and 72 V/72 Rcorrect |
| Front tyres | 14.9 R 30 AScorrect |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 17.4 kW/t (81 kW / 4.7 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME (SLH) ANTARES II 110 have?
The SAME (SLH) ANTARES II 110 delivers 110 hp.
How much does the SAME (SLH) ANTARES II 110 weigh?
The unladen weight is 4,650 kg.
What engine does the SAME (SLH) ANTARES II 110 have?
6 cylinders, 6,000 cm³ displacement, Diesel.
How fast does the SAME (SLH) ANTARES II 110 go?
Top speed is 40 km/h.
What are the dimensions of the SAME (SLH) ANTARES II 110?
4,590 mm × 2,220 mm × 2,805 mm.
When was the SAME (SLH) ANTARES II 110 built?
Production years: 1996–2000.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 25 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: Wikibooks Traktorenlexikon (CC BY-SA 4.0) (retrieved August 2026) · How we check the data
Tractor in 3D section
Turn the model, look inside and click an assembly — each one is explained.
