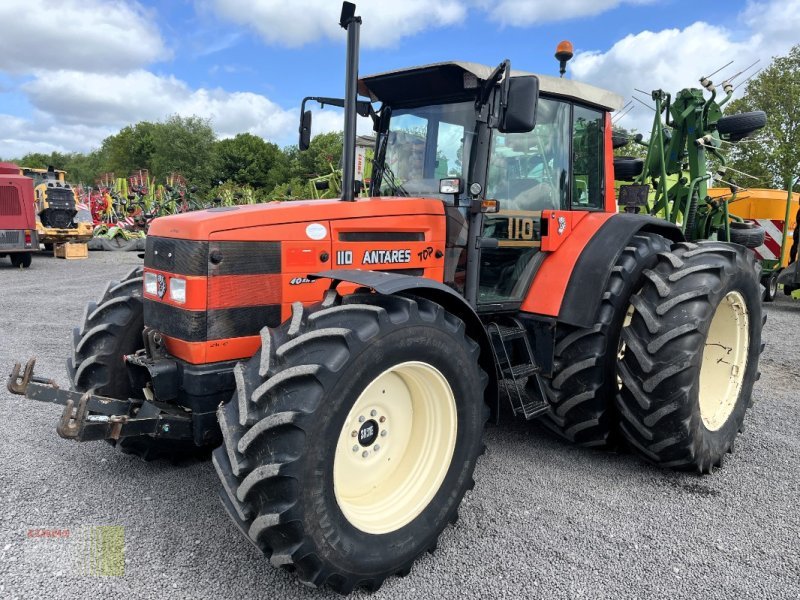

SAME (SLH) ANTARES 110
Built: 1991–1996 · Series: ANTARES-Baureihe
More machines from model year 1991
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SAME Antares series: the SLH era of the 1990s from Treviglio, four types from Antares 100 to Antares II 130, 73.5 to 97.1 kW from four- to six-cylinder engines of 4,000 to 6,001cc, 3,400 to 5,250 kg kerb weight
The Antares series was developed at SAME of Treviglio during the SLH era of the 1990s, when the company operated as the SAME Lamborghini Hürlimann group following its acquisition of Lamborghini Trattori and Hürlimann, before the 1995 acquisition of Deutz-Fahr formed today's SDF group. The models Antares 100, 110, 130 and Antares II 130 rank the types by power class; the II designation marks a revised second generation of the 130 hp model.
Read on 3 more paragraphs
The register lists 4 versions with 73.5 to 97.1 kW from four- to six-cylinder engines of 4,000 to 6,001cc, torque from 347 to 469 Nm at 2,500 rpm, kerb weights from 3,400 to 5,250 kg, lengths from 3,860 to 5,140 mm, widths from 1,900 to 2,250 mm and heights from 2,620 to 2,890 mm.
The Antares series positioned SAME in the upper mid-range for large arable farms in Italy and southern Europe, competing with Fiat models of similar power class as well as with sister brands Lamborghini and Hürlimann, which offered comparable series under their own branding at the same time.
When buying used, check operating hours, clutch and gearbox condition, engine and hydraulic oil-tightness, and corrosion on the cab and chassis; since SAME, Lamborghini and Hürlimann built technically closely related models during this period, spare parts supply through the SDF dealer network remains comparatively good even for older Antares models.
Sources: SpecCodex register, model data: SAME Antares-Baureihe, SAME (SDF Group, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 110 hp (80.9 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 347 Nmcorrect |
| Speed at max. torque | 1,577 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,001 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 17correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,590 mmcorrect |
|---|---|
| Width | 2,220 mmcorrect |
| Height | 2,820 mmcorrect |
| Wheelbase | 2,750 mmcorrect |
| Ground clearance | 565 mmcorrect |
| Unladen weight | 4,855 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24 V/24 R, 36 V/36 R and 48 V/48 Rcorrect |
| Front tyres | 14.9 R 30 AScorrect |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 16.7 kW/t (81 kW / 4.9 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME (SLH) ANTARES 110 have?
The SAME (SLH) ANTARES 110 delivers 110 hp.
How much does the SAME (SLH) ANTARES 110 weigh?
The unladen weight is 4,855 kg.
What engine does the SAME (SLH) ANTARES 110 have?
6 cylinders, 6,001 cm³ displacement, Diesel.
How fast does the SAME (SLH) ANTARES 110 go?
Top speed is 40 km/h.
What are the dimensions of the SAME (SLH) ANTARES 110?
4,590 mm × 2,220 mm × 2,820 mm.
When was the SAME (SLH) ANTARES 110 built?
Production years: 1991–1996.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 24 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
