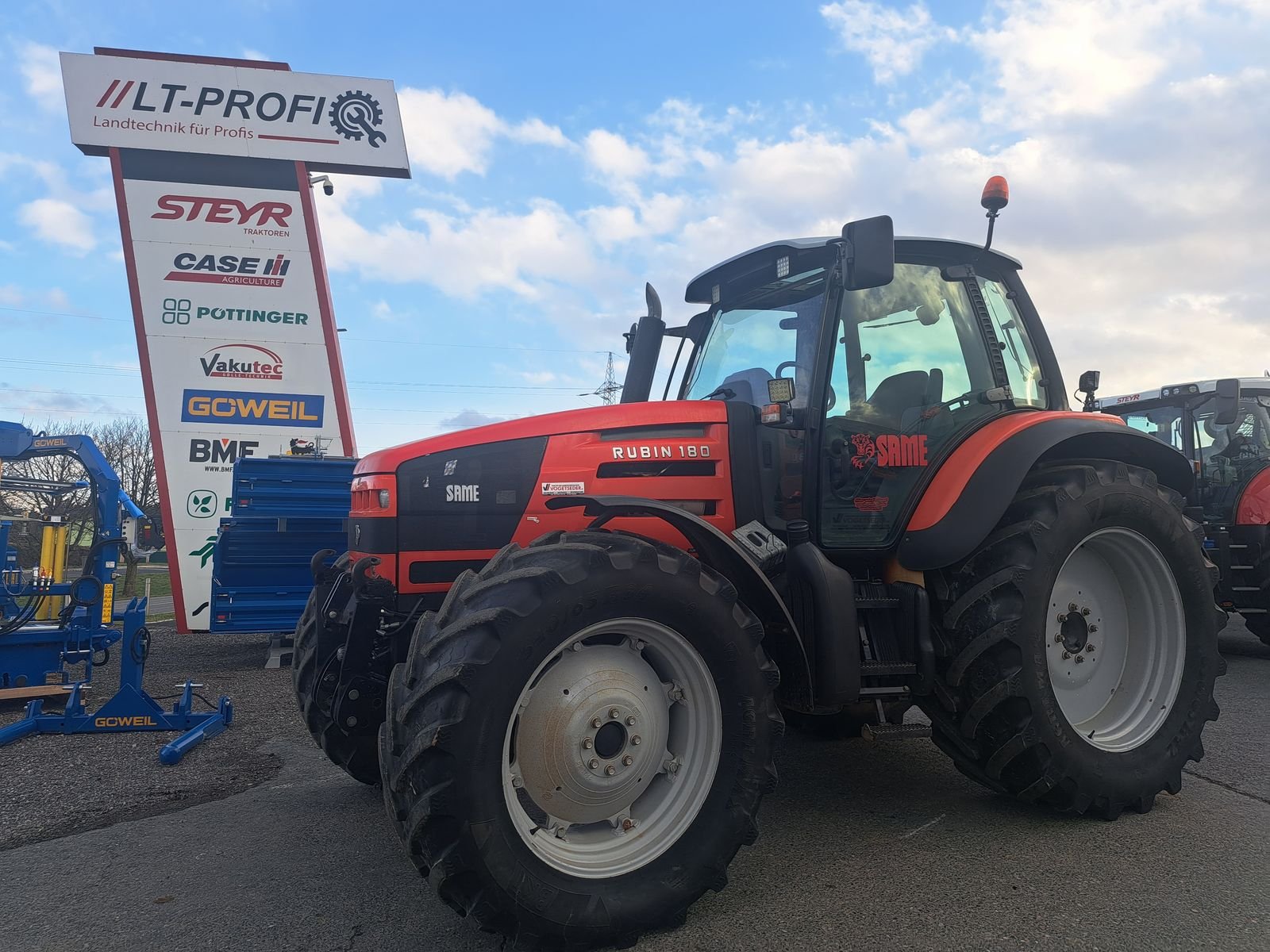

SAME RUBIN 180

Built: 2000–2004 · Series: RUBIN-Baureihe

More machines from model year 2000

Source: https://www.landwirt.com/detail/same-rubin-180-dt-5416559 l

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The SAME RUBIN 180 belongs to the RUBIN series. Production: 2000–2004. The engine delivers 180 hp (132.4 kW), has 6 cylinders, with a displacement of 6,000 cm³. Torque is 750 Nm. Rated speed is 2,350 rpm. The machine is 4,861 mm long, 2,426 mm wide and 2,970 mm high. The unladen weight is 7,100 kg. The wheelbase measures 2,850 mm. Ground clearance is 594 mm. Top speed is 40 km/h. The tank holds 400 litres. Transmission: 18 V/18 R and 27 V/27 R. The engine is water-cooled. Tyres: front 480/70 R 34 AS, rear 580/70 R 42 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 16:1. Construction: unit construction (no separate frame). The linkage is category III. The PTO runs at 540/1000 rpm. The RUBIN-Baureihe series covers 4 models. Rated output within it ranges from 120 to 180 hp; the RUBIN 180 sits at the top of that range with 180 hp. Its immediate neighbours are the RUBIN 160 below it with 160 hp. Unladen weight within it ranges from 6,100 to 7,100 kg; here the RUBIN 180 sits at the top of that range with 7,100 kg. 265 SAME models across 29 series are on record.

SAME Rubin series: the top of the field-tractor range from the SDF group in Treviglio, four types from Rubin 120 to 180, 88.3 to 132.4 kW from consistently six-cylinder engines, 6,100 to 7,100 kg kerb weight

The Rubin series formed, at SAME of Treviglio under the SDF group, the top end of the field-tractor range. The models Rubin 120, 135, 160 and 180 state engine power directly in hp through their number; the four types are thus clearly ranked by power class. Within the SDF group, Rubin complemented the independent Deutz-Fahr and Lamborghini brands, which offered their own large-tractor ranges in a similar power class.

Read on 3 more paragraphs

The register lists 4 versions with 88.3 to 132.4 kW, or 120 to 180 hp, from consistently six-cylinder engines of 6,000 to 6,001cc, torque from 498 to 750 Nm at 2,350 rpm, kerb weights from 6,100 to 7,100 kg, lengths from 4,670 to 4,861 mm, widths from 2,426 to 2,450 mm and heights from 2,880 to 2,970 mm.

As a large tractor, the Rubin series targeted large arable farms with high drawbar-pull requirements, such as heavy tillage and work with wide attached implements, competing in this class with Fiat, Case IH and Fendt models of similar power. The high torque and six-cylinder layout suited towing heavy trailed implements such as ploughs, subsoilers and large trailers.

When buying used, check operating hours, clutch and gearbox condition given the high torque, engine and hydraulic oil-tightness, and corrosion on the cab and chassis; spare parts supply runs through the SDF dealer network for the SAME brand.

Sources: SpecCodex register, model data: SAME Rubin-Baureihe, SAME (SDF Group, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	180 hp (132.4 kW)correct
Rated speed	2,350 rpmcorrect
Torque	750 Nmcorrect
Cylinders	6correct
Displacement	6,000 cm³correct
Bore	105 mmcorrect
Stroke	115.5 mmcorrect
Compression ratio	16correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,861 mmcorrect
Width	2,426 mmcorrect
Height	2,970 mmcorrect
Wheelbase	2,850 mmcorrect
Ground clearance	594 mmcorrect
Unladen weight	7,100 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	18 V/18 R and 27 V/27 Rcorrect
Front tyres	480/70 R 34 AScorrect
Rear tyres	580/70 R 42 AScorrect
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	400 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Other data

Linkage category	Cat IIIcorrect
PTO speed	540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 18.6 kW/t (132 kW / 7.1 t)

Power class: Large (100–180 hp)

Stronger than 89% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME RUBIN 180 have?

The SAME RUBIN 180 delivers 180 hp.

How much does the SAME RUBIN 180 weigh?

The unladen weight is 7,100 kg.

What engine does the SAME RUBIN 180 have?

6 cylinders, 6,000 cm³ displacement, Diesel.

How fast does the SAME RUBIN 180 go?

Top speed is 40 km/h.

What are the dimensions of the SAME RUBIN 180?

4,861 mm × 2,426 mm × 2,970 mm.

When was the SAME RUBIN 180 built?

Production years: 2000–2004.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
