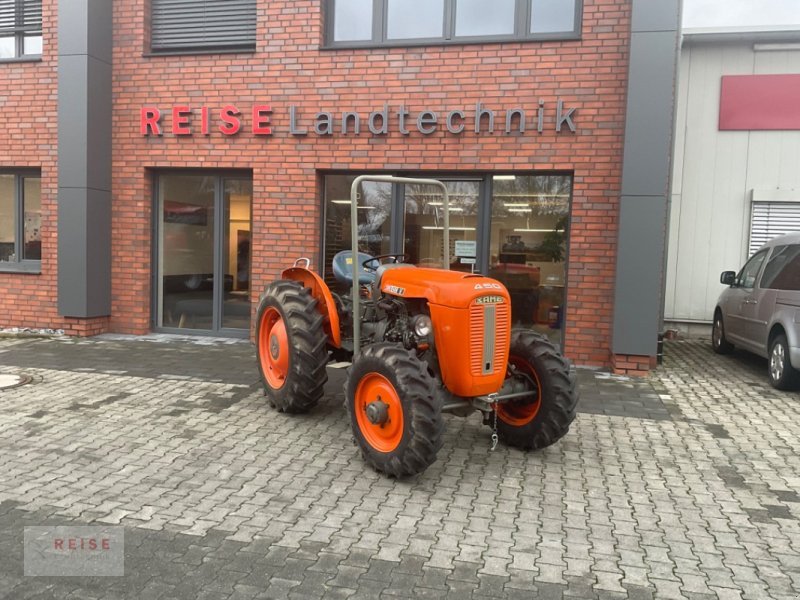

SAME 450/V (DT)
Built: 1963–1965 · Series: Nummern-Baureihe
More machines from model year 1963
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SAME numbered range (Treviglio) – early Italian diesel and four-wheel-drive tractors with DT for Doppia Trazione: 240 to 480 DT, two- to four-cylinders of 2.5 to 5.0 litres, 31 to 60 kW, 1.68 to 2.7 t
SAME – Società Anonima Motori Endotermici – was founded in 1942 by Francesco Cassani in Treviglio, Lombardy, and is counted among Italy's pioneers of the diesel tractor and of four-wheel drive in agriculture; the plainly numbered 240 to 480 models belong to the company's early ranges, before SAME moved to named series from the 1970s. The DT abbreviation stands at SAME for Doppia Trazione, meaning four-wheel drive, and the V on the 450/V model for the narrow vineyard version.
Read on 3 more paragraphs
The register lists 6 versions with 30.9 to 60.3 kW from two- to four-cylinder diesels of 2,491 to 4,980 cm³, unladen weights from 1,680 to 2,700 kg, lengths from 2,835 to 3,393 mm, widths from 1,602 to 1,891 mm and heights from 1,484 to 1,730 mm; one version is listed at 50 hp.
The numbered range served the Italian post-war market, where the four-wheel drive of the DT models gave an advantage on the hilly farmland of northern Italy; SAME later expanded the brand together with Lamborghini, Hürlimann and Deutz-Fahr into the SDF group that still exists today.
On used tractors, engine and injection pump, clutch and gearbox, on DT models also the front-axle transfer case and the drive shafts, hydraulics and brakes, and sheet metal and frame for rust count; parts now run through the SDF/Same-Deutz-Fahr dealer network.
Sources: SpecCodex register, model data: SAME Nummern-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 50 hp (36.8 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,402 cm³correct |
| Bore | 95 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,835 mmcorrect |
|---|---|
| Width | 1,640 mmcorrect |
| Height | 1,490 mmcorrect |
| Wheelbase | 1,840 mmcorrect |
| Ground clearance | 420 mmcorrect |
| Unladen weight | 1,730 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 6 V/1 Rcorrect |
| Forward gears | 6correct |
| Reverse gears | 1correct |
| Front tyres | 6.00-16 ASF (DT: 7.50-20 AS)correct |
| Rear tyres | 11-28 AS (DT: 10-28 AS)correct |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 21.3 kW/t (37 kW / 1.7 t)
Power class: Universal (40–100 hp)
Stronger than 34% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME 450/V (DT) have?
The SAME 450/V (DT) delivers 50 hp.
How much does the SAME 450/V (DT) weigh?
The unladen weight is 1,730 kg.
What engine does the SAME 450/V (DT) have?
4 cylinders, 3,402 cm³ displacement, Diesel.
How fast does the SAME 450/V (DT) go?
Top speed is 30 km/h.
What are the dimensions of the SAME 450/V (DT)?
2,835 mm × 1,640 mm × 1,490 mm.
When was the SAME 450/V (DT) built?
Production years: 1963–1965.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
