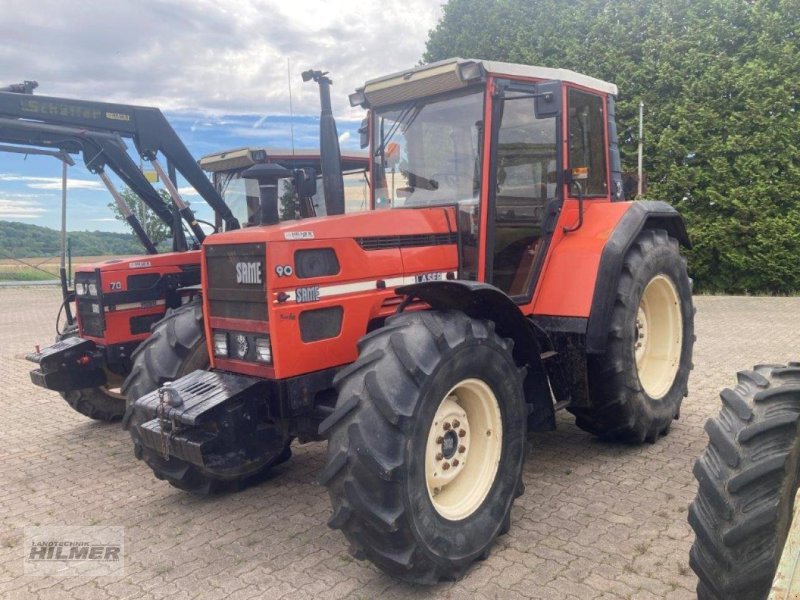

SAME LASER 90 (DT)

Built: 1985–1991 · Series: LASER-Baureihe

More machines from model year 1985

Source: https://www.technikboerse.com/gebraucht/traktor-357/same-101

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The LASER series from SAME includes the LASER 90 (DT). Production: 1985–1991. The engine delivers 88 hp (64.7 kW), has 4 cylinders, with a displacement of 4,154 cm³. Torque is 303 Nm. Rated speed is 2,270 rpm. The machine is 3,715 mm long, 2,096 mm wide and 2,676 mm high. The unladen weight is 3,860 kg. The wheelbase measures 2,467 mm. Ground clearance is 527 mm. Top speed is 30 km/h. Transmission: 24 V/12 R and 20 V/12 R. The engine is air-cooled. Tyres: front 7.50-18 ASF (DT: 16.9-24 AS), rear 18.4-34 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 120 mm. The compression ratio is 17:1. Maximum torque is reached at 1,370 rpm. Construction: unit construction (no separate frame). Rated output across the SAME range ranges from 12.5 to 269 hp; the LASER 90 (DT) sits in the lower part of that range with 88 hp. Its immediate neighbours are the GOLDEN 85 COMPATTO below it with 85 hp and the Explorer II 90 Top above it with 90 hp. Rated output across the SAME range ranges from 9.2 to 198 kW; here the LASER 90 (DT) sits in the lower part of that range with 64.7 kW. 265 SAME models across 29 series are on record.

SAME LASER range – four-wheel-drive tractors from Treviglio: LASER 90 (DT) and LASER 100 (DT), four- and five-cylinder diesels of 4,154 to 5,193 cm³, 65 to 72 kW, unladen weights from 3,860 to 3,940 kg

The LASER range in the register comprises the LASER 90 (DT) and the LASER 100 (DT); the DT suffix at SAME stands for Doppia Trazione, four-wheel drive, fitted to both models here. The range was built at the parent plant in Treviglio near Bergamo, home of the brand founded in 1942 and today part of the SAME Deutz-Fahr group, in the mid-to-upper power class of the classic SAME four-cylinder tractors.

Read on 3 more paragraphs

The register lists here 2 versions with 64.7 to 72.1 kW from four- and five-cylinders of 4,154 to 5,193 cm³ at 2,200 to 2,270 revolutions per minute and a torque of 303 to 328 Nm. Unladen weights run from 3,860 to 3,940 kg, lengths from 3,715 to 3,885 mm, widths from 1,957 to 2,096 mm and heights from 2,676 to 2,702 mm.

At roughly 88 to 98 hp with four-wheel drive as standard, the LASER range covers the mid-to-upper segment of Italian multi-purpose tractors used for tillage, transport and running heavier mounted implements on mid-sized to larger farms.

On a used LASER, operating hours and the condition of the diesel, the function of clutch and shuttle, the state of the four-wheel drive including the front axle gearbox, tightness of the hydraulics, and corrosion on cab, mudguards and frame matter; parts run through the SAME Deutz-Fahr group network.

Sources: SpecCodex register, model data: SAME LASER, SAME (SAME Deutz-Fahr Group, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	88 hp (64.7 kW)correct
Rated speed	2,270 rpmcorrect
Torque	303 Nmcorrect
Speed at max. torque	1,370 rpmcorrect
Cylinders	4correct
Displacement	4,154 cm³correct
Bore	105 mmcorrect
Stroke	120 mmcorrect
Compression ratio	17correct
Cooling	air-cooledcorrect

Dimensions and weights

Length	3,715 mmcorrect
Width	2,096 mmcorrect
Height	2,676 mmcorrect
Wheelbase	2,467 mmcorrect
Ground clearance	527 mmcorrect
Unladen weight	3,860 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	24 V/12 R and 20 V/12 Rcorrect
Front tyres	7.50-18 ASF (DT: 16.9-24 AS)correct
Rear tyres	18.4-34 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 16.8 kW/t (65 kW / 3.9 t)

Power class: Universal (40–100 hp)

Stronger than 60% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME LASER 90 (DT) have?

The SAME LASER 90 (DT) delivers 88 hp.

How much does the SAME LASER 90 (DT) weigh?

The unladen weight is 3,860 kg.

What engine does the SAME LASER 90 (DT) have?

4 cylinders, 4,154 cm³ displacement, Diesel.

How fast does the SAME LASER 90 (DT) go?

Top speed is 30 km/h.

What are the dimensions of the SAME LASER 90 (DT)?

3,715 mm × 2,096 mm × 2,676 mm.

When was the SAME LASER 90 (DT) built?

Production years: 1985–1991.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
