Start › Tractors › SAME Lamborghini Hürlimann › XE series › H-307 XE

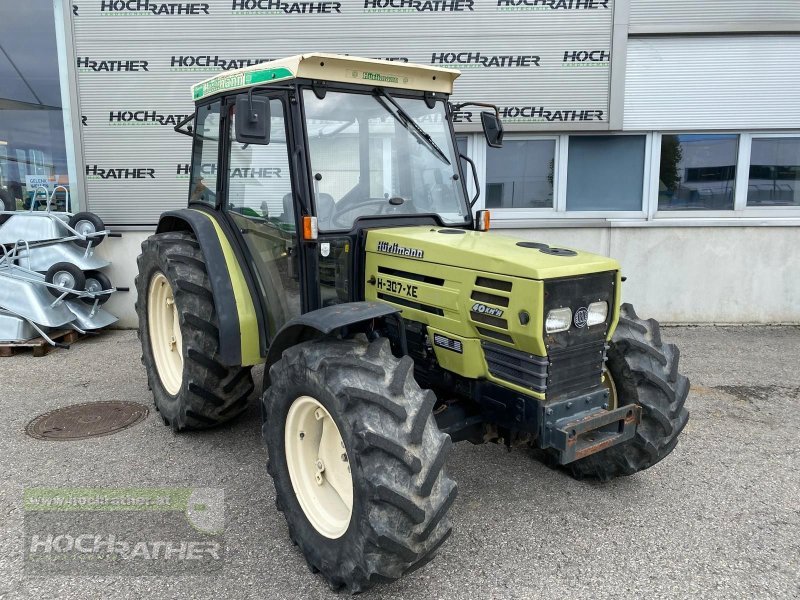

SAME Lamborghini Hürlimann H-307 XE

Built: 1993–2004 · Series: XE-Baureihe

More machines from model year 1993

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the H-307 XE, SAME Lamborghini Hürlimann offers a model from the XE series. Production: 1993–2004. The engine delivers 70 hp (51.5 kW), has 3 cylinders, with a displacement of 3,000 cm³. Torque is 241 Nm. Rated speed is 2,350 rpm. The machine is 3,680 mm long, 1,840 mm wide and 2,345 mm high. The unladen weight is 2,680 kg. The wheelbase measures 2,056 mm. Ground clearance is 365 mm. Top speed is 30 km/h. Transmission: 16V/8R or 12V/12R. The engine is air-cooled. Tyres: front 11.2 R 24 AS, rear 16.9 R 30 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 16:1. Maximum torque is reached at 1,500 rpm. Construction: unit construction (no separate frame). The XE-Baureihe series covers 3 models. Rated output within it ranges from 50 to 70 hp; the H-307 XE sits at the top of that range with 70 hp. Its immediate neighbours are the 306 XE below it with 60 hp. Unladen weight within it ranges from 2,290 to 2,680 kg; here the H-307 XE sits at the top of that range with 2,680 kg. 54 SAME Lamborghini Hürlimann models across 9 series are on record.

Hürlimann XE series – three-cylinder diesels with a uniform 3,000 cc displacement, 306 XE to H-307 XE, 37 to 52 kW, kerb weight 2,290 to 2,680 kg

Hürlimann's XE series forms the brand's compact three-cylinder class within the SDF group, headquartered in Treviglio, Italy. The register lists the types 306 XE, H-305 XE and H-307 XE here, which, despite differing power levels, are all based on the same three-cylinder diesel engine of exactly 3,000 cc; the power spread within the series thus came purely from engine tuning rather than differing displacement.

Read on 3 more paragraphs

The register lists 3 versions here with 36.8 to 51.5 kW from the common three-cylinder of 3,000 cc at a constant 2,350 rpm, torque of 167 to 241 Nm, kerb weights of 2,290 to 2,680 kg, lengths of 3,490 to 3,680 mm, widths of 1,740 to 1,870 mm and heights of 2,270 to 2,345 mm.

With its compact three-cylinder layout, the XE series positioned itself in the lower to mid power segment of Hürlimann tractors and targeted smaller and medium holdings looking for a manoeuvrable all-rounder for field and yard work, where handling mattered more than raw engine output.

When buying a used XE model, the key points are the condition of the engine and injection pump, wear on clutch and gearbox, and tightness of the hydraulics, plus corrosion on cab and chassis and the condition of tyres and wheels after years of yard work; spare parts for the XE series are available through the SDF group's parts channels.

Sources: SpecCodex register, model data: Hürlimann XE-Baureihe, Hürlimann (Hersteller, SDF-Gruppe)

Technical data

Engine

Fuel	dieselcorrect
Power	70 hp (51.5 kW)correct
Rated speed	2,350 rpmcorrect
Torque	241 Nmcorrect
Speed at max. torque	1,500 rpmcorrect
Cylinders	3correct
Displacement	3,000 cm³correct
Bore	105 mmcorrect
Stroke	115.5 mmcorrect
Compression ratio	16correct
Cooling	air-cooledcorrect

Dimensions and weights

Length	3,680 mmcorrect
Width	1,840 mmcorrect
Height	2,345 mmcorrect
Wheelbase	2,056 mmcorrect
Ground clearance	365 mmcorrect
Unladen weight	2,680 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	16V/8R or 12V/12Rcorrect
Front tyres	11.2 R 24 AScorrect
Rear tyres	16.9 R 30 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 19.2 kW/t (52 kW / 2.7 t)

Power class: Universal (40–100 hp)

Stronger than 48% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME Lamborghini Hürlimann H-307 XE have?

The SAME Lamborghini Hürlimann H-307 XE delivers 70 hp.

How much does the SAME Lamborghini Hürlimann H-307 XE weigh?

The unladen weight is 2,680 kg.

What engine does the SAME Lamborghini Hürlimann H-307 XE have?

3 cylinders, 3,000 cm³ displacement, Diesel.

How fast does the SAME Lamborghini Hürlimann H-307 XE go?

Top speed is 30 km/h.

What are the dimensions of the SAME Lamborghini Hürlimann H-307 XE?

3,680 mm × 1,840 mm × 2,345 mm.

When was the SAME Lamborghini Hürlimann H-307 XE built?

Production years: 1993–2004.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
