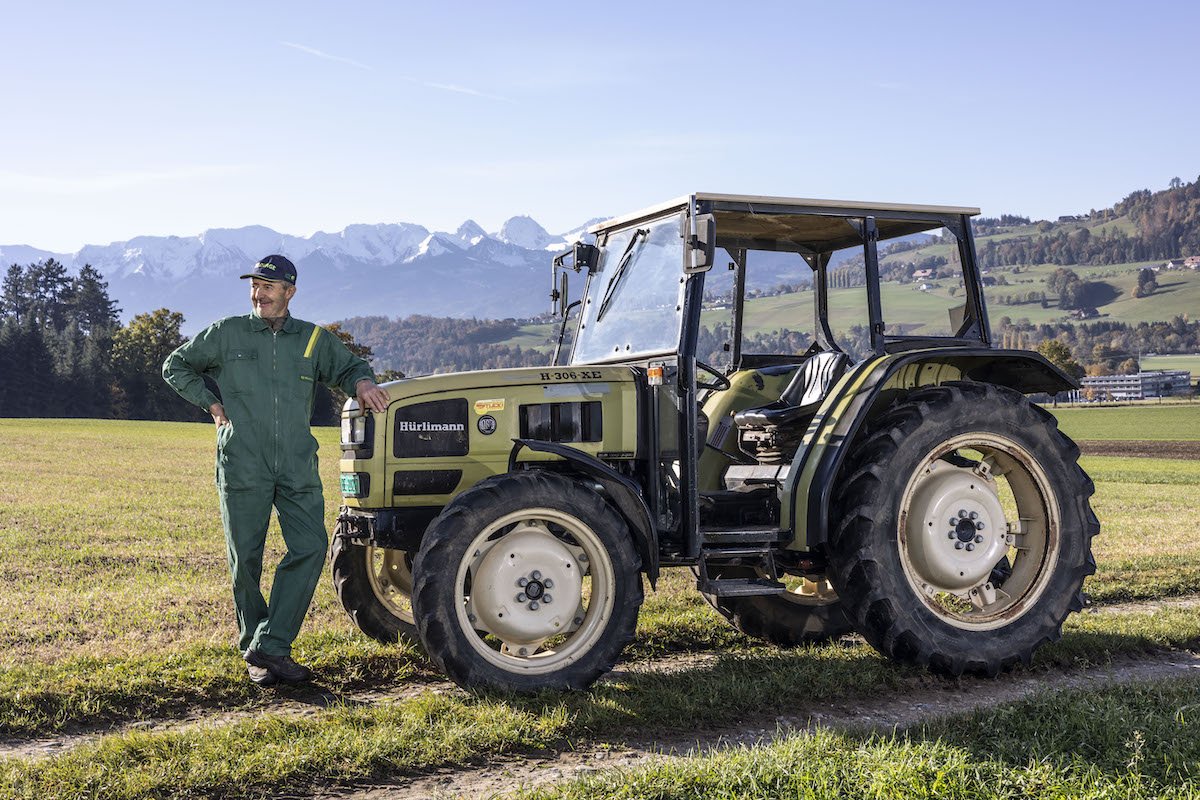

SAME Lamborghini Hürlimann 306 XE

Built: 1993–2004 · Series: XE-Baureihe

More machines from model year 1993

Source: https://www.lectura-specs.com/en/model/agricultural-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The SAME Lamborghini Hürlimann 306 XE is a model in the XE series. Production: 1993–2004. The engine delivers 60 hp (44.1 kW), has 3 cylinders, with a displacement of 3,000 cm³. Torque is 185 Nm. Rated speed is 2,350 rpm. The machine is 3,660 mm long, 1,870 mm wide and 2,270 mm high. The unladen weight is 2,485 kg. The wheelbase measures 2,056 mm. Ground clearance is 385 mm. Top speed is 30 km/h. Transmission: 18V/8R or 12V/12R. The engine is air-cooled. Tyres: front 11.2 R 20 AS, rear 14.9 R 28 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 17:1. Maximum torque is reached at 1,544 rpm. Construction: unit construction (no separate frame). The XE-Baureihe series covers 3 models. Rated output within it ranges from 50 to 70 hp; the 306 XE sits in the middle of that range with 60 hp. Its immediate neighbours are the H-305 XE below it with 50 hp and the H-307 XE above it with 70 hp. Unladen weight within it ranges from 2,290 to 2,680 kg; here the 306 XE sits in the middle of that range with 2,485 kg. 54 SAME Lamborghini Hürlimann models across 9 series are on record.

Hürlimann XE series – three-cylinder diesels with a uniform 3,000 cc displacement, 306 XE to H-307 XE, 37 to 52 kW, kerb weight 2,290 to 2,680 kg

Hürlimann's XE series forms the brand's compact three-cylinder class within the SDF group, headquartered in Treviglio, Italy. The register lists the types 306 XE, H-305 XE and H-307 XE here, which, despite differing power levels, are all based on the same three-cylinder diesel engine of exactly 3,000 cc; the power spread within the series thus came purely from engine tuning rather than differing displacement.

Read on 3 more paragraphs

The register lists 3 versions here with 36.8 to 51.5 kW from the common three-cylinder of 3,000 cc at a constant 2,350 rpm, torque of 167 to 241 Nm, kerb weights of 2,290 to 2,680 kg, lengths of 3,490 to 3,680 mm, widths of 1,740 to 1,870 mm and heights of 2,270 to 2,345 mm.

With its compact three-cylinder layout, the XE series positioned itself in the lower to mid power segment of Hürlimann tractors and targeted smaller and medium holdings looking for a manoeuvrable all-rounder for field and yard work, where handling mattered more than raw engine output.

When buying a used XE model, the key points are the condition of the engine and injection pump, wear on clutch and gearbox, and tightness of the hydraulics, plus corrosion on cab and chassis and the condition of tyres and wheels after years of yard work; spare parts for the XE series are available through the SDF group's parts channels.

Sources: SpecCodex register, model data: Hürlimann XE-Baureihe, Hürlimann (Hersteller, SDF-Gruppe)

Technical data

Engine

Fuel	dieselcorrect
Power	60 hp (44.1 kW)correct
Rated speed	2,350 rpmcorrect
Torque	185 Nmcorrect
Speed at max. torque	1,544 rpmcorrect
Cylinders	3correct
Displacement	3,000 cm³correct
Bore	105 mmcorrect
Stroke	115.5 mmcorrect
Compression ratio	17correct
Cooling	air-cooledcorrect

Dimensions and weights

Length	3,660 mmcorrect
Width	1,870 mmcorrect
Height	2,270 mmcorrect
Wheelbase	2,056 mmcorrect
Ground clearance	385 mmcorrect
Unladen weight	2,485 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	18V/8R or 12V/12Rcorrect
Front tyres	11.2 R 20 AScorrect
Rear tyres	14.9 R 28 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 17.7 kW/t (44 kW / 2.5 t)

Power class: Universal (40–100 hp)

Stronger than 41% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME Lamborghini Hürlimann 306 XE have?

The SAME Lamborghini Hürlimann 306 XE delivers 60 hp.

How much does the SAME Lamborghini Hürlimann 306 XE weigh?

The unladen weight is 2,485 kg.

What engine does the SAME Lamborghini Hürlimann 306 XE have?

3 cylinders, 3,000 cm³ displacement, Diesel.

How fast does the SAME Lamborghini Hürlimann 306 XE go?

Top speed is 30 km/h.

What are the dimensions of the SAME Lamborghini Hürlimann 306 XE?

3,660 mm × 1,870 mm × 2,270 mm.

When was the SAME Lamborghini Hürlimann 306 XE built?

Production years: 1993–2004.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
