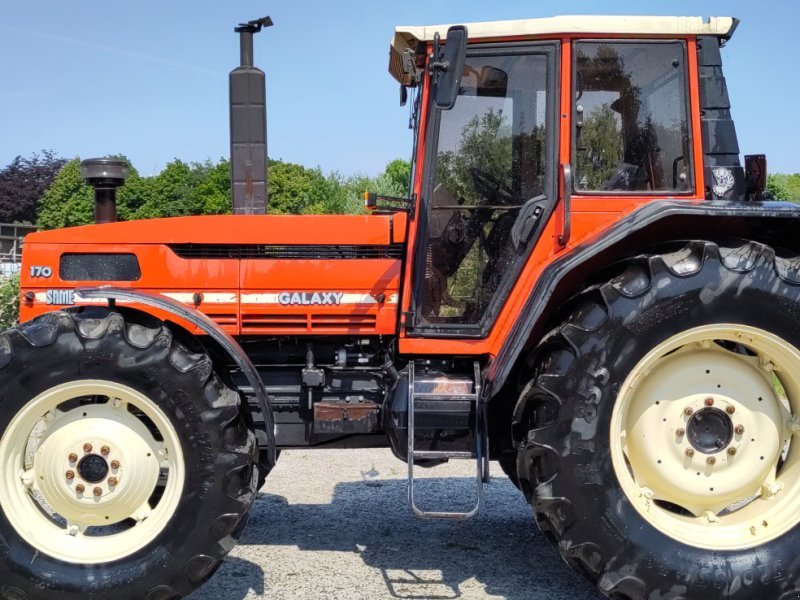

SAME Lamborghini Hürlimann GALAXY 170 DT
Built: 1983–1994 · Series: Other models
More machines from model year 1983
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Lamborghini/Hürlimann GALAXY 170 DT: four-wheel-drive six-cylinder tractor rated at 121.4 kW and 6,180 kg weight outside the named ranges
Lamborghini Trattori and Hürlimann were independent tractor brands that, alongside SAME and Deutz-Fahr, became part of the same corporate group and continued under their own names. The GALAXY 170 DT sits on the collective page for models outside the separately named ranges, yet it forms its own heavy power segment within the programme.
Read on 3 more paragraphs
The GALAXY 170 DT is powered by an air-and-oil-cooled six-cylinder engine of 6,234 cc, producing 121.4 kW (165 hp) at 2,200 rpm with 620 Nm of torque. The DT suffix stands for doppia trazione, meaning four-wheel drive. At a weight of 6,180 kg, a wheelbase of 2,856 mm and a width of 2,150 mm, the tractor reaches a design top speed of 30 km/h. The engine runs on diesel.
A six-cylinder of more than six litres with four-wheel drive marks a heavy field tractor for tillage and drawbar work demanding high pulling force. Air-and-oil cooling dispenses with a water-fed cooling circuit and was common on diesel engines of this origin. The power take-off runs at the standard 540 or 1,000 rpm, and the three-point hitch follows ISO 730, typically carrying category 2 implements at this weight.
Buying a used six-cylinder this old and this heavy, the air-and-oil cooling with its fan and the engagement of the front axle for four-wheel drive deserve particular attention. Also worth checking at inspection are the injection system, hydraulic tightness and the condition of the PTO bearings.
Sources: SpecCodex-Register: Kennwerte des Modells GALAXY 170 DT
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 165 hp (121.4 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 620 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,234 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 16correct |
| Injection pressure | 196 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,720 mmcorrect |
|---|---|
| Width | 2,150 mmcorrect |
| Height | 2,867 mmcorrect |
| Wheelbase | 2,856 mmcorrect |
| Ground clearance | 530 mmcorrect |
| Unladen weight | 6,180 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24 V/8 R and 27 V/9 Rcorrect |
| Front tyres | 16.9-30 AScorrect |
| Rear tyres | 20.8-38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 19.6 kW/t (121 kW / 6.2 t)
Power class: Large (100–180 hp)
Stronger than 87% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Lamborghini Hürlimann GALAXY 170 DT have?
The SAME Lamborghini Hürlimann GALAXY 170 DT delivers 165 hp.
How much does the SAME Lamborghini Hürlimann GALAXY 170 DT weigh?
The unladen weight is 6,180 kg.
What engine does the SAME Lamborghini Hürlimann GALAXY 170 DT have?
6 cylinders, 6,234 cm³ displacement, Diesel.
How fast does the SAME Lamborghini Hürlimann GALAXY 170 DT go?
Top speed is 30 km/h.
What are the dimensions of the SAME Lamborghini Hürlimann GALAXY 170 DT?
4,720 mm × 2,150 mm × 2,867 mm.
When was the SAME Lamborghini Hürlimann GALAXY 170 DT built?
Production years: 1983–1994.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
