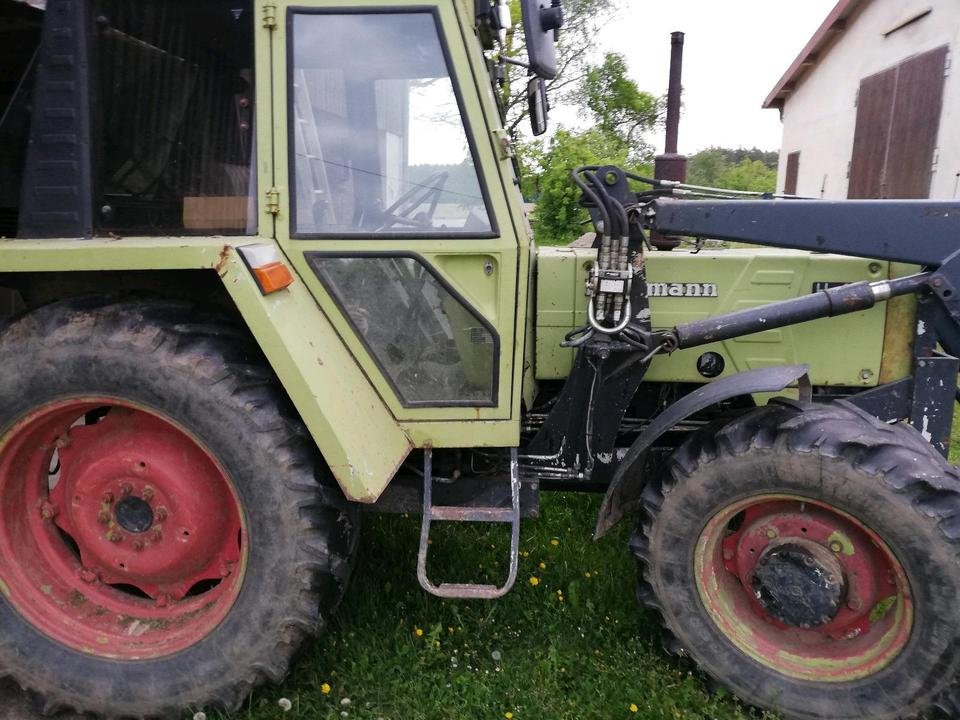

SAME Lamborghini Hürlimann H-6160 A
Built: 1979–1983 · Series: H-Baureihe
More machines from model year 1979
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hürlimann H series: Swiss mountain engineering within the SLH group, from the D-470 (A) to the H-362 (A), 35.3 to 147.2 kW, three- to six-cylinder engines with air or water cooling
In 1979 SAME took over Swiss tractor builder Hürlimann, and together with Lamborghini, acquired back in 1973, formed the SAME-Lamborghini-Hürlimann (SLH) group. The H series bundles the models carried under the Hürlimann badge from this era, known for chassis engineering built for mountain and slope work.
Read on 4 more paragraphs
The register lists 26 live models, from the D-470 (A) to the H-362 (A), built between 1979 and 2003. Output ranges from 35.3 to 147.2 kW, weight from 1,980 to 8,500 kg, displacement from 2,714 to 7,480 cm3, across three- to six-cylinder engines.
Characteristic of Hürlimann tractors from this period are standard four-wheel drive, a compact build height and a chassis tuned for Swiss terrain — the brand was already among the industry's 4WD pioneers even before the SLH era.
In 1995 the group also acquired Deutz-Fahr and has traded as SAME Deutz-Fahr (SDF) ever since — still the parent brand under which Hürlimann continues today.
Within the H series, the cooling method changes with engine size: the smaller two- and three-cylinder models ran air cooling, the larger four- to six-cylinder units water cooling – a sign that very different machines hide behind the same series name. When buying used, it is worth establishing the cooling method of the specific model first, since servicing and spares – a cooling fan here, a radiator and water pump there – differ fundamentally.
Sources: SpecCodex register, model data: Hürlimann H-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 158 hp (116.1 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 638 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,842 cm³correct |
| Bore | 110 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 16.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,450 mmcorrect |
|---|---|
| Width | 2,350 mmcorrect |
| Height | 2,920 mmcorrect |
| Wheelbase | 2,857 mmcorrect |
| Ground clearance | 490 mmcorrect |
| Unladen weight | 6,450 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/4R or 24V/8Rcorrect |
| Front tyres | 16.9 R 30 AScorrect |
| Rear tyres | 20.8 R 38 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 208correct |
Where this model stands
Power-to-weight ratio: 18 kW/t (116 kW / 6.5 t)
Power class: Large (100–180 hp)
Stronger than 85% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Lamborghini Hürlimann H-6160 A have?
The SAME Lamborghini Hürlimann H-6160 A delivers 158 hp.
How much does the SAME Lamborghini Hürlimann H-6160 A weigh?
The unladen weight is 6,450 kg.
What engine does the SAME Lamborghini Hürlimann H-6160 A have?
6 cylinders, 6,842 cm³ displacement, Diesel.
How fast does the SAME Lamborghini Hürlimann H-6160 A go?
Top speed is 25 km/h.
What are the dimensions of the SAME Lamborghini Hürlimann H-6160 A?
4,450 mm × 2,350 mm × 2,920 mm.
When was the SAME Lamborghini Hürlimann H-6160 A built?
Production years: 1979–1983.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
