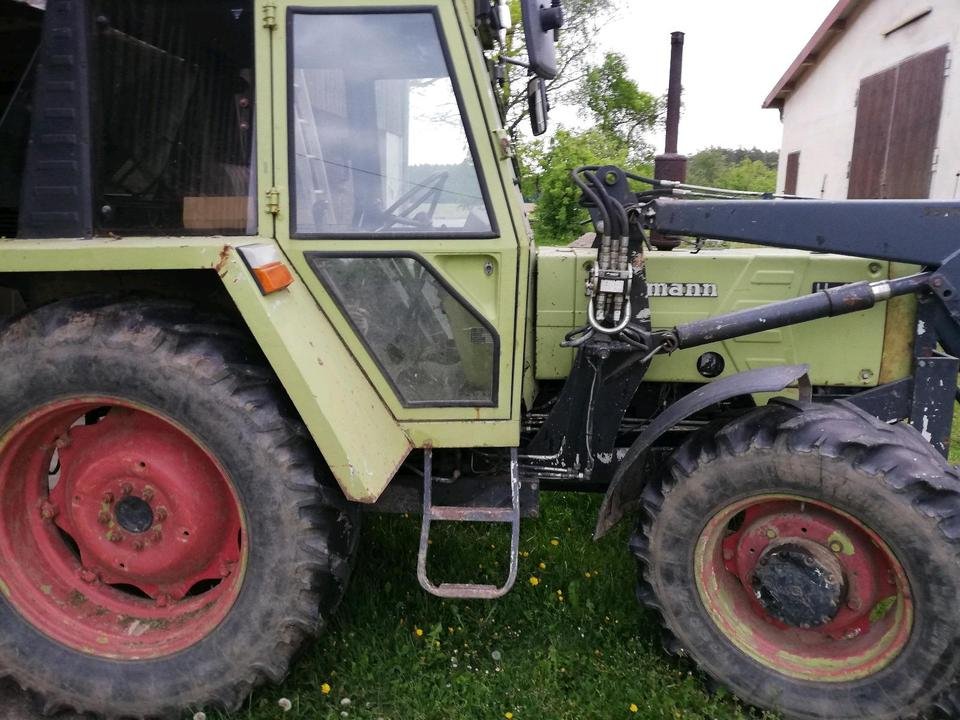

SAME Lamborghini Hürlimann H-490 (A)

Built: 1979–1983 · Series: H-Baureihe

More machines from model year 1979

Source: https://www.kleinanzeigen.de/s-anzeige/traktor-frontlader-hu

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the H-490 (A), SAME Lamborghini Hürlimann offers a model from the H series. Production: 1979–1983. The engine delivers 90 hp (66.2 kW), has 4 cylinders, with a displacement of 4,562 cm³. Torque is 352 Nm. Rated speed is 2,200 rpm. The machine is 4,230 mm long, 2,070 mm wide and 2,850 mm high. The unladen weight is 4,050 kg. The wheelbase measures 2,457 mm. Ground clearance is 350 mm. Top speed is 25 km/h. Transmission: 12V/3R, 20V/5R or 24V/6R. The engine is water-cooled. Tyres: front 9.00-16 ASF (A: 13.6/12-28 AS), rear 18.4/15-34 AS. The fuel is diesel. The bore measures 110 mm. The stroke is 120 mm. The compression ratio is 16.5:1. Maximum torque is reached at 1,300 rpm. Around 726 units were built. The H-Baureihe series covers 26 models. Rated output within it ranges from 48 to 200 hp; the H-490 (A) sits in the lower part of that range with 90 hp. Its immediate neighbours are the H-480 (A) below it with 82 hp and the H-496 Turbo (A) above it with 95 hp. Unladen weight within it ranges from 1,980 to 8,500 kg; here the H-490 (A) sits in the lower part of that range with 4,050 kg. 54 SAME Lamborghini Hürlimann models across 9 series are on record.

Hürlimann H series: Swiss mountain engineering within the SLH group, from the D-470 (A) to the H-362 (A), 35.3 to 147.2 kW, three- to six-cylinder engines with air or water cooling

In 1979 SAME took over Swiss tractor builder Hürlimann, and together with Lamborghini, acquired back in 1973, formed the SAME-Lamborghini-Hürlimann (SLH) group. The H series bundles the models carried under the Hürlimann badge from this era, known for chassis engineering built for mountain and slope work.

Read on 4 more paragraphs

The register lists 26 live models, from the D-470 (A) to the H-362 (A), built between 1979 and 2003. Output ranges from 35.3 to 147.2 kW, weight from 1,980 to 8,500 kg, displacement from 2,714 to 7,480 cm3, across three- to six-cylinder engines.

Characteristic of Hürlimann tractors from this period are standard four-wheel drive, a compact build height and a chassis tuned for Swiss terrain — the brand was already among the industry's 4WD pioneers even before the SLH era.

In 1995 the group also acquired Deutz-Fahr and has traded as SAME Deutz-Fahr (SDF) ever since — still the parent brand under which Hürlimann continues today.

Within the H series, the cooling method changes with engine size: the smaller two- and three-cylinder models ran air cooling, the larger four- to six-cylinder units water cooling – a sign that very different machines hide behind the same series name. When buying used, it is worth establishing the cooling method of the specific model first, since servicing and spares – a cooling fan here, a radiator and water pump there – differ fundamentally.

Sources: SpecCodex register, model data: Hürlimann H-Baureihe

Technical data

Engine

Fueldieselcorrect
Power90 hp (66.2 kW)correct
Rated speed2,200 rpmcorrect
Torque352 Nmcorrect
Speed at max. torque1,300 rpmcorrect
Cylinders4correct
Displacement4,562 cm³correct
Bore110 mmcorrect
Stroke120 mmcorrect
Compression ratio16.5correct
Coolingwater-cooledcorrect

Dimensions and weights

Length4,230 mmcorrect
Width2,070 mmcorrect
Height2,850 mmcorrect
Wheelbase2,457 mmcorrect
Ground clearance350 mmcorrect
Unladen weight4,050 kgcorrect

Drivetrain and chassis

Driverear- or four-wheel drivecorrect
Gearbox12V/3R, 20V/5R or 24V/6Rcorrect
Front tyres9.00-16 ASF (A: 13.6/12-28 AS)correct
Rear tyres18.4/15-34 AScorrect
Top speed25 km/hcorrect

Origin and approval

Units built726correct

Where this model stands

Power-to-weight ratio: 16.3 kW/t (66 kW / 4 t)

Power class: Universal (40–100 hp)

Stronger than 61% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME Lamborghini Hürlimann H-490 (A) have?

The SAME Lamborghini Hürlimann H-490 (A) delivers 90 hp.

How much does the SAME Lamborghini Hürlimann H-490 (A) weigh?

The unladen weight is 4,050 kg.

What engine does the SAME Lamborghini Hürlimann H-490 (A) have?

4 cylinders, 4,562 cm³ displacement, Diesel.

How fast does the SAME Lamborghini Hürlimann H-490 (A) go?

Top speed is 25 km/h.

What are the dimensions of the SAME Lamborghini Hürlimann H-490 (A)?

4,230 mm × 2,070 mm × 2,850 mm.

When was the SAME Lamborghini Hürlimann H-490 (A) built?

Production years: 1979–1983.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
