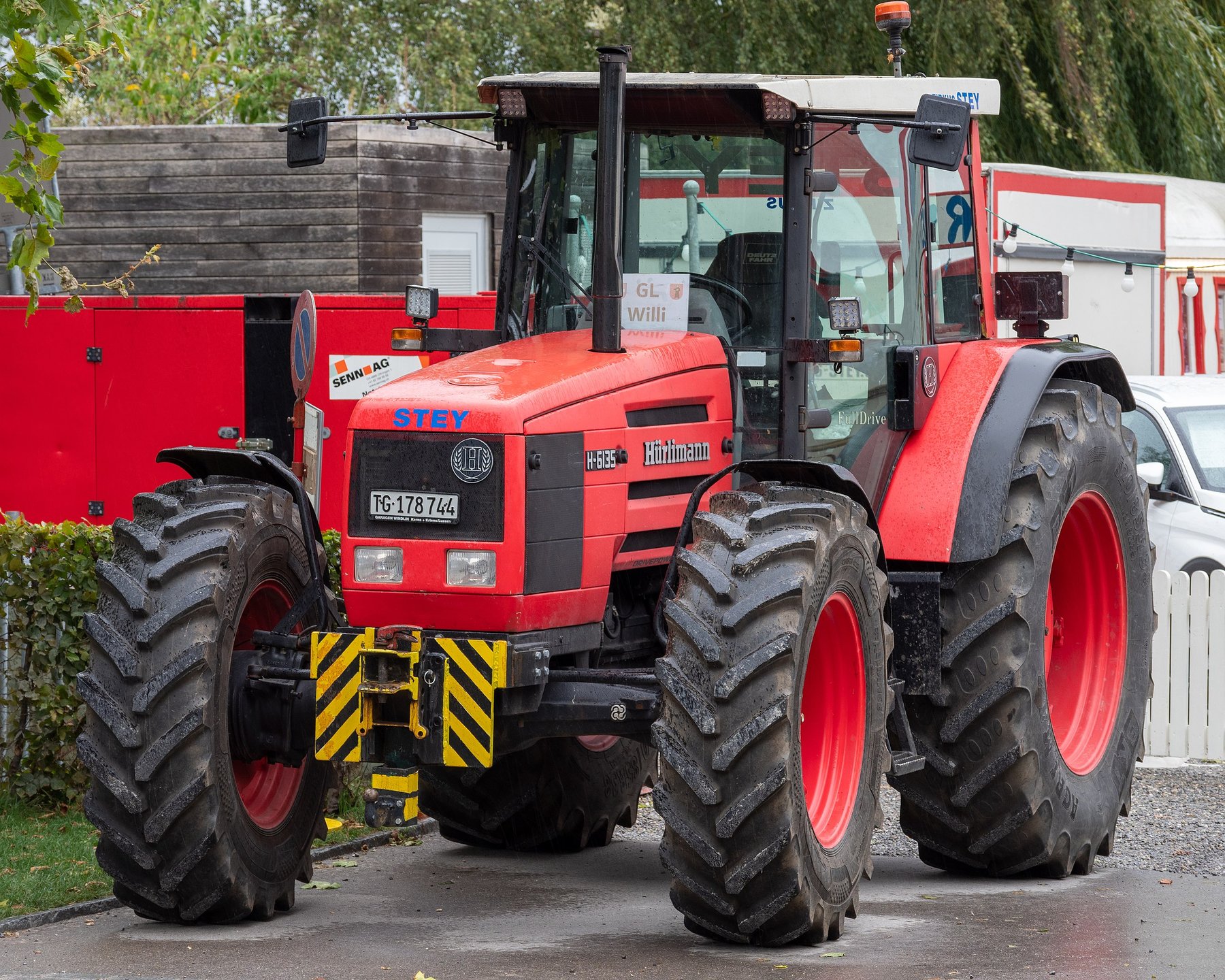

SAME Lamborghini Hürlimann H-6135 Elite

Built: 1991–1996 · Series: Elite-Reihe

More machines from model year 1991

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The H-6135 Elite from SAME Lamborghini Hürlimann is part of the Elite-Reihe series. Production: 1991–1996. The engine delivers 132 hp (97 kW), has 6 cylinders, with a displacement of 6,001 cm³. Torque is 490 Nm. Rated speed is 2,500 rpm. The machine is 5,140 mm long, 2,250 mm wide and 2,890 mm high. The unladen weight is 5,440 kg. The wheelbase measures 2,750 mm. Ground clearance is 520 mm. Top speed is 30 km/h. Transmission: 24V/24R. The engine is water-cooled. Tyres: front 16.9 R 30 AS, rear 20.8 R 38 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 16:1. Maximum torque is reached at 1,200 rpm. Construction: unit construction (no separate frame). The Elite-Reihe series covers 3 models. Rated output within it ranges from 103 to 132 hp; the H-6135 Elite sits at the top of that range with 132 hp. Its immediate neighbours are the H-6115 Elite below it with 115 hp. Unladen weight within it ranges from 3,920 to 5,440 kg; here the H-6135 Elite sits at the top of that range with 5,440 kg. 54 SAME Lamborghini Hürlimann models across 9 series are on record.

SAME Lamborghini Hürlimann Elite series – four- and six-cylinder diesels of 4,000 to 6,001 cc, 76 to 97 kW, H-4105 to H-6135 Elite

Hürlimann's Elite series was built under the SAME Lamborghini Hürlimann brand group, headquartered in Treviglio, Italy, from which the SDF group later emerged. The type designations H-4105, H-6115 and H-6135 follow a recognisable logic: the first digit states the cylinder count, the following digits the approximate engine output in horsepower, so the H-4105 appears as a four-cylinder with roughly 105 hp and the H-6135 as a six-cylinder with roughly 135 hp. All three Elite models sat in the upper mid-range segment of Hürlimann tractors.

Read on 3 more paragraphs

The register lists 3 versions here with 75.7 to 97 kW from four- and six-cylinder diesel engines of 4,000 to 6,001 cc at a constant 2,500 rpm, torque of 325 to 490 Nm, kerb weights of 3,920 to 5,440 kg, lengths of 4,560 to 5,140 mm, widths of 2,100 to 2,250 mm and heights of 2,610 to 2,890 mm.

The Elite series competed with comparable mid-range tractors from Deutz-Fahr, Fendt and Case IH, and targeted mixed farms looking for a powerful all-rounder for field work, transport and PTO work.

When buying a used Elite model, the key points are the condition of the engine and injection system, wear on clutch and gearbox, and tightness of the hydraulics, plus corrosion on the cab and chassis; since Hürlimann now belongs to the SDF group, spare parts for the engine and many chassis components run through Deutz-Fahr and Same parts channels.

Sources: SpecCodex register, model data: SAME Lamborghini Hürlimann Elite-Reihe, Hürlimann (Hersteller, SDF-Gruppe)

Technical data

Engine

Fuel	dieselcorrect
Power	132 hp (97 kW)correct
Rated speed	2,500 rpmcorrect
Torque	490 Nmcorrect
Speed at max. torque	1,200 rpmcorrect
Cylinders	6correct
Displacement	6,001 cm³correct
Bore	105 mmcorrect
Stroke	115.5 mmcorrect
Compression ratio	16correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	5,140 mmcorrect
Width	2,250 mmcorrect
Height	2,890 mmcorrect
Wheelbase	2,750 mmcorrect
Ground clearance	520 mmcorrect
Unladen weight	5,440 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	24V/24Rcorrect
Front tyres	16.9 R 30 AScorrect
Rear tyres	20.8 R 38 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 17.8 kW/t (97 kW / 5.4 t)

Power class: Large (100–180 hp)

Stronger than 78% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME Lamborghini Hürlimann H-6135 Elite have?

The SAME Lamborghini Hürlimann H-6135 Elite delivers 132 hp.

How much does the SAME Lamborghini Hürlimann H-6135 Elite weigh?

The unladen weight is 5,440 kg.

What engine does the SAME Lamborghini Hürlimann H-6135 Elite have?

6 cylinders, 6,001 cm³ displacement, Diesel.

How fast does the SAME Lamborghini Hürlimann H-6135 Elite go?

Top speed is 30 km/h.

What are the dimensions of the SAME Lamborghini Hürlimann H-6135 Elite?

5,140 mm × 2,250 mm × 2,890 mm.

When was the SAME Lamborghini Hürlimann H-6135 Elite built?

Production years: 1991–1996.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
