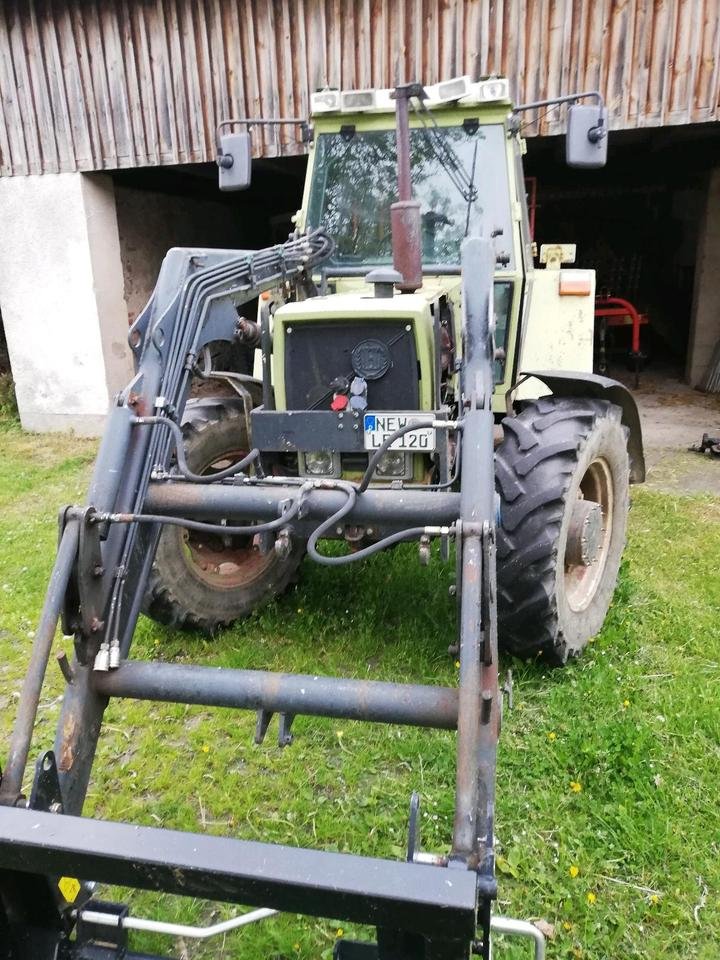

SAME Lamborghini Hürlimann H-4105 Elite

Built: 1989–1995 · Series: Elite-Reihe

More machines from model year 1989

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The SAME Lamborghini Hürlimann H-4105 Elite belongs to the Elite-Reihe series. Production: 1989–1995. The engine delivers 103 hp (75.7 kW), has 4 cylinders, with a displacement of 4,000 cm³. Torque is 325 Nm. Rated speed is 2,500 rpm. The machine is 4,680 mm long, 2,100 mm wide and 2,610 mm high. The unladen weight is 3,920 kg. The wheelbase measures 2,320 mm. Ground clearance is 475 mm. Top speed is 30 km/h. Transmission: 30V/30R or 40V/40R. The engine is water-cooled. Tyres: front 16.9 R 24 AS, rear 18.4 R 34 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 16:1. Maximum torque is reached at 1,650 rpm. Construction: unit construction (no separate frame). The Elite-Reihe series covers 3 models. Rated output within it ranges from 103 to 132 hp; the H-4105 Elite sits at the bottom of that range with 103 hp. Its immediate neighbours are the H-6115 Elite above it with 115 hp. Unladen weight within it ranges from 3,920 to 5,440 kg; here the H-4105 Elite sits at the bottom of that range with 3,920 kg. 54 SAME Lamborghini Hürlimann models across 9 series are on record.

SAME Lamborghini Hürlimann Elite series – four- and six-cylinder diesels of 4,000 to 6,001 cc, 76 to 97 kW, H-4105 to H-6135 Elite

Hürlimann's Elite series was built under the SAME Lamborghini Hürlimann brand group, headquartered in Treviglio, Italy, from which the SDF group later emerged. The type designations H-4105, H-6115 and H-6135 follow a recognisable logic: the first digit states the cylinder count, the following digits the approximate engine output in horsepower, so the H-4105 appears as a four-cylinder with roughly 105 hp and the H-6135 as a six-cylinder with roughly 135 hp. All three Elite models sat in the upper mid-range segment of Hürlimann tractors.

Read on 3 more paragraphs

The register lists 3 versions here with 75.7 to 97 kW from four- and six-cylinder diesel engines of 4,000 to 6,001 cc at a constant 2,500 rpm, torque of 325 to 490 Nm, kerb weights of 3,920 to 5,440 kg, lengths of 4,560 to 5,140 mm, widths of 2,100 to 2,250 mm and heights of 2,610 to 2,890 mm.

The Elite series competed with comparable mid-range tractors from Deutz-Fahr, Fendt and Case IH, and targeted mixed farms looking for a powerful all-rounder for field work, transport and PTO work.

When buying a used Elite model, the key points are the condition of the engine and injection system, wear on clutch and gearbox, and tightness of the hydraulics, plus corrosion on the cab and chassis; since Hürlimann now belongs to the SDF group, spare parts for the engine and many chassis components run through Deutz-Fahr and Same parts channels.

Sources: SpecCodex register, model data: SAME Lamborghini Hürlimann Elite-Reihe, Hürlimann (Hersteller, SDF-Gruppe)

Technical data

Engine

Fuel	dieselcorrect
Power	103 hp (75.7 kW)correct
Rated speed	2,500 rpmcorrect
Torque	325 Nmcorrect
Speed at max. torque	1,650 rpmcorrect
Cylinders	4correct
Displacement	4,000 cm³correct
Bore	105 mmcorrect
Stroke	115.5 mmcorrect
Compression ratio	16correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,680 mmcorrect
Width	2,100 mmcorrect
Height	2,610 mmcorrect
Wheelbase	2,320 mmcorrect
Ground clearance	475 mmcorrect
Unladen weight	3,920 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	30V/30R or 40V/40Rcorrect
Front tyres	16.9 R 24 AScorrect
Rear tyres	18.4 R 34 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 19.3 kW/t (76 kW / 3.9 t)

Power class: Large (100–180 hp)

Stronger than 68% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME Lamborghini Hürlimann H-4105 Elite have?

The SAME Lamborghini Hürlimann H-4105 Elite delivers 103 hp.

How much does the SAME Lamborghini Hürlimann H-4105 Elite weigh?

The unladen weight is 3,920 kg.

What engine does the SAME Lamborghini Hürlimann H-4105 Elite have?

4 cylinders, 4,000 cm³ displacement, Diesel.

How fast does the SAME Lamborghini Hürlimann H-4105 Elite go?

Top speed is 30 km/h.

What are the dimensions of the SAME Lamborghini Hürlimann H-4105 Elite?

4,680 mm × 2,100 mm × 2,610 mm.

When was the SAME Lamborghini Hürlimann H-4105 Elite built?

Production years: 1989–1995.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
