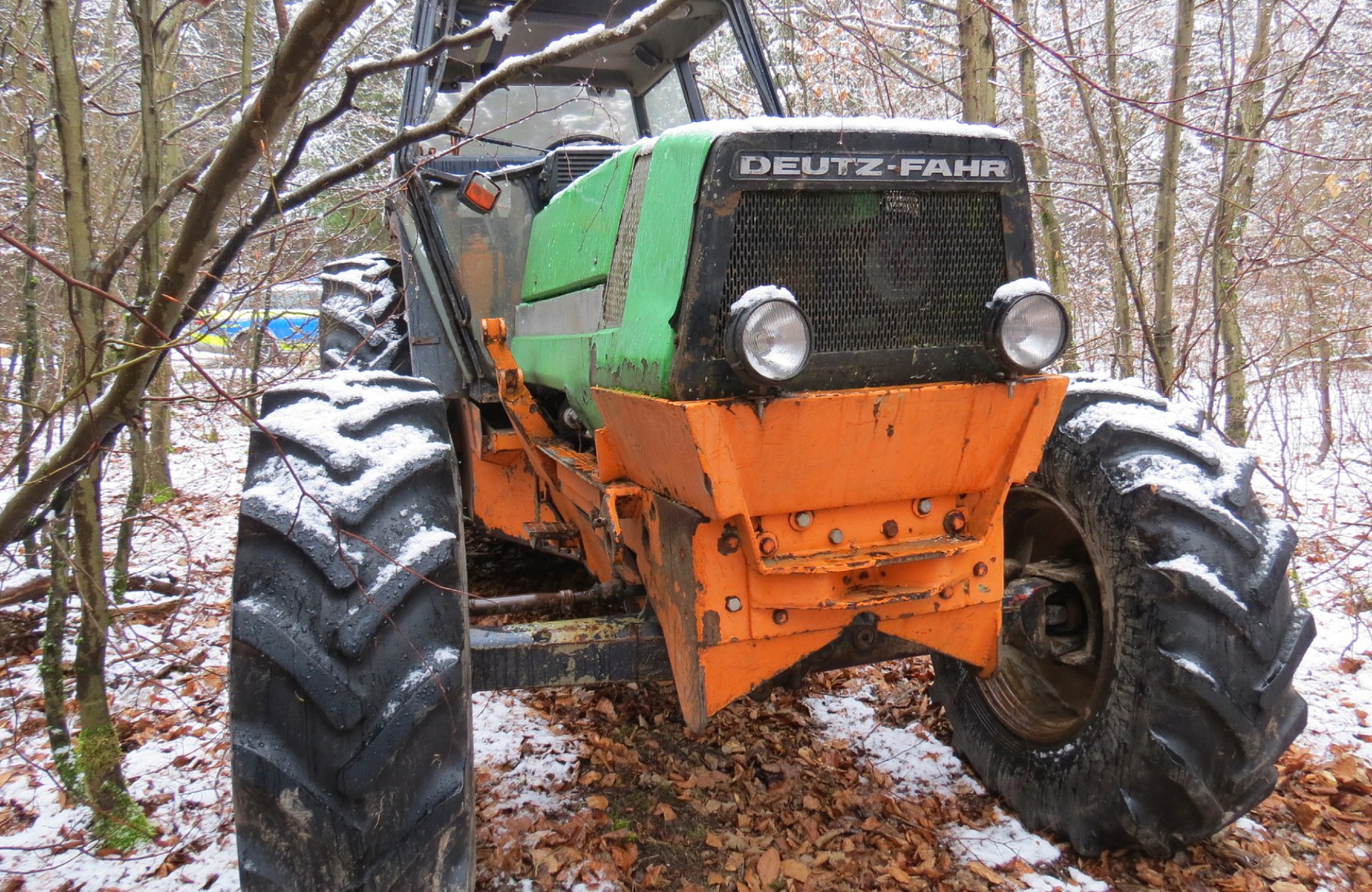

SAME Deutz Fahr H-606 XA
Built: 1995–2.000 · Series: XA-Baureihe
More machines from model year 1995
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hürlimann XA: the Swiss compact class within the SDF group, from the H-56 XA to the H-90 XA, 41.2 to 62.5 kW, three- and four-cylinder engines with water cooling
The XA series carries on the tradition of the Swiss brand Hürlimann within the SDF group, with the characteristic "H" prefix in model names and a design built around compact, agile tractors.
Read on 4 more paragraphs
The register lists 8 live models, from the H-56 XA to the H-90 XA, built between 1995 and 2014. Output ranges from 41.2 to 62.5 kW, weight from 2,600 to 3,260 kg, displacement from 3,000 to 4,000 cm3, across three- and four-cylinder engines.
The long production span of nearly two decades shows the XA series was continuously developed without losing its basic character as a compact Hürlimann all-rounder.
As one of several XA generations within the SDF group, this series targets operations that value Hürlimann's specific Swiss chassis tradition.
The 30 to 40 km/h top speed recorded in the register shows the XA series was supplied both with a simpler field gearing and with a faster road gearing; when buying used, it is worth matching the fitted gearing to the intended use – field work or more frequent road travel. Checking the actual gearbox ratio against the type plate before a longer road journey avoids surprises with the maximum permitted speed. Like the third XA generation, this series also shares drivetrain components with other SDF group brands, which eases spares supply through the SDF dealer network.
Sources: SpecCodex register, model data: Hürlimann XA-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 60 hp (44.1 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 188.6 Nmcorrect |
| Speed at max. torque | 1,408 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,241 mmcorrect |
|---|---|
| Width | 1,785 mmcorrect |
| Height | 2,600 mmcorrect |
| Wheelbase | 2,056 mmcorrect |
| Ground clearance | 390 mmcorrect |
| Unladen weight | 2,990 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 45V/45R or 20V/10Rcorrect |
| Front tyres | 360/70 R 20 AScorrect |
| Rear tyres | 420/70 R 30 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 14.7 kW/t (44 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 41% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr H-606 XA have?
The SAME Deutz Fahr H-606 XA delivers 60 hp.
How much does the SAME Deutz Fahr H-606 XA weigh?
The unladen weight is 2,990 kg.
What engine does the SAME Deutz Fahr H-606 XA have?
3 cylinders, 3,000 cm³ displacement, Diesel.
How fast does the SAME Deutz Fahr H-606 XA go?
Top speed is 30 km/h.
What are the dimensions of the SAME Deutz Fahr H-606 XA?
4,241 mm × 1,785 mm × 2,600 mm.
When was the SAME Deutz Fahr H-606 XA built?
Production years: 1995–2.000.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
