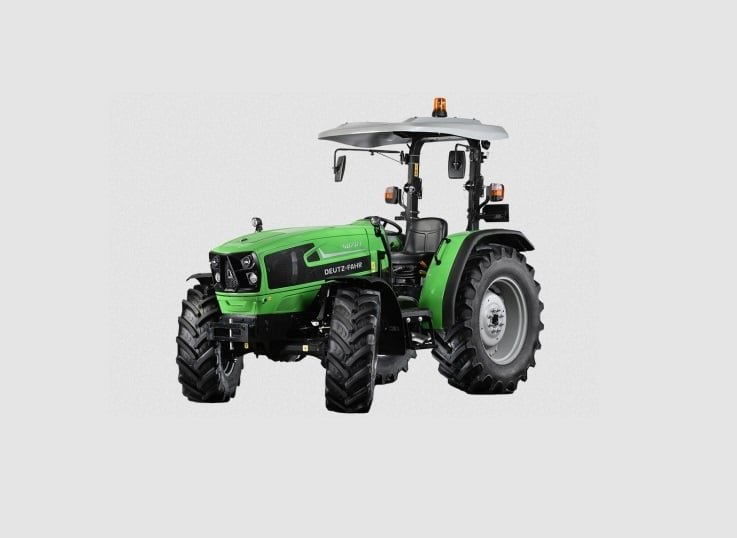

SAME Deutz Fahr 4090E

Built: 2018 · Series: Serie 4E

More machines from model year 2018

Source: https://www.lectura-specs.com/en/model/agricultural-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 4090E, SAME Deutz Fahr offers a model from the 4E series. Production: 2018. The engine delivers 84 hp (62 kW), has 3 cylinders, with a displacement of 2,887 cm³. Rated speed is 2,200 rpm. The machine is 3,860 mm long, 1,823 mm wide and 2,473 mm high. The unladen weight is 3,000 kg. The wheelbase measures 2,100 mm. Top speed is 40 km/h. Transmission: 15V / 15R. The engine is water-cooled. Tyres: front 360/70 R 20, rear 420/70 R 30. The fuel is diesel. Rated output across the SAME Deutz Fahr range ranges from 25 to 268 hp; the 4090E sits in the lower part of that range with 84 hp. Its immediate neighbours are the H-86 XA below it with 83 hp and the Agrofarm 410 above it with 85 hp. Unladen weight across the SAME Deutz Fahr range ranges from 1,005 to 9,430 kg; here the 4090E sits in the lower part of that range with 3,000 kg. 200 SAME Deutz Fahr models across 35 series are on record.

SAME Deutz-Fahr Series 4E – 4075E and 4090E: four-wheel-drive tractors from Lauingen, 54 to 62 kW, three-cylinder engines from 2,887 to 3,000 cc and around 3,000 kg

The 4E series belongs to the Deutz-Fahr model range, built at the Lauingen an der Donau plant and part of the Italian SAME Deutz-Fahr group headquartered in Treviglio. In the type designation the tens digit marks the 40 series, while the last two digits give the approximate horsepower class: the 4075E sits at roughly 75 hp, the 4090E at around 90 hp, and the E denotes the simplified, entry-level specification of this line.

Read on 3 more paragraphs

The register lists 2 variants with 54 to 62 kW of power from three-cylinder engines of 2,887 to 3,000 cc displacement at a rated speed of 2,200 rpm and 265 Nm of torque. Both variants are four-wheel-drive models weighing around 3,000 kg, with dimensions of 3,860 mm in length, 1,823 mm in width and 2,473 mm in height.

The 4E series targets medium-sized family farms that need a versatile tractor for yard, field and haulage work, and it competes in this segment with John Deere 5-series and Case IH Farmall models as well as group siblings Same and Lamborghini. The three-cylinder Deutz engine and simpler specification make the series an economical alternative within the Deutz-Fahr line-up.

When buying used, check the four-wheel-drive system and front axle joints for play and oil leaks, along with the PTO clutch and hydraulic pump. The three-cylinder engine is considered robust but needs regular oil changes and tight coolant hoses. Cab and sheet-metal parts should be checked for rust around mounting points; parts supply runs reliably through the Deutz-Fahr dealer network.

Sources: SpecCodex register, model data: SAME Deutz-Fahr Serie 4E, Deutz-Fahr (SAME Deutz-Fahr Group, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	84 hp (62 kW)correct
Rated speed	2,200 rpmcorrect
Cylinders	3correct
Displacement	2,887 cm³correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,860 mmcorrect
Width	1,823 mmcorrect
Height	2,473 mmcorrect
Wheelbase	2,100 mmcorrect
Unladen weight	3,000 kgcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	15V / 15Rcorrect
Front tyres	360/70 R 20correct
Rear tyres	420/70 R 30correct
Top speed	40 km/hcorrect

Where this model stands

Power-to-weight ratio: 20.7 kW/t (62 kW / 3 t)

Power class: Universal (40–100 hp)

Stronger than 58% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME Deutz Fahr 4090E have?

The SAME Deutz Fahr 4090E delivers 84 hp.

How much does the SAME Deutz Fahr 4090E weigh?

The unladen weight is 3,000 kg.

What engine does the SAME Deutz Fahr 4090E have?

3 cylinders, 2,887 cm³ displacement, Diesel.

How fast does the SAME Deutz Fahr 4090E go?

Top speed is 40 km/h.

What are the dimensions of the SAME Deutz Fahr 4090E?

3,860 mm × 1,823 mm × 2,473 mm.

When was the SAME Deutz Fahr 4090E built?

Production years: 2018.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
