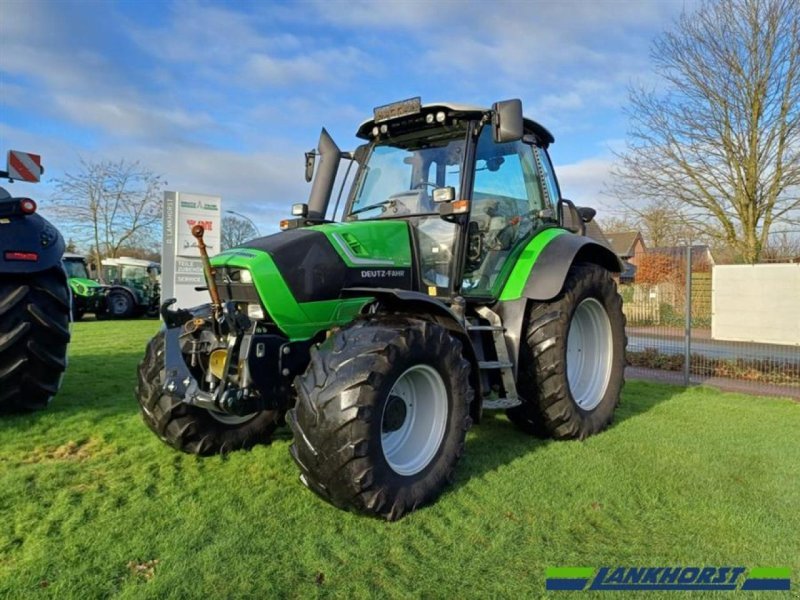

SAME Deutz Fahr Agrotron TTV 420
Built: 2011–2013 · Series: Agrotron TTV 400
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SAME Deutz-Fahr Agrotron TTV 400 – TTV 420 and TTV 430: stepless four-cylinder tractors from Lauingen, 91 to 98.5 kW, 4,038 cc displacement and 5,340 kg
The Agrotron TTV 400 range belongs to Deutz-Fahr's Agrotron family, built at the Lauingen an der Donau plant. TTV denotes the stepless transmission that, in this range, takes over power transfer in place of a conventional gearbox and allows travel speed to be set independently of engine speed. The TTV 420 and TTV 430 form the two power steps listed here within the TTV 400 line.
Read on 3 more paragraphs
The register lists 2 variants with 91 to 98.5 kW of power from four-cylinder engines of 4,038 cc displacement at a rated speed of 2,100 rpm and torque of 566 to 611 Nm. Unladen weight is 5,340 kg, with dimensions of 4,280 mm in length, 2,550 mm in width and 2,936 mm in height. Both variants are approved for diesel and B100 operation.
With its stepless transmission, the TTV 400 range positioned itself in the comfortable mid-class tractor segment, competing directly with Fendt Vario, John Deere AutoPowr and Case IH CVX. The high torque at moderate engine speed makes the range particularly strong in pulling power for tillage and front-loader work.
When buying used, check the oil level and change intervals of the stepless transmission, as its upkeep is costlier than a conventional gearbox. The hydraulic pump should be tested for adequate delivery pressure, and the transmission control electronics checked for fault codes. Cab mounts and the cooling system are also worth checking given the high engine output; parts supply runs reliably through the Deutz-Fahr network.
Sources: SpecCodex register, model data: SAME Deutz-Fahr Agrotron TTV 400, Deutz-Fahr (SAME Deutz-Fahr Group, Hersteller)
Technical data
Engine
| Fuel | Diesel / B 100correct |
|---|---|
| Power | 124 hp (91 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 566 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,038 cm³correct |
| Bore | 101 mmcorrect |
| Stroke | 126 mmcorrect |
| Compression ratio | 18correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,280 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Height | 2,936 mmcorrect |
| Wheelbase | 2,419 mmcorrect |
| Ground clearance | 485 mmcorrect |
| Unladen weight | 5,340 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | continuously variablecorrect |
| Front tyres | 480/70 R 24correct |
| Rear tyres | 520/70 R 38correct |
| Top speed | 40 km/hcorrect |
Where this model stands
Power-to-weight ratio: 17 kW/t (91 kW / 5.3 t)
Power class: Large (100–180 hp)
Stronger than 76% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agrotron TTV 420 have?
The SAME Deutz Fahr Agrotron TTV 420 delivers 124 hp.
How much does the SAME Deutz Fahr Agrotron TTV 420 weigh?
The unladen weight is 5,340 kg.
What engine does the SAME Deutz Fahr Agrotron TTV 420 have?
4 cylinders, 4,038 cm³ displacement, Diesel / B 100.
How fast does the SAME Deutz Fahr Agrotron TTV 420 go?
Top speed is 40 km/h.
What are the dimensions of the SAME Deutz Fahr Agrotron TTV 420?
4,280 mm × 2,550 mm × 2,936 mm.
When was the SAME Deutz Fahr Agrotron TTV 420 built?
Production years: 2011–2013.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
