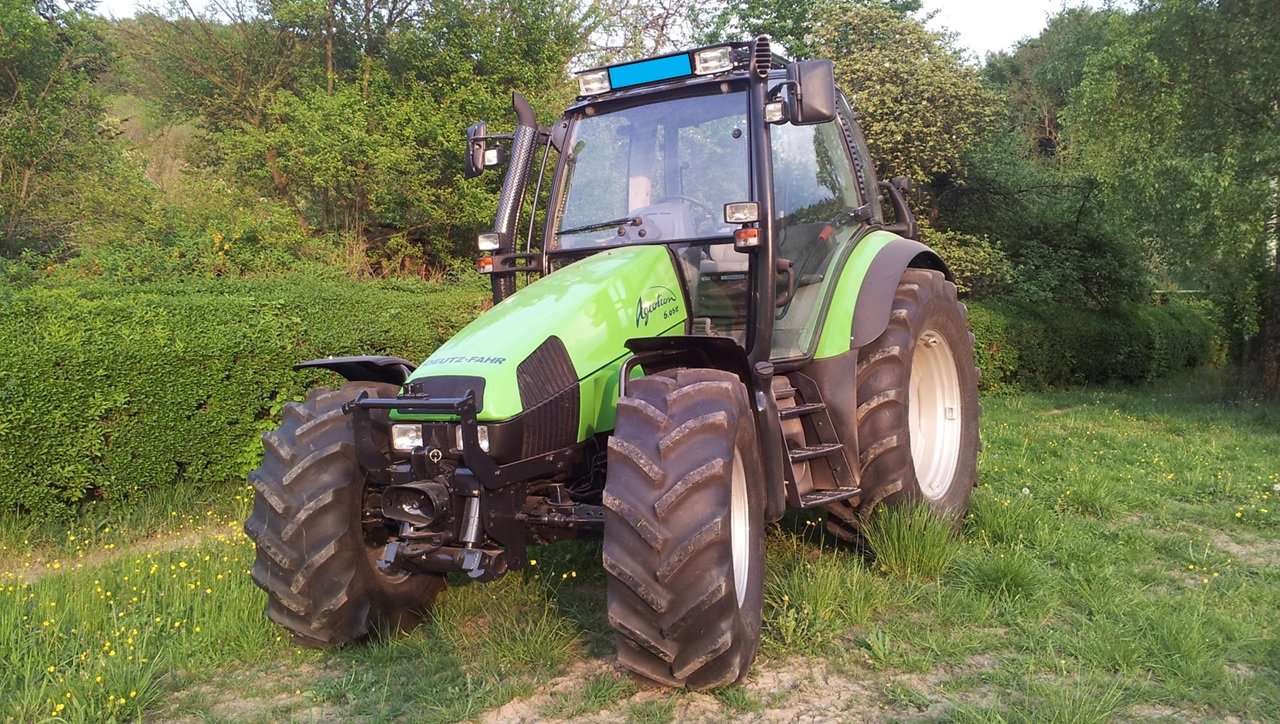

SAME Deutz Fahr Agrotron 6.05
Built: 1995–1997 · Series: Agrotron MK 1
More machines from model year 1995
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrotron: the first generation from 1995, 95 to 145 hp, four- and six-cylinder diesels, the origin of the flagship name still used today
In 1995 SAME took over the traditional German maker Deutz-Fahr; shortly after, in 1996, the Agrotron appeared as the first series under the new group's banner — the MK1 generation bundles exactly these original models.
Read on 4 more paragraphs
The register lists 8 live models, from the Agrotron 4.95 to the Agrotron 6.45, built between 1995 and 1997. Output ranges from 70.8 to 106.7 kW, or 95 to 145 hp, weight from 4,220 to 5,390 kg, displacement from 3,192 to 7,146 cm3, across four- and six-cylinder engines.
With the Agrotron, Deutz-Fahr established a distinctive body design and a model name that, across several generations since (MK2, MK3, Series 6 and beyond), still denotes the brand's flagship segment today.
For collectors and enthusiasts, the MK1 generation thus marks the origin of one of the longest-running model names in European tractor building.
When buying a used MK1 Agrotron, clutch and gearbox condition, the tightness of the lift hydraulics, and – on the six-cylinder models – the injection system and turbocharger all matter; rust on the cab cladding, novel for its time, after decades of use is common too. Parts for this first generation run through the SAME Deutz-Fahr group, which continues the series as its own concern to this day. PTO and lift correspond in this power class to ISO 730 Category II to III, at 540 or 1,000 rpm.
Sources: SpecCodex register, model data: Deutz-Fahr Agrotron MK 1
Technical data
Engine
| Fuel | Diesel / Biodieselcorrect |
|---|---|
| Power | 105 hp (78.3 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 415 Nmcorrect |
| Speed at max. torque | 1,380 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 4,788 cm³correct |
| Bore | 94 mmcorrect |
| Stroke | 115 mmcorrect |
| Compression ratio | 17.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,520 mmcorrect |
|---|---|
| Width | 2,310 mmcorrect |
| Height | 2,855 mmcorrect |
| Wheelbase | 2,647 mmcorrect |
| Ground clearance | 520 mmcorrect |
| Unladen weight | 5,010 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 15V/5R or 18V/6Rcorrect |
| Front tyres | 16.9 R 24 AScorrect |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.6 kW/t (78 kW / 5 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agrotron 6.05 have?
The SAME Deutz Fahr Agrotron 6.05 delivers 105 hp.
How much does the SAME Deutz Fahr Agrotron 6.05 weigh?
The unladen weight is 5,010 kg.
What engine does the SAME Deutz Fahr Agrotron 6.05 have?
6 cylinders, 4,788 cm³ displacement, Diesel / Biodiesel.
How fast does the SAME Deutz Fahr Agrotron 6.05 go?
Top speed is 30 km/h.
What are the dimensions of the SAME Deutz Fahr Agrotron 6.05?
4,520 mm × 2,310 mm × 2,855 mm.
When was the SAME Deutz Fahr Agrotron 6.05 built?
Production years: 1995–1997.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
