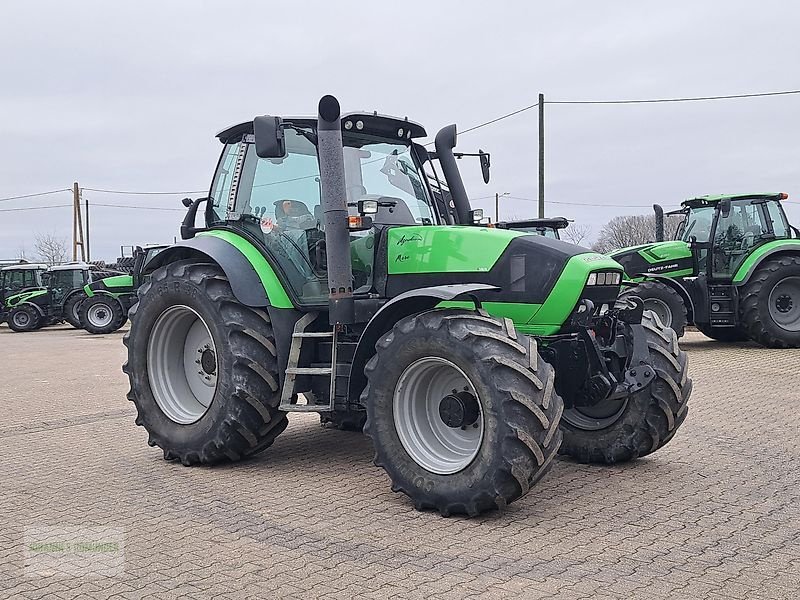

SAME Deutz Fahr Agrotron M 640

Built: 2007–2012 · Series: Agrotron M (Profiline)

More machines from model year 2007

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the Agrotron M 640, SAME Deutz Fahr offers a model from the Agrotron M (Profiline) series. Production: 2007–2012. The engine delivers 171 hp (125 kW), has 6 cylinders, with a displacement of 6,057 cm³. Torque is 795 Nm. Rated speed is 2,100 rpm. The machine is 4,757 mm long, 2,550 mm wide and 2,995 mm high. The unladen weight is 5,970 kg. The wheelbase measures 2,767 mm. Ground clearance is 570 mm. Top speed is 40 km/h. Transmission: 40V / 40R. The engine is water-cooled. Tyres: front 540/65 R 28, rear 650/65 R 38. The fuel is Diesel / Biodiesel. The bore measures 101 mm. The stroke is 126 mm. Maximum torque is reached at 1,000 rpm. Rated output across the SAME Deutz Fahr range ranges from 25 to 268 hp; the Agrotron M 640 sits in the upper part of that range with 171 hp. Its immediate neighbours are the Agrotron 180.7 below it with 170 hp and the Agrotron 175 above it with 175 hp. Rated output across the SAME Deutz Fahr range ranges from 18.4 to 197 kW; here the Agrotron M 640 sits in the middle of that range with 125 kW. 200 SAME Deutz Fahr models across 35 series are on record.

SAME Deutz-Fahr Agrotron M 640: six-cylinder tractor rated at 125 kW, 6.1-litre displacement and 5,970 kg weight from the Agrotron M (Profiline) range

SAME Deutz-Fahr is a brand of the Italian SDF group, headquartered in Treviglio, which brought together the tractor brands SAME, Deutz-Fahr, Lamborghini and Hürlimann. The Agrotron M (Profiline) range was the higher-comfort version of the mid-power segment within the Agrotron programme, aimed at mixed arable and grassland farms.

Read on 3 more paragraphs

The Agrotron M 640 is powered by a water-cooled six-cylinder engine of 6,057 cc, producing 125 kW (171 hp) at 2,100 rpm with 795 Nm of torque. At a weight of 5,970 kg, a wheelbase of 2,767 mm and a width of 2,550 mm, the tractor reaches a design top speed of 40 km/h. The engine runs on diesel or biodiesel.

A six-cylinder engine of six litres in this power class marks a medium-heavy field tractor for tillage, three-point implements to ISO 730 and haulage work. The 40 km/h top speed requires the German T driving licence category, and the power take-off runs at the standard 540 or 1,000 rpm. Implements in this weight class typically mount on category 2 of the ISO three-point standard.

Buying a used example is worth checking the six-cylinder's cooling system, the condition of the PTO bearings and the tightness of the hydraulic couplings. Since the Profiline trim carries more control electronics than the base version, a function test of the cab electronics belongs at inspection too, alongside weighing recorded hours against overall condition.

Sources: SpecCodex-Register: Kennwerte des Modells Agrotron M 640

Technical data

Engine

Fuel	Diesel / Biodieselcorrect
Power	171 hp (125 kW)correct
Rated speed	2,100 rpmcorrect
Torque	795 Nmcorrect
Speed at max. torque	1,000 rpmcorrect
Cylinders	6correct
Displacement	6,057 cm³correct
Bore	101 mmcorrect
Stroke	126 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,757 mmcorrect
Width	2,550 mmcorrect
Height	2,995 mmcorrect
Wheelbase	2,767 mmcorrect
Ground clearance	570 mmcorrect
Unladen weight	5,970 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	40V / 40Rcorrect
Front tyres	540/65 R 28correct
Rear tyres	650/65 R 38correct
Top speed	40 km/hcorrect

Where this model stands

Power-to-weight ratio: 20.9 kW/t (125 kW / 6 t)

Power class: Large (100–180 hp)

Stronger than 87% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME Deutz Fahr Agrotron M 640 have?

The SAME Deutz Fahr Agrotron M 640 delivers 171 hp.

How much does the SAME Deutz Fahr Agrotron M 640 weigh?

The unladen weight is 5,970 kg.

What engine does the SAME Deutz Fahr Agrotron M 640 have?

6 cylinders, 6,057 cm³ displacement, Diesel / Biodiesel.

How fast does the SAME Deutz Fahr Agrotron M 640 go?

Top speed is 40 km/h.

What are the dimensions of the SAME Deutz Fahr Agrotron M 640?

4,757 mm × 2,550 mm × 2,995 mm.

When was the SAME Deutz Fahr Agrotron M 640 built?

Production years: 2007–2012.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
