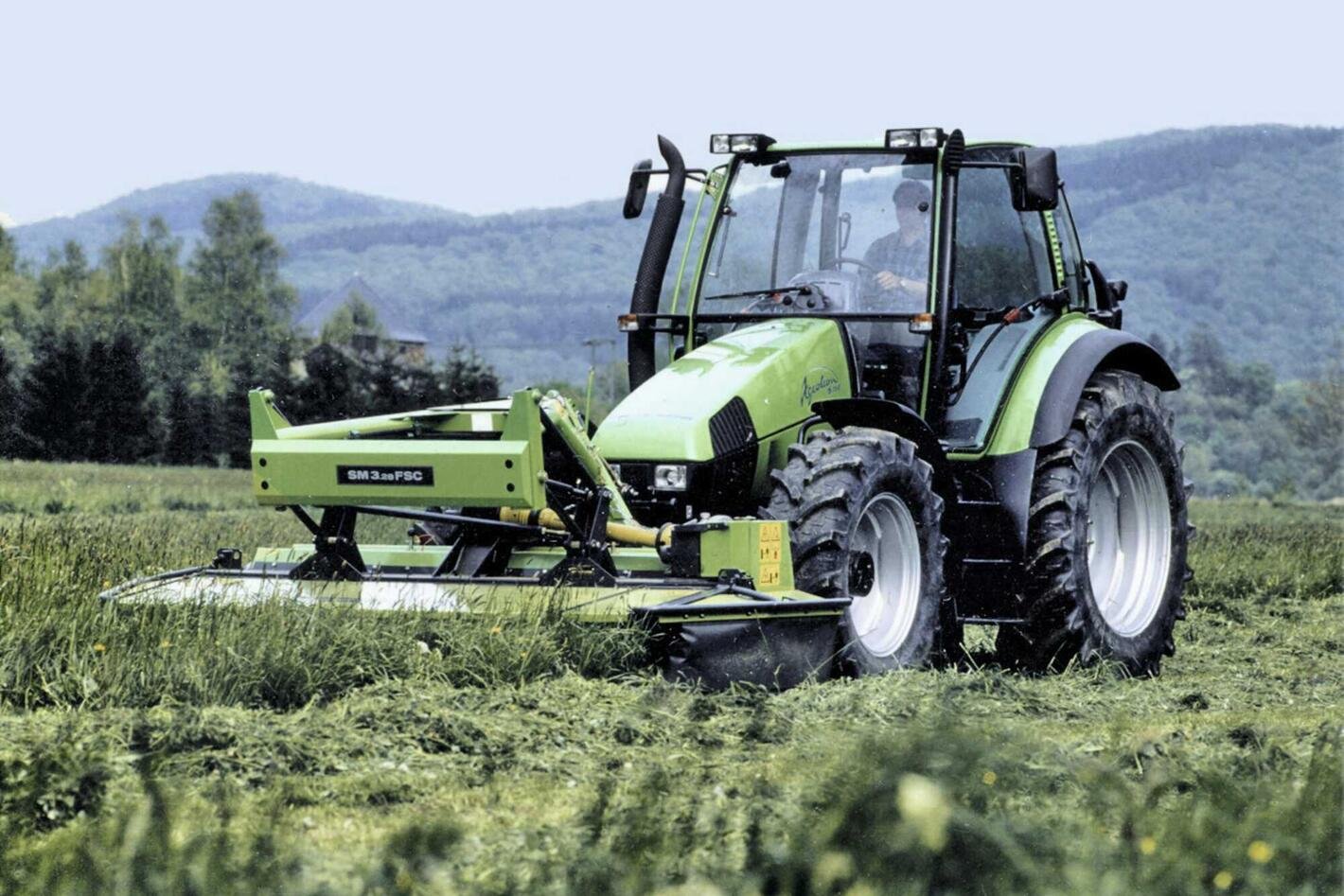

SAME Deutz Fahr Agrotron 235
Built: 2003–2004 · Series: Agrotron (IV)
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrotron IV: the big-tractor generation, 100 to 250 hp, six-cylinder diesels throughout with classic powershift alongside the new TTV technology
Alongside the 2002 TTV launch, Deutz-Fahr continued a series marketed as "Agrotron IV" with a classic powershift gearbox in the upper power segment, for customers who preferred to forgo stepless technology.
Read on 4 more paragraphs
The register lists 11 live models, from the Agrotron 110 to the Agrotron 265, built between 2003 and 2007. Output ranges from 73.6 to 184 kW, or 100 to 250 hp, weight from 4,710 to 9,050 kg, displacement from 6,057 to 7,146 cm3, with six-cylinder engines throughout.
With six-cylinder engines exclusively and a peak output of 250 hp in the Agrotron 265, this generation positioned itself clearly in the big-tractor segment for operations covering large areas.
The Agrotron IV thus rounded out the SDF line-up with a more conventional, mechanically simpler alternative alongside the new TTV technology.
When buying a used Agrotron IV, clutch and powershift-stage condition, the tightness of the lift hydraulics, and the six-cylinder's injection system and turbocharger all matter; rust on cab and mudguards after years on a large operation is common too. Parts run through the SAME Deutz-Fahr group, which continues to support the more mechanical Agrotron IV generation alongside TTV technology. PTO and lift correspond in this power class to ISO 730 Category III, at 540 or 1,000 rpm. The close technical kinship with the contemporary TTV generation also eases sourcing of shared engine and hydraulic parts.
Sources: SpecCodex register, model data: Deutz-Fahr Agrotron (IV)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 231 hp (170 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 928 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 7,146 cm³correct |
| Bore | 108 mmcorrect |
| Stroke | 130 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,002 mmcorrect |
|---|---|
| Width | 2,750 mmcorrect |
| Height | 3,255 mmcorrect |
| Wheelbase | 3,089 mmcorrect |
| Ground clearance | 540 mmcorrect |
| Unladen weight | 9,050 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24V/24Rcorrect |
| Front tyres | 520/70 R 38 AScorrect |
| Rear tyres | 710/70 R 42 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 18.8 kW/t (170 kW / 9.1 t)
Power class: Heavy (> 180 hp)
Stronger than 94% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agrotron 235 have?
The SAME Deutz Fahr Agrotron 235 delivers 231 hp.
How much does the SAME Deutz Fahr Agrotron 235 weigh?
The unladen weight is 9,050 kg.
What engine does the SAME Deutz Fahr Agrotron 235 have?
6 cylinders, 7,146 cm³ displacement, Diesel.
How fast does the SAME Deutz Fahr Agrotron 235 go?
Top speed is 40 km/h.
What are the dimensions of the SAME Deutz Fahr Agrotron 235?
5,002 mm × 2,750 mm × 3,255 mm.
When was the SAME Deutz Fahr Agrotron 235 built?
Production years: 2003–2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
