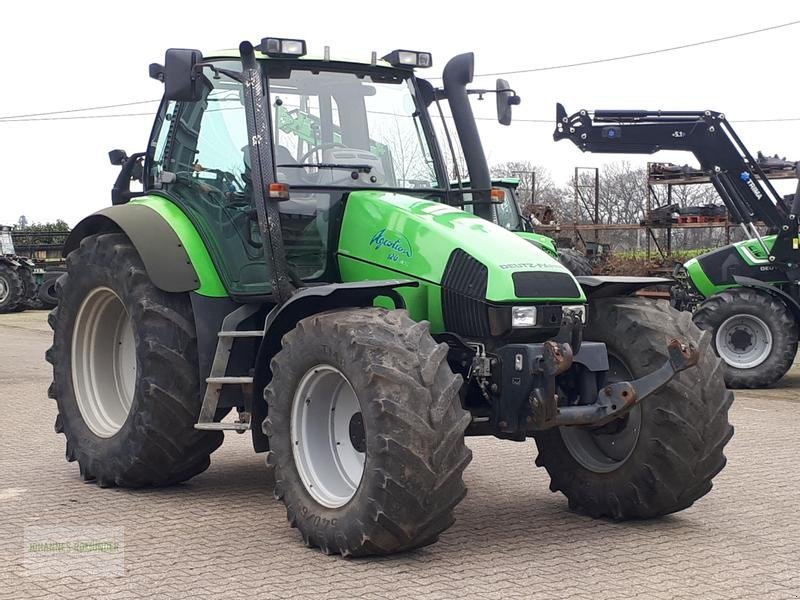

SAME Deutz Fahr Agrotron 120 (80.2 kW)
Built: 2005–2007 · Series: Agrotron
More machines from model year 2005
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SAME Deutz-Fahr Agrotron – large tractors from Lauingen since 1995, four- to six-cylinder diesel engines, 52.3 to 150.9 kW, 4,350 to 7,270 kg unladen weight, models from Agrotron 80 to 200
Deutz-Fahr has built the Agrotron range at its plant in Lauingen an der Donau since 1995; the register gathers the Agrotron 80, 120, 130.6, 180.7 and 200 models here, whose type numbers roughly indicate the power class. The Agrotron range replaced Deutz-Fahr's earlier large-tractor lines.
Read on 3 more paragraphs
The register lists 5 versions with 52.3 to 150.9 kW from four- to six-cylinder diesel engines of 4,038 to 7,146 cm³, unladen weights of 4,350 to 7,270 kg, lengths of 4,139 to 4,807 mm, widths of 2,256 to 2,550 mm, heights of 2,769 to 3,127 mm and torque of 512 to 775 Nm at 2,300 to 2,350 rpm; some models are also approved for biodiesel.
As the SAME Deutz-Fahr group's large-tractor range, the Agrotron sits in the mid-to-upper power segment for arable and mixed farms and competes with comparable ranges from Fendt, Case IH and John Deere; the group markets technically related models in parallel under the SAME, Deutz-Fahr, Lamborghini and Hürlimann brands, each with its own styling and dealer network.
On a used Agrotron, check the clutch and gearbox, the hydraulic pump and lift linkage, and the condition of the cab mounts; on the larger turbocharged six-cylinder engines, check the charge-air cooler and injection pump, rust on the fenders and steps is common, and parts are available through the Deutz-Fahr dealer network.
Sources: SpecCodex register, model data: SAME Deutz-Fahr Agrotron, Deutz-Fahr (SAME Deutz-Fahr Group, Hersteller)
Technical data
Engine
| Fuel | Diesel/Biodieselcorrect |
|---|---|
| Power | 109 hp (80.2 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,057 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,587 mmcorrect |
|---|---|
| Width | 2,304 mmcorrect |
| Height | 2,922 mmcorrect |
| Wheelbase | 2,647 mmcorrect |
| Ground clearance | 520 mmcorrect |
| Unladen weight | 5,460 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24V/24Rcorrect |
| Front tyres | 16.9 R 24 AScorrect |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 14.7 kW/t (80 kW / 5.5 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agrotron 120 have?
The SAME Deutz Fahr Agrotron 120 delivers 109 hp.
How much does the SAME Deutz Fahr Agrotron 120 weigh?
The unladen weight is 5,460 kg.
What engine does the SAME Deutz Fahr Agrotron 120 have?
6 cylinders, 6,057 cm³ displacement, Diesel/Biodiesel.
How fast does the SAME Deutz Fahr Agrotron 120 go?
Top speed is 40 km/h.
What are the dimensions of the SAME Deutz Fahr Agrotron 120?
4,587 mm × 2,304 mm × 2,922 mm.
When was the SAME Deutz Fahr Agrotron 120 built?
Production years: 2005–2007.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
