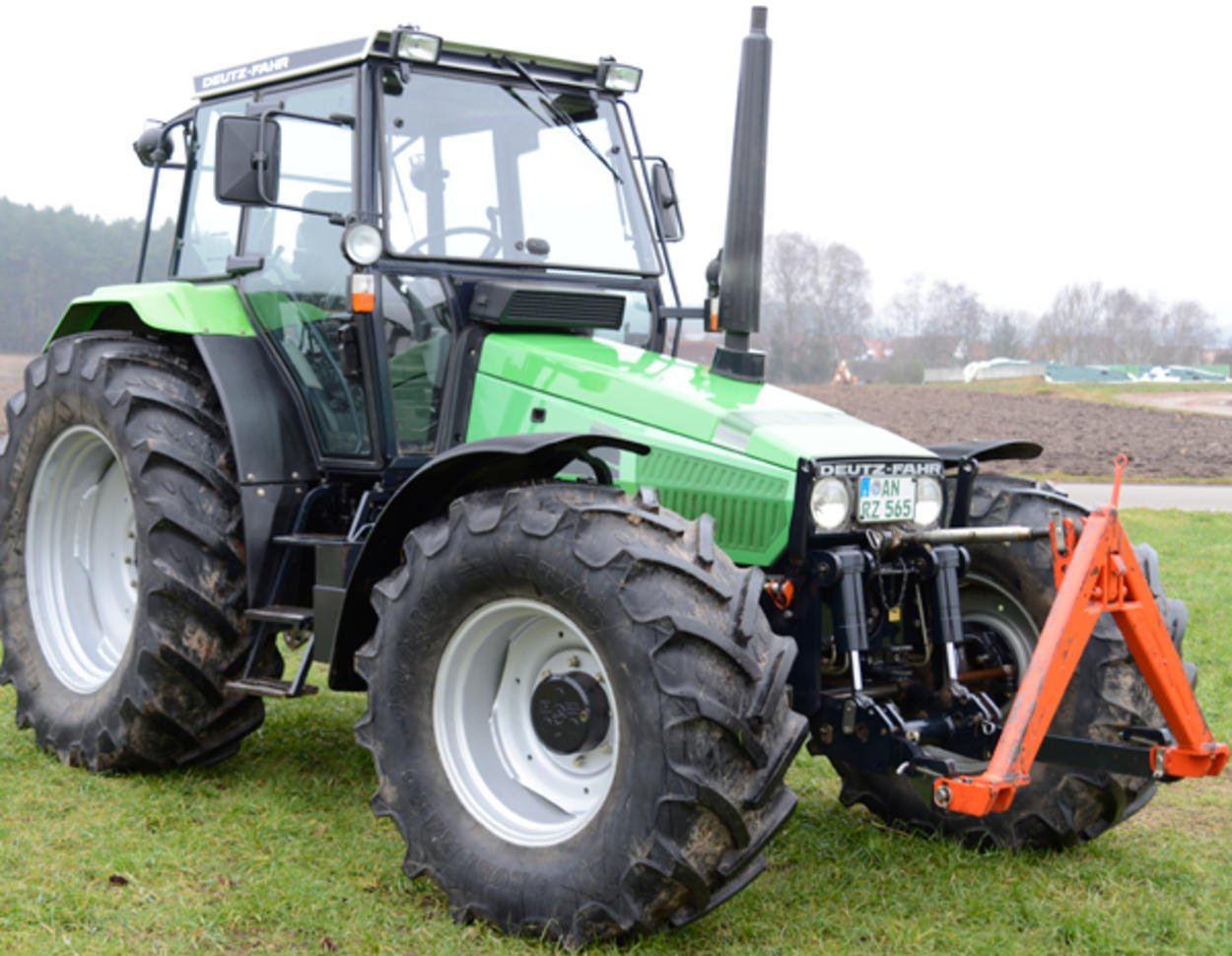

SAME Deutz Fahr Agrotrac 125
Series: Agrotrac - Reihe
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrotrac: extra ground clearance for special cases, 96 to 171 hp, four- and six-cylinder diesels, technically close to the Agrotron base
In the 2000s, the Agrotrac series added tractors tailored to particular working conditions to the SDF line-up in the mid-to-upper power segment, technically close to the contemporary Agrotron base.
Read on 4 more paragraphs
The register lists 9 live models, from the Agrotrac 100 to the Agrotrac 620, built around 2004 and 2009. Output ranges from 70.5 to 126 kW, or 96 to 171 hp, weight from 4,055 to 5,700 kg, displacement from 4,000 to 6,000 cm3, across four- and six-cylinder engines.
Spanning 96 to 171 hp, the Agrotrac sat between the Agroplus mid-range and the large Agrotron flagships in SDF's line-up of the time.
Anyone finding an Agrotrac in the register should ask the dealer about exact specification, since different chassis and cab variants were offered within the series for different applications.
When buying a used Agrotrac, besides the specification question, clutch and gearbox condition, the tightness of the lift hydraulics, and – on the six-cylinder models – the injection system and turbocharger all matter; rust on the chassis and mudguards after years of special-duty use is common too. Parts run through the SAME Deutz-Fahr group. PTO and lift correspond in this power class to ISO 730 Category II to III, at 540 or 1,000 rpm. Because the Agrotrac is technically closely related to the contemporary Agrotron base, many engine and drivetrain parts are interchangeable between the two series.
Sources: SpecCodex register, model data: Deutz-Fahr Agrotrac
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 125.6 hp (92.4 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 486 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Cooling | liquid-cooledcorrect |
Dimensions and weights
| Length | 4,275 mmcorrect |
|---|---|
| Width | 2,170 mmcorrect |
| Height | 2,750 mmcorrect |
| Wheelbase | 2,750 mmcorrect |
| Ground clearance | 500 mmcorrect |
| Unladen weight | 4,940 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16V / 12Rcorrect |
| Rear tyres | 18.4 R 38correct |
| Top speed | 30 km/hcorrect |
Where this model stands
Power-to-weight ratio: 18.7 kW/t (92 kW / 4.9 t)
Power class: Large (100–180 hp)
Stronger than 76% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agrotrac 125 have?
The SAME Deutz Fahr Agrotrac 125 delivers 126 hp.
How much does the SAME Deutz Fahr Agrotrac 125 weigh?
The unladen weight is 4,940 kg.
What engine does the SAME Deutz Fahr Agrotrac 125 have?
6 cylinders, 6,000 cm³ displacement, Diesel.
How fast does the SAME Deutz Fahr Agrotrac 125 go?
Top speed is 30 km/h.
What are the dimensions of the SAME Deutz Fahr Agrotrac 125?
4,275 mm × 2,170 mm × 2,750 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
