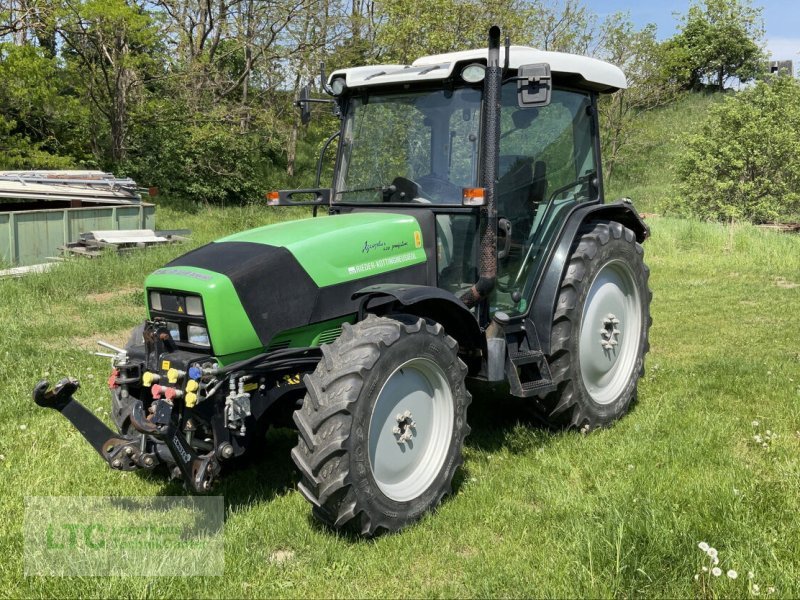

SAME Deutz Fahr Agroplus 420 ( Profiline )
Built: 2009 · Series: Agroplus - Reihe ( Driite Generation )
More machines from model year 2009
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SAME Deutz Fahr Agroplus 420 Profiline (2009): water-cooled four-cylinder standard tractor with 70 kW output, B100 biodiesel capability and 373 Nm of torque
The Agroplus 420 (Profiline) was built in 2009 as part of the third generation of the Agroplus series under the SAME Deutz Fahr brand and belonged to the newer standard tractors of the mid power class in these years.
Read on 3 more paragraphs
The water-cooled four-cylinder engine displaces 4,000 cm³ and delivers 70 kW at 2,200 rpm, equivalent to 95 horsepower, with 373 Nm of torque. The engine is approved for both conventional diesel and pure biodiesel to the B100 standard. With a weight of 3,410 kg, a wheelbase of 2,230 mm and a top speed of 40 km/h, the Agroplus 420 was versatile in use.
Approval for B100 biodiesel let farmers choose between running on fossil diesel or pure biodiesel made from vegetable oils, which was of particular interest to holdings with their own oilseed production. Torque of 373 Nm at this displacement provides strong pulling reserves for tillage and transport work.
When buying a used Agroplus 420, it is worth establishing which fuel the tractor was mainly run on, since biodiesel operation places more strain on certain seals and fuel lines than conventional diesel. The injection system also deserves a check, as biodiesel can lead to deposits in the lines during longer periods of standing. It is also worth reviewing the service history for entries relating to the particulate filter, if one was fitted to this version of the engine.
Sources: SpecCodex-Register: Kennwerte des Modells Agroplus 420 (Profiline)
Technical data
Engine
| Fuel | Diesel / B 100correct |
|---|---|
| Power | 95 hp (70 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 373 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Injection pressure | 1,200 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,560 mmcorrect |
|---|---|
| Width | 2,070 mmcorrect |
| Height | 2,455 mmcorrect |
| Wheelbase | 2,230 mmcorrect |
| Ground clearance | 390 mmcorrect |
| Unladen weight | 3,410 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 30V / 15Rcorrect |
| Front tyres | 320/70 R 24correct |
| Rear tyres | 480/70 R 30correct |
| Top speed | 40 km/hcorrect |
Where this model stands
Power-to-weight ratio: 20.5 kW/t (70 kW / 3.4 t)
Power class: Universal (40–100 hp)
Stronger than 63% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agroplus 420 ( Profiline ) have?
The SAME Deutz Fahr Agroplus 420 ( Profiline ) delivers 95 hp.
How much does the SAME Deutz Fahr Agroplus 420 ( Profiline ) weigh?
The unladen weight is 3,410 kg.
What engine does the SAME Deutz Fahr Agroplus 420 ( Profiline ) have?
4 cylinders, 4,000 cm³ displacement, Diesel / B 100.
How fast does the SAME Deutz Fahr Agroplus 420 ( Profiline ) go?
Top speed is 40 km/h.
What are the dimensions of the SAME Deutz Fahr Agroplus 420 ( Profiline )?
3,560 mm × 2,070 mm × 2,455 mm.
When was the SAME Deutz Fahr Agroplus 420 ( Profiline ) built?
Production years: 2009.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
