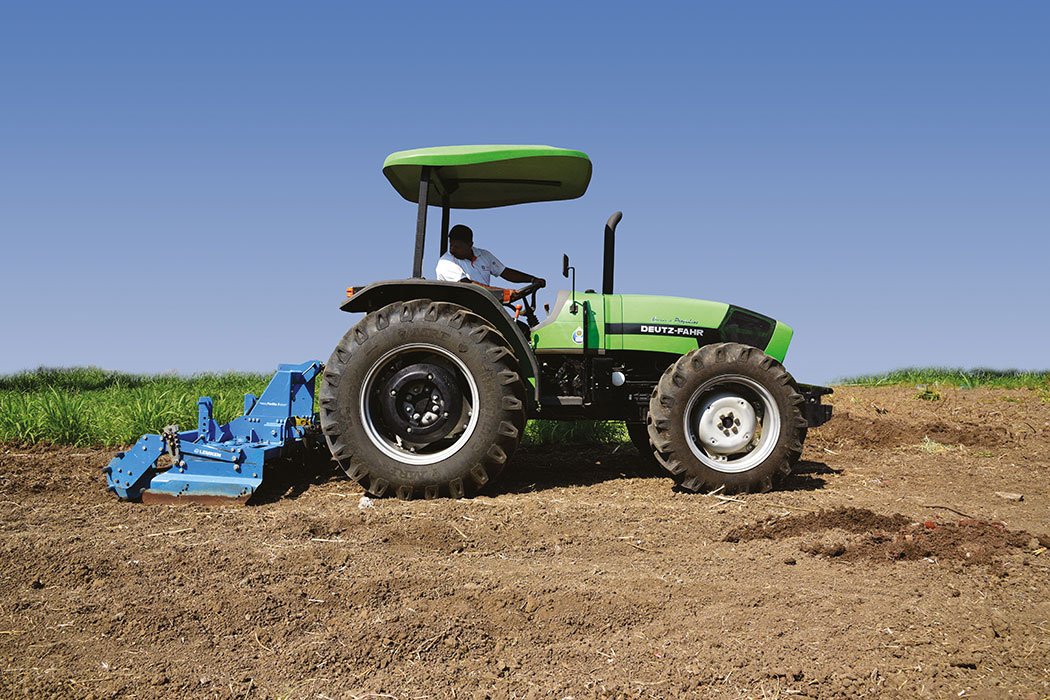

SAME Deutz Fahr Agrolux 80
Built: 2000–2005 · Series: Agrolux (F)
More machines from model year 2000
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SAME Deutz Fahr Agrolux 80 (2000-2005): air-cooled four-cylinder standard tractor with 56.7 kW output and two rated speeds from the Agrolux (F) series
The Agrolux 80 was built between 2000 and 2005 as part of the Agrolux (F) series under the SAME Deutz Fahr brand, the joint group formed by the Italian maker SAME and the German tractor builder Deutz-Fahr.
Read on 3 more paragraphs
The air-cooled four-cylinder engine displaces 4,085 cm³ and, depending on the stated rated speed of 2,350 or 2,200 rpm, delivers 56.7 kW, equivalent to 77 horsepower, with 270 Nm of torque. With a weight of 2,810 kg, a wheelbase of 2,350 mm and a top speed of 30 km/h, the Agrolux 80 was built for versatile work on medium-sized holdings.
Two stated rated speeds for the same engine often point to different emissions standards or market versions of the same base engine, where output varies slightly depending on calibration. The air-cooled design of this four-cylinder engine was still common at SAME Deutz Fahr in this power class before water cooling took over on larger engines.
When buying a used Agrolux 80, the cooling airflow around the four-cylinder engine should be checked for fouling, since air-cooled engines overheat quickly once the cooling fins are clogged. The hydraulic system and three-point linkage also deserve a check under load, as these components are placed under particular strain during intensive agricultural use. A look at the exhaust colour under load can also reveal whether the air-cooled engine is running with the correct fuel-air mixture for its calibration.
Sources: SpecCodex-Register: Kennwerte des Modells Agrolux 80
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 77 hp (56.7 kW)correct |
| Rated speed | 2.350/2.200 rpmcorrect |
| Torque | 270 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,085 cm³correct |
| Bore | 102 mmcorrect |
| Stroke | 125 mmcorrect |
| Compression ratio | 18correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,845 mmcorrect |
|---|---|
| Width | 2,060 mmcorrect |
| Height | 2,860 mmcorrect |
| Wheelbase | 2,350 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 2,810 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 16V/8Rcorrect |
| Front tyres | 7.50-18 ASF (A: 13.6 R 28 AS)correct |
| Rear tyres | 18.4 R 34 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 20.2 kW/t (57 kW / 2.8 t)
Power class: Universal (40–100 hp)
Stronger than 53% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agrolux 80 have?
The SAME Deutz Fahr Agrolux 80 delivers 77 hp.
How much does the SAME Deutz Fahr Agrolux 80 weigh?
The unladen weight is 2,810 kg.
What engine does the SAME Deutz Fahr Agrolux 80 have?
4 cylinders, 4,085 cm³ displacement, Diesel.
How fast does the SAME Deutz Fahr Agrolux 80 go?
Top speed is 30 km/h.
What are the dimensions of the SAME Deutz Fahr Agrolux 80?
3,845 mm × 2,060 mm × 2,860 mm.
When was the SAME Deutz Fahr Agrolux 80 built?
Production years: 2000–2005.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: Wikibooks Traktorenlexikon (CC BY-SA 4.0) (retrieved August 2026) · Values adopted and presented in our own form; changes from the source are possible. · How we check the data
