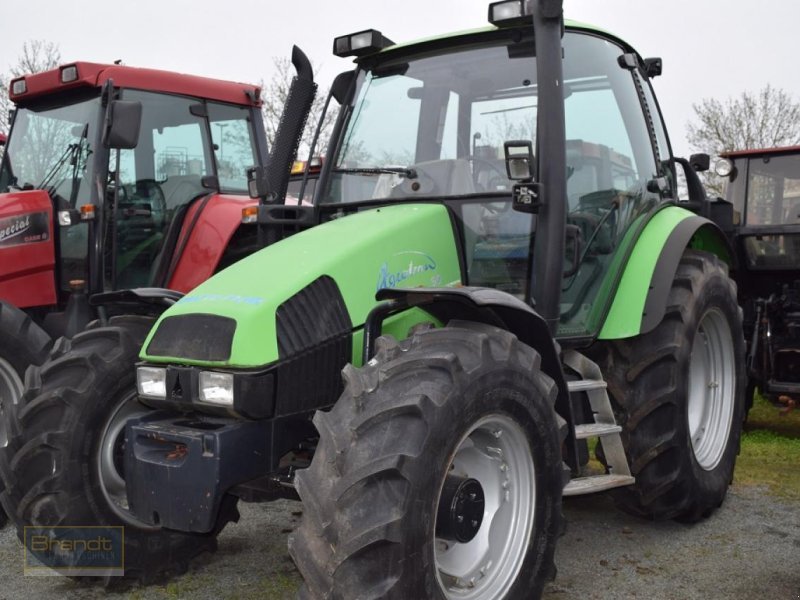

SAME Deutz Fahr Agrolux 90
Built: 2000–2005 · Series: Agrolux - Reihe
More machines from model year 2000
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrolux: the compact entry class since 2000, 52 to 70 kW, three- and four-cylinder diesels, model name continued into the current range
The Agrolux series has, since the early 2000s, rounded out Deutz-Fahr's line-up with compact entry-level tractors — a model name the brand continues in its current range to this day.
Read on 4 more paragraphs
The register lists 12 live models, from the Agrolux 57 to the Agrolux 320, built between 2000 and 2009. Output ranges from 38.3 to 70 kW, weight from 2,220 to 3,200 kg, displacement from 3,000 to 4,086 cm3, across three- and four-cylinder engines.
As a compact all-purpose tractor, the Agrolux targeted smaller farms, part-time farmers and municipal use, with simpler specification than the pricier Agroplus and Agrotron series.
Because the Agrolux name still exists in Deutz-Fahr's current line-up, buyers looking at a used example should pay particular attention to build year and engine stage to correctly place models from this early generation.
Specifically, when buying used, clutch and gearbox condition, the tightness of the lift hydraulics, and rust on cab and mudguards after years of municipal or part-time farm use matter; parts for the simple mechanical technology of this early generation remain well available through the SAME Deutz-Fahr group. PTO and three-point hitch correspond in this power class to ISO 730 Category I to II, at 540 rpm. On the rare air-cooled versions of the early Agrolux, the cooling fins and fan matter too, while on the usual water-cooled models it is the radiator and hoses.
Sources: SpecCodex register, model data: Deutz-Fahr Agrolux
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 87 hp (64 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,086 cm³correct |
| Bore | 102 mmcorrect |
| Stroke | 125 mmcorrect |
| Compression ratio | 18correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,845 mmcorrect |
|---|---|
| Width | 2,060 mmcorrect |
| Height | 2,860 mmcorrect |
| Wheelbase | 2,350 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 2,810 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 12V/12Rcorrect |
| Front tyres | 7.50-18 ASF (A: 13.6 R 28 AS)correct |
| Rear tyres | 18.4 R 34 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 22.8 kW/t (64 kW / 2.8 t)
Power class: Universal (40–100 hp)
Stronger than 59% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agrolux 90 have?
The SAME Deutz Fahr Agrolux 90 delivers 87 hp.
How much does the SAME Deutz Fahr Agrolux 90 weigh?
The unladen weight is 2,810 kg.
What engine does the SAME Deutz Fahr Agrolux 90 have?
4 cylinders, 4,086 cm³ displacement, Diesel.
How fast does the SAME Deutz Fahr Agrolux 90 go?
Top speed is 30 km/h.
What are the dimensions of the SAME Deutz Fahr Agrolux 90?
3,845 mm × 2,060 mm × 2,860 mm.
When was the SAME Deutz Fahr Agrolux 90 built?
Production years: 2000–2005.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
