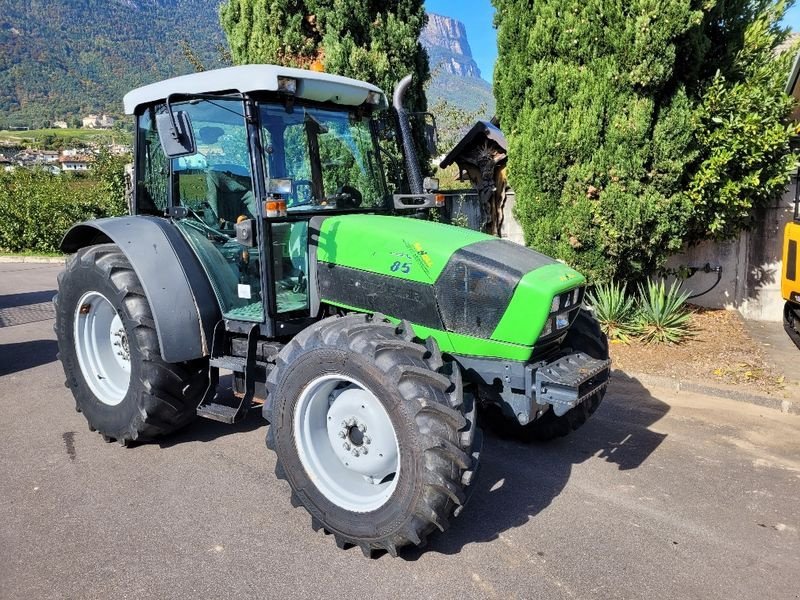

SAME Deutz Fahr Agrofarm 85 – specifications
Built: 2007–2008 · Series: Agrofarm - Reihe
With the Agrofarm 85, SAME Deutz Fahr offers a model from the Agrofarm - Reihe series. Production: 2007–2008. The engine delivers 76 hp (55.9 kW), has 4 cylinders, with a displacement of 4,038 cm³. Torque is 297 Nm. Rated speed is 2,300 rpm. The machine is 3,850 mm long, 2,204 mm wide and 2,513 mm high. The unladen weight is 3,800 kg. The wheelbase measures 2,310 mm. Ground clearance is 450 mm. Top speed is 40 km/h. Transmission: 20V/20R. The engine is water-cooled. Tyres: front 12.4 R 28 AS, rear 16.9 R 38 AS. The fuel is Diesel/RME. The bore measures 101 mm. The stroke is 126 mm. The compression ratio is 17.5:1. Construction: unit construction (no separate frame). The Agrofarm - Reihe series covers 8 models. Rated output within it ranges from 76 to 102 hp; the Agrofarm 85 sits at the bottom of that range with 76 hp. Its immediate neighbours are the Agrofarm 410 above it with 85 hp. Unladen weight within it ranges from 3,050 to 4,825 kg; here the Agrofarm 85 sits in the middle of that range with 3,800 kg. 200 SAME Deutz Fahr models across 35 series are on record.
Data for the version built 2007–2008 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrofarm: today's mid-range, 85 to 102 hp, four-cylinder diesels at 4,038 cm³, choice of TB powershift or stepless TTV transmission
From 2007, the Agrofarm series replaced older mid-range series such as the Agroplus, and, in repeatedly updated form, remains part of Deutz-Fahr's current line-up in the mid-power segment today.
Read on 4 more paragraphs
The register lists 8 live models, from the Agrofarm 85 to the Agrofarm TTV 430, built between 2007 and 2010. Output ranges from 55.9 to 75 kW, or 85 to 102 hp, weight from 3,050 to 4,825 kg, displacement a constant 4,038 cm3, with four-cylinder engines.
Even at this early stage, Deutz-Fahr offered the Agrofarm with both a classic powershift gearbox (TB) and a stepless TTV transmission, identifiable by the corresponding name suffixes.
As one of the more recent series covered here, the Agrofarm shows how the SDF model programme gradually moved toward unified transmission naming and engine families across all series.
When buying a used Agrofarm, besides clutch and hydraulic tightness, the function of the specific gearbox type matters especially: on the TB version the powershift stages, on the TTV version the electronics of the stepless control together with its sensors, which must be read out via workshop diagnostics if a fault occurs. Parts run through the SAME Deutz-Fahr group, including for this early version's TTV electronics. PTO and three-point hitch correspond in this power class to ISO 730 Category II, at 540 rpm.
Sources: SpecCodex register, model data: Deutz-Fahr Agrofarm
Technical data
Engine
| Fuel | Diesel/RMEcorrect |
|---|---|
| Power | 76 hp (55.9 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 297 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,038 cm³correct |
| Bore | 101 mmcorrect |
| Stroke | 126 mmcorrect |
| Compression ratio | 17.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,850 mmcorrect |
|---|---|
| Width | 2,204 mmcorrect |
| Height | 2,513 mmcorrect |
| Wheelbase | 2,310 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 3,800 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 20V/20Rcorrect |
| Front tyres | 12.4 R 28 AScorrect |
| Rear tyres | 16.9 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 14.7 kW/t (56 kW / 3.8 t)
Power class: Universal (40–100 hp)
Stronger than 52% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
