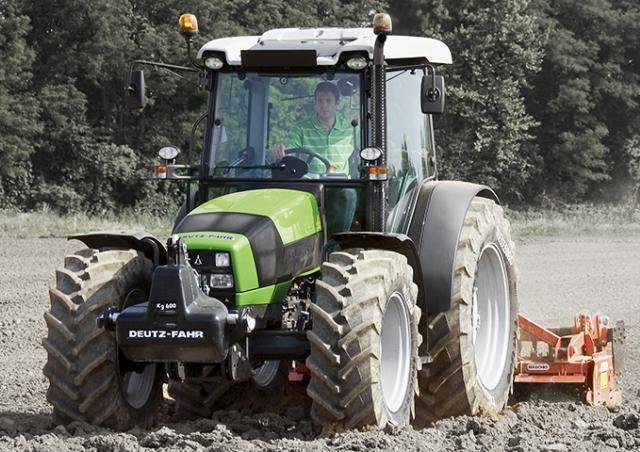

SAME Deutz Fahr Agrofarm 100
Built: 2007–2008 · Series: Agrofarm - Reihe
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrofarm: today's mid-range, 85 to 102 hp, four-cylinder diesels at 4,038 cm³, choice of TB powershift or stepless TTV transmission
From 2007, the Agrofarm series replaced older mid-range series such as the Agroplus, and, in repeatedly updated form, remains part of Deutz-Fahr's current line-up in the mid-power segment today.
Read on 4 more paragraphs
The register lists 8 live models, from the Agrofarm 85 to the Agrofarm TTV 430, built between 2007 and 2010. Output ranges from 55.9 to 75 kW, or 85 to 102 hp, weight from 3,050 to 4,825 kg, displacement a constant 4,038 cm3, with four-cylinder engines.
Even at this early stage, Deutz-Fahr offered the Agrofarm with both a classic powershift gearbox (TB) and a stepless TTV transmission, identifiable by the corresponding name suffixes.
As one of the more recent series covered here, the Agrofarm shows how the SDF model programme gradually moved toward unified transmission naming and engine families across all series.
When buying a used Agrofarm, besides clutch and hydraulic tightness, the function of the specific gearbox type matters especially: on the TB version the powershift stages, on the TTV version the electronics of the stepless control together with its sensors, which must be read out via workshop diagnostics if a fault occurs. Parts run through the SAME Deutz-Fahr group, including for this early version's TTV electronics. PTO and three-point hitch correspond in this power class to ISO 730 Category II, at 540 rpm.
Sources: SpecCodex register, model data: Deutz-Fahr Agrofarm
Technical data
Engine
| Fuel | Diesel/RMEcorrect |
|---|---|
| Power | 90 hp (66.2 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 353 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,038 cm³correct |
| Bore | 101 mmcorrect |
| Stroke | 126 mmcorrect |
| Compression ratio | 17.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,950 mmcorrect |
|---|---|
| Width | 2,204 mmcorrect |
| Height | 2,638 mmcorrect |
| Wheelbase | 2,340 mmcorrect |
| Ground clearance | 500 mmcorrect |
| Unladen weight | 4,300 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 20V/20Rcorrect |
| Front tyres | 12.4 R 28 AScorrect |
| Rear tyres | 16.9 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.4 kW/t (66 kW / 4.3 t)
Power class: Universal (40–100 hp)
Stronger than 61% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agrofarm 100 have?
The SAME Deutz Fahr Agrofarm 100 delivers 90 hp.
How much does the SAME Deutz Fahr Agrofarm 100 weigh?
The unladen weight is 4,300 kg.
What engine does the SAME Deutz Fahr Agrofarm 100 have?
4 cylinders, 4,038 cm³ displacement, Diesel/RME.
How fast does the SAME Deutz Fahr Agrofarm 100 go?
Top speed is 40 km/h.
What are the dimensions of the SAME Deutz Fahr Agrofarm 100?
3,950 mm × 2,204 mm × 2,638 mm.
When was the SAME Deutz Fahr Agrofarm 100 built?
Production years: 2007–2008.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
