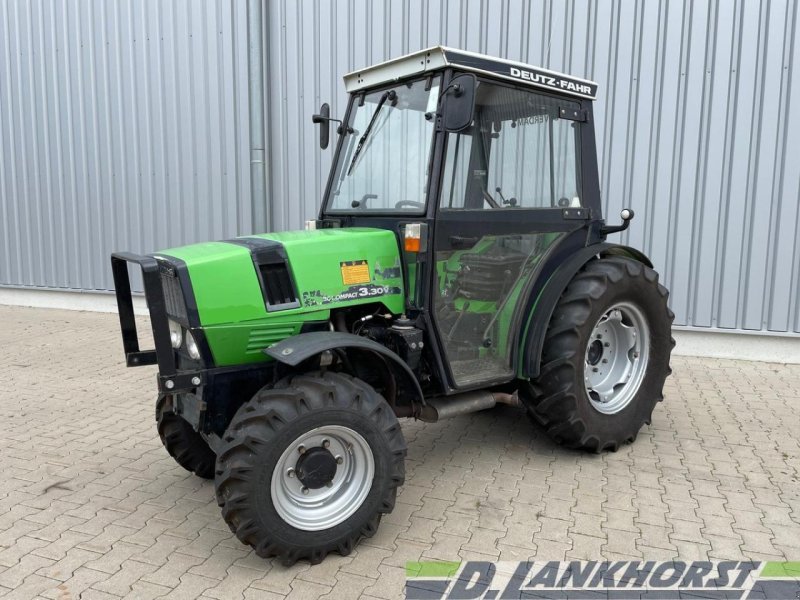

SAME Deutz Fahr Agrocompact 3.30 V/F
Built: 1992–1996 · Series: Agrocompact
More machines from model year 1992
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrocompact: general-purpose tractors of the 90s, 54 to 90 hp, three- and four-cylinder diesels, some approved for pure biodiesel (B100)
The Agrocompact series occupied Deutz-Fahr's compact general-purpose segment through the 1990s and early 2000s, before the successor Agroplus series took over its role.
Read on 4 more paragraphs
The register lists 11 live models, from the Agrocompact 3.30 V/F to the Agrocompakt 90 V/F, built between 1992 and 2006. Output ranges from 39.7 to 66.2 kW, or 54 to 90 hp, weight from 2,150 to 2,700 kg, displacement from 2,827 to 4,000 cm3, across three- and four-cylinder engines.
The parallel use of dot notation (3.30, 3.50) and plain horsepower numbers (60, 70, 80, 90) within the same series shows how Deutz-Fahr gradually standardised model naming during this transitional period.
With V and F variants (Vigneto/Frutteto), the Agrocompact already covered specialty-crop applications alongside classic arable work.
Notably, some Agrocompact models were already approved for pure biodiesel (B100), which makes it worth checking fuel lines and seals for biodiesel compatibility on a used example if it was run on that fuel. When buying used, clutch and gearbox condition, hydraulic tightness, and rust on cab and mudguards also matter; parts run through the SAME Deutz-Fahr group. PTO and three-point hitch correspond in this power class to ISO 730 Category I to II, at 540 rpm. Some early Agrocompact models still used air cooling, later ones exclusively water cooling; on air-cooled examples, the cooling fins and fan matter too.
Sources: SpecCodex register, model data: Deutz-Fahr Agrocompact
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 54 hp (39.7 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 175 Nmcorrect |
| Cylinders | 3correct |
| Displacement | 2,827 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,340 mmcorrect |
|---|---|
| Width | 1,000 mmcorrect |
| Height | 1,985 mmcorrect |
| Wheelbase | 1,915 mmcorrect |
| Ground clearance | 260 mmcorrect |
| Unladen weight | 2,150 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 16V/8Rcorrect |
| Front tyres | 7, 5 L-15 ASF (F: 7.50-16 ASF)correct |
| Rear tyres | 13.6 R 24 AScorrect |
| Top speed | 35 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 18.5 kW/t (40 kW / 2.1 t)
Power class: Universal (40–100 hp)
Stronger than 37% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agrocompact 3.30 V/F have?
The SAME Deutz Fahr Agrocompact 3.30 V/F delivers 54 hp.
How much does the SAME Deutz Fahr Agrocompact 3.30 V/F weigh?
The unladen weight is 2,150 kg.
What engine does the SAME Deutz Fahr Agrocompact 3.30 V/F have?
3 cylinders, 2,827 cm³ displacement, Diesel.
How fast does the SAME Deutz Fahr Agrocompact 3.30 V/F go?
Top speed is 35 km/h.
What are the dimensions of the SAME Deutz Fahr Agrocompact 3.30 V/F?
3,340 mm × 1,000 mm × 1,985 mm.
When was the SAME Deutz Fahr Agrocompact 3.30 V/F built?
Production years: 1992–1996.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
