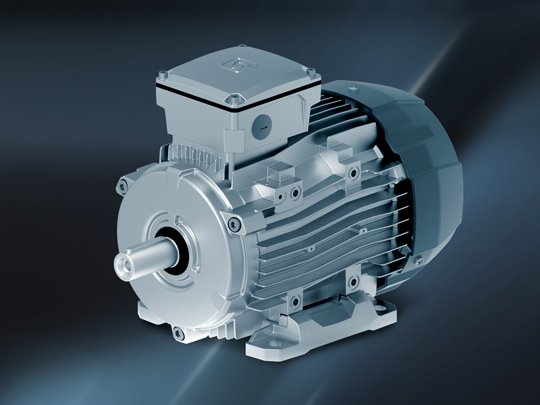

Rotomotive 80C-2
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Rotomotive – other electric motors: the collective page of Indian three-phase motors outside the named ranges, frame sizes 80 to 132, 1.1 to 11 kW, full mounting spectrum B3 to V36
This page gathers the Rotomotive electric motors the Australian energy-efficiency register (GEMS/MEPS) could not assign to a named range. Rotomotive is an Indian maker of three-phase motors; the type codes, such as 100L-2 or 132MC-21, follow the widely used pattern of IEC frame size, construction length and pole count, with the additional digits 21/22 on the 132MC frame size distinguishing two winding variants.
Read on 3 more paragraphs
The register lists here 9 versions with 1.1 to 11 kW, two- to four-pole, at 415 V. Full-load efficiencies range from 82.49 to 90.48%, and at 75% load from 81.33 to 90.18%. Frame sizes run from 80 to 132, protection is uniformly IP54. Manufacturing is exclusively in India, testing followed AS/NZS 1359.5:2004 with test method A; none of the nine motors carries a documented High Efficiency classification. For mounting, the register covers, for all nine motors, the full spectrum from B3 through B5 to B8, B34 and B35 as well as the vertical forms V1 to V36.
The wide variety of mounting options makes these motors a flexible choice for the most varied installation positions on pumps, fans and conveying equipment; as an Indian supplier, Rotomotive competes mainly with other South Asian makers in the value-oriented segment for standard motors.
When buying used, bearing condition and a checked insulation resistance of the winding, the condition of the terminal box and fan cover, the fit and condition of the respective mounting form (foot, flange or vertical), and a legible nameplate with frame size and pole count matter. Spares are usually available through the general motor trade.
Sources: SpecCodex register, model data: Rotomotive (weitere Modelle, MEPS-Registrierungen)
Technical data
Engine
| Rated output | 1.5 kWcorrect |
|---|
Electrical data
| Rated voltage | 415 Vcorrect |
|---|---|
| Number of poles | 2correct |
| Protection class | IP54correct |
| Frame size | 80 M (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B6, B7, B8, B34, B34, B35, V1, V3, V4, V15, V18, V19, V36correct |
| Efficiency at full load | 82.93 %correct |
| Efficiency at 75 % load | 82.35 %correct |
| Efficiency at half load | 80.14 %correct |
Origin and approval
| Country of manufacture | Indiacorrect |
|---|
Other data
| Standard applied | AS/NZS 1359.5:2004correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the Rotomotive 80C-2 have?
The Rotomotive 80C-2 delivers 1.5 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
