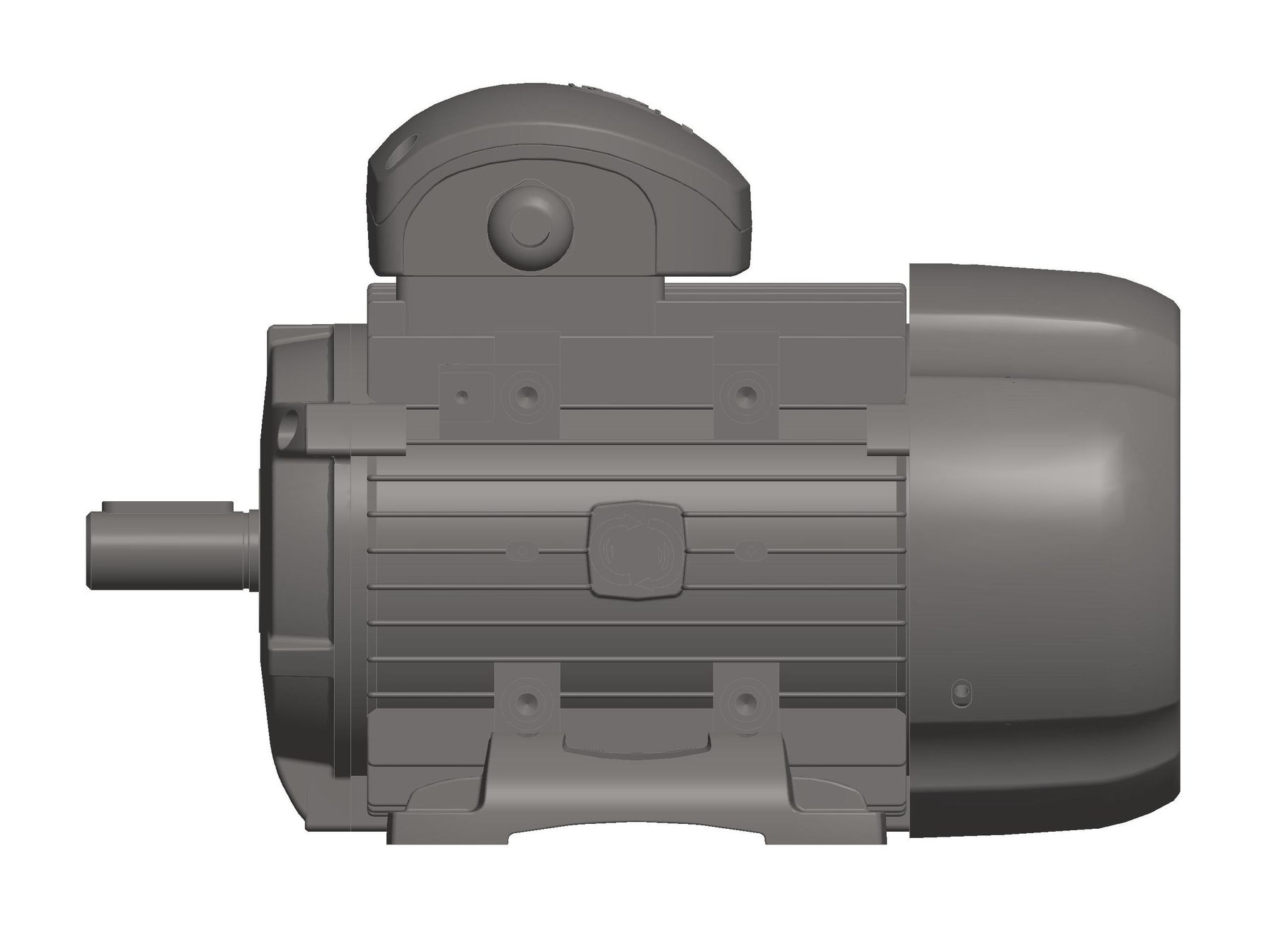

Rotomotive 100L-2

Series: Other models

Source: https://products.rotomotive.com/config/rotomotive/?FIRM=roto

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Rotomotive lists the 100L-2 as a three-phase induction motor. The rated output is 3.7 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 415 V. The housing is frame size 100 L in foot-mounted form. The protection class is IP54. The efficiency is 86.5 per cent at full load, 86.3 per cent at 75 per cent load and 85.8 per cent at half load. The motor is built in India. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Rotomotive range ranges from 1.1 to 11 kW; the 100L-2 sits in the lower part of that range with 3.7 kW. Its immediate neighbours are the 80C-2 below it with 1.5 kW and the 112MB-4 above it with 5.1 kW. 9 Rotomotive models are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Rated output3.7 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles2correct
Protection classIP54correct
Frame size100 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B6, B7, B8, B34, B34, B35, V1, V3, V4, V15, V18, V19, V36correct
Efficiency at full load86.46 %correct
Efficiency at 75 % load86.3 %correct
Efficiency at half load85.79 %correct

Origin and approval

Country of manufactureIndiacorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Rotomotive 100L-2 have?

The Rotomotive 100L-2 delivers 3.7 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
