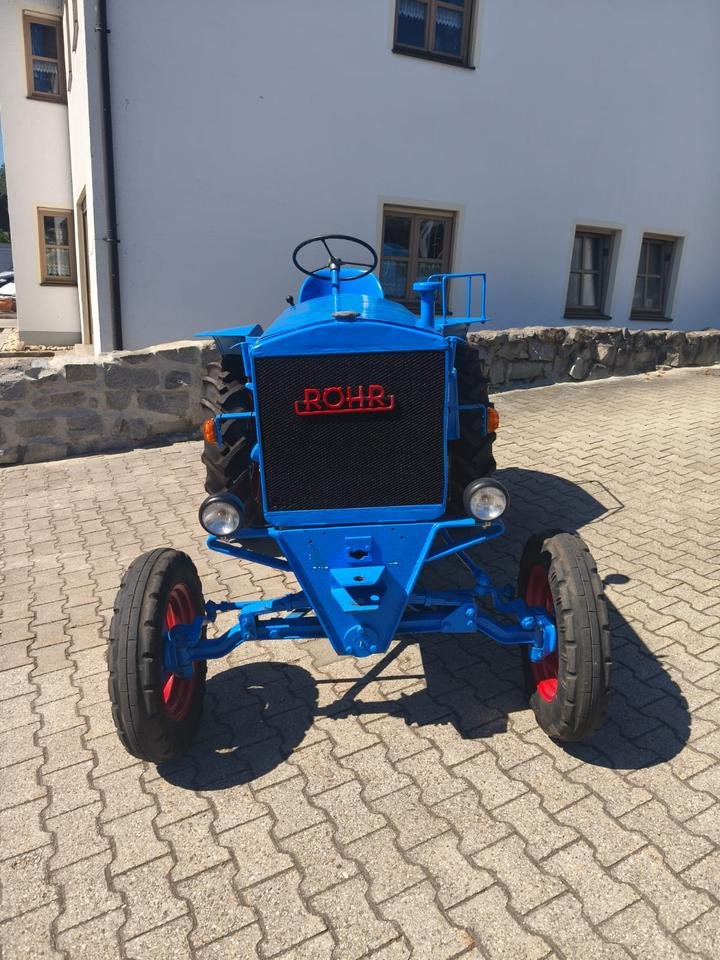

Röhr R 28
Built: 1948–1949 · Series: Other models
More machines from model year 1948
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Röhr – other models: the collective page of the West German small-tractor maker from Ober-Ramstadt, from 20 R to R 35, two- to three-cylinder diesels of 15 to 27 kW
This page gathers the Röhr tractors the register could not assign to a named range – the West German maker from Ober-Ramstadt near Darmstadt, which in the 1950s built small and medium farm tractors. The type designations 20 R, 24 RA, R 24, R 28 and R 35 combine the letter R with a number; H marks a row-crop version with a narrow track. The engines are throughout diesel units with two to three cylinders.
Read on 3 more paragraphs
The register lists here 5 versions with 14.7 to 26.5 kW from two- to three-cylinders of 1,590 to 3,534 cc, unladen weights from 1,295 to 1,890 kg, lengths from 2,480 to 3,120 mm, widths from 1,520 to 1,550 mm and heights from 1,500 to 1,700 mm at rated speeds of 1,500 to 2,000 rpm.
Röhr was one of the many smaller West German tractor makers of the post-war years that, alongside the big brands, supplied regional farming with simple, sturdy tractors; the brand did not survive the market consolidation of the 1960s.
On the rare Röhr tractors, what counts today is above all the preserved condition of the engine and bodywork, since parts are practically no longer found through regular trade; buyers check the compression and oil loss of the old diesel engines, the condition of hydraulics and brakes, and the completeness of attachments and data plate, as many machines were dismantled or rebuilt over the decades.
Sources: SpecCodex register, model data: Röhr (weitere Modelle)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 28 hp (20.6 kW)correct |
| Rated speed | 1,500 rpmcorrect |
| Torque | 150 Nmcorrect |
| Cylinders | 2correct |
| Displacement | 2,597 cm³correct |
| Stroke | 150 mmcorrect |
| Injection pressure | 120 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,750 mmcorrect |
|---|---|
| Width | 1,550 mmcorrect |
| Height | 1,650 mmcorrect |
| Wheelbase | 1,750 mmcorrect |
| Ground clearance | 300 mmcorrect |
| Unladen weight | 1,700 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 4 V/1 Rcorrect |
| Forward gears | 4correct |
| Reverse gears | 1correct |
| Front tyres | 6.00-16 ASFcorrect |
| Rear tyres | 9-24 AScorrect |
| Top speed | 20 km/hcorrect |
Working data
| Fuel tank capacity | 30 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 12.1 kW/t (21 kW / 1.7 t)
Power class: Compact (< 40 hp)
Stronger than 15% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Röhr R 28 have?
The Röhr R 28 delivers 28 hp.
How much does the Röhr R 28 weigh?
The unladen weight is 1,700 kg.
What engine does the Röhr R 28 have?
2 cylinders, 2,597 cm³ displacement, Diesel.
How fast does the Röhr R 28 go?
Top speed is 20 km/h.
What are the dimensions of the Röhr R 28?
2,750 mm × 1,550 mm × 1,650 mm.
When was the Röhr R 28 built?
Production years: 1948–1949.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
