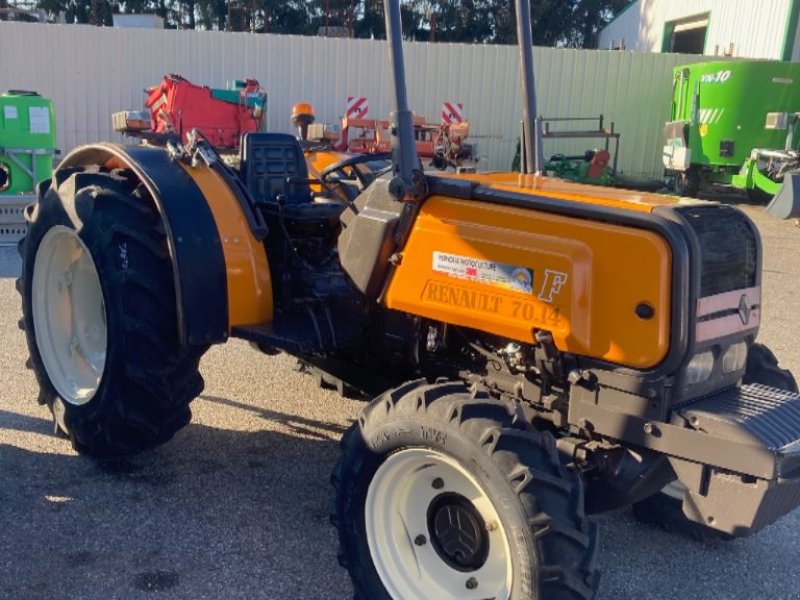

Renault 70-14 V

Built: 12/1986–9/1999 · Series: Vinyard-Baureihe

More machines from model year 1986

Source: https://www.technikboerse.com/gebraucht/traktor-357/renault-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 70-14 V, Renault offers a model from the Vinyard series. Production: 12/1986–9/1999. The engine delivers 67 hp (49.3 kW), has 4 cylinders, with a displacement of 3,770 cm³. Torque is 223 Nm. Rated speed is 2,350 rpm. The machine is 3,498 mm long, 1,115 mm wide and 2,343 mm high. The unladen weight is 2,080 kg. The wheelbase measures 2,075 mm. Ground clearance is 280 mm. Top speed is 30 km/h. The tank holds 62 litres. Transmission: 8 V/8 R or 12 V/12 R. The engine is air-cooled. Tyres: front 7.50 R 16 AS, rear 12.4 R 24 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 120 mm. The compression ratio is 17:1. Maximum torque is reached at 1,472 rpm. Construction: unit construction (no separate frame). The linkage is category I. The PTO runs at 540/1000 rpm. Around 1.023 units were built. The Vinyard-Baureihe series covers 4 models. Rated output within it ranges from 45 to 67 hp; the 70-14 V sits at the top of that range with 67 hp. Its immediate neighbours are the 55-12 V below it with 52 hp. Unladen weight within it ranges from 1,705 to 2,080 kg; here the 70-14 V sits at the top of that range with 2,080 kg. 3632 Renault models across 98 series are on record.

Renault Vinyard series: narrow-track vineyard tractors from Le Mans, four types from 32-50 V to 70-14 V, 33.1 to 49.3 kW (45 to 67 hp), widths of just 970 to 1,115 mm for work between tight vine rows

The Vinyard series denotes, for Renault Agriculture of Le Mans, the manufacturer's narrow-track vineyard tractors; the V suffix refers to the French word vigneron, meaning vine-grower. The models 32-50 V, 50-12 V, 55-12 V and 70-14 V use their first digits to state engine power in hp and the following ones the number of forward gears, as was typical for Renault tractors of this generation.

Read on 3 more paragraphs

The register lists 4 versions with 33.1 to 49.3 kW, or 45 to 67 hp, from three- to four-cylinder engines of 2,827 to 3,770cc, torque from 155 to 223 Nm at 2,350 rpm, kerb weights from 1,705 to 2,080 kg, lengths from 3,190 to 3,498 mm and narrow widths from 970 to 1,115 mm.

The Vinyard series' narrow track allowed work between the tight vine rows of French and southern European vineyards, where standard tractors would have been too wide; Renault thereby occupied the same niche as specialist vineyard tractors from Fiat, Same and Massey Ferguson. They were sold mainly in the vineyard regions of France, such as Champagne, Bordeaux and the Loire Valley.

When buying used, check the condition of the narrow tyres and axles, engine and hydraulic oil-tightness, clutch and gearbox wear, and corrosion on the chassis and mudguards; given the small production numbers of vineyard tractors, sourcing spare parts is often more involved than for standard tractors.

Sources: SpecCodex register, model data: Renault Vinyard-Baureihe

Technical data

Engine

Fuel	dieselcorrect
Power	67 hp (49.3 kW)correct
Rated speed	2,350 rpmcorrect
Torque	223 Nmcorrect
Speed at max. torque	1,472 rpmcorrect
Cylinders	4correct
Displacement	3,770 cm³correct
Bore	100 mmcorrect
Stroke	120 mmcorrect
Compression ratio	17correct
Cooling	air-cooledcorrect

Dimensions and weights

Length	3,498 mmcorrect
Width	1,115 mmcorrect
Height	2,343 mmcorrect
Wheelbase	2,075 mmcorrect
Ground clearance	280 mmcorrect
Unladen weight	2,080 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	8 V/8 R or 12 V/12 Rcorrect
Front tyres	7.50 R 16 AScorrect
Rear tyres	12.4 R 24 AScorrect
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	62 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct
Units built	1,023correct

Other data

Linkage category	Cat Icorrect
PTO speed	540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 23.7 kW/t (49 kW / 2.1 t)

Power class: Universal (40–100 hp)

Stronger than 46% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Renault 70-14 V have?

The Renault 70-14 V delivers 67 hp.

How much does the Renault 70-14 V weigh?

The unladen weight is 2,080 kg.

What engine does the Renault 70-14 V have?

4 cylinders, 3,770 cm³ displacement, Diesel.

How fast does the Renault 70-14 V go?

Top speed is 30 km/h.

What are the dimensions of the Renault 70-14 V?

3,498 mm × 1,115 mm × 2,343 mm.

When was the Renault 70-14 V built?

Production years: 12/1986–9/1999.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
