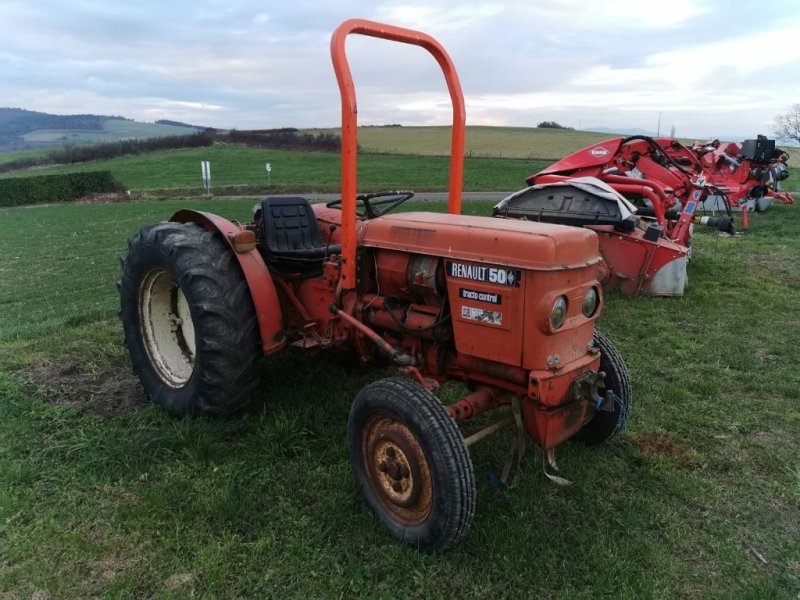

Renault 50-12 V

Built: 12/1986–10/1993 · Series: Vinyard-Baureihe

More machines from model year 1986

Source: https://www.technikboerse.at/gebraucht/traktor-357/renault-9

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Renault 50-12 V is a model in the Vinyard series. Production: 12/1986–10/1993. The engine delivers 45 hp (33.1 kW), has 3 cylinders, with a displacement of 2,827 cm³. Torque is 160 Nm. Rated speed is 2,350 rpm. The machine is 3,265 mm long, 1,084 mm wide and 2,318 mm high. The unladen weight is 1,775 kg. The wheelbase measures 1,980 mm. Ground clearance is 275 mm. Top speed is 30 km/h. The tank holds 62 litres. Transmission: 8 V/8 R. The engine is air-cooled. Tyres: front 5.50 R 16 ASF, rear 11.2 R 28 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 120 mm. The compression ratio is 17:1. Maximum torque is reached at 1,568 rpm. Construction: unit construction (no separate frame). The gearbox offers 8 forward gears. There are also 8 reverse gears. The linkage is category I. The PTO runs at 540/1000 rpm. Around 241 units were built. The Vinyard-Baureihe series covers 4 models. Rated output within it ranges from 45 to 67 hp; the 50-12 V sits at the bottom of that range with 45 hp. Its immediate neighbours are the 32-50 V above it with 48 hp. Unladen weight within it ranges from 1,705 to 2,080 kg; here the 50-12 V sits in the lower part of that range with 1,775 kg. 3632 Renault models across 98 series are on record.

Renault Vinyard series: narrow-track vineyard tractors from Le Mans, four types from 32-50 V to 70-14 V, 33.1 to 49.3 kW (45 to 67 hp), widths of just 970 to 1,115 mm for work between tight vine rows

The Vinyard series denotes, for Renault Agriculture of Le Mans, the manufacturer's narrow-track vineyard tractors; the V suffix refers to the French word vigneron, meaning vine-grower. The models 32-50 V, 50-12 V, 55-12 V and 70-14 V use their first digits to state engine power in hp and the following ones the number of forward gears, as was typical for Renault tractors of this generation.

Read on 3 more paragraphs

The register lists 4 versions with 33.1 to 49.3 kW, or 45 to 67 hp, from three- to four-cylinder engines of 2,827 to 3,770cc, torque from 155 to 223 Nm at 2,350 rpm, kerb weights from 1,705 to 2,080 kg, lengths from 3,190 to 3,498 mm and narrow widths from 970 to 1,115 mm.

The Vinyard series' narrow track allowed work between the tight vine rows of French and southern European vineyards, where standard tractors would have been too wide; Renault thereby occupied the same niche as specialist vineyard tractors from Fiat, Same and Massey Ferguson. They were sold mainly in the vineyard regions of France, such as Champagne, Bordeaux and the Loire Valley.

When buying used, check the condition of the narrow tyres and axles, engine and hydraulic oil-tightness, clutch and gearbox wear, and corrosion on the chassis and mudguards; given the small production numbers of vineyard tractors, sourcing spare parts is often more involved than for standard tractors.

Sources: SpecCodex register, model data: Renault Vinyard-Baureihe

Technical data

Engine

Fuel	dieselcorrect
Power	45 hp (33.1 kW)correct
Rated speed	2,350 rpmcorrect
Torque	160 Nmcorrect
Speed at max. torque	1,568 rpmcorrect
Cylinders	3correct
Displacement	2,827 cm³correct
Bore	100 mmcorrect
Stroke	120 mmcorrect
Compression ratio	17correct
Cooling	air-cooledcorrect

Dimensions and weights

Length	3,265 mmcorrect
Width	1,084 mmcorrect
Height	2,318 mmcorrect
Wheelbase	1,980 mmcorrect
Ground clearance	275 mmcorrect
Unladen weight	1,775 kgcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	8 V/8 Rcorrect
Forward gears	8correct
Reverse gears	8correct
Front tyres	5.50 R 16 ASFcorrect
Rear tyres	11.2 R 28 AScorrect
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	62 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct
Units built	241correct

Other data

Linkage category	Cat Icorrect
PTO speed	540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 18.6 kW/t (33 kW / 1.8 t)

Power class: Universal (40–100 hp)

Stronger than 29% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Renault 50-12 V have?

The Renault 50-12 V delivers 45 hp.

How much does the Renault 50-12 V weigh?

The unladen weight is 1,775 kg.

What engine does the Renault 50-12 V have?

3 cylinders, 2,827 cm³ displacement, Diesel.

How fast does the Renault 50-12 V go?

Top speed is 30 km/h.

What are the dimensions of the Renault 50-12 V?

3,265 mm × 1,084 mm × 2,318 mm.

When was the Renault 50-12 V built?

Production years: 12/1986–10/1993.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
